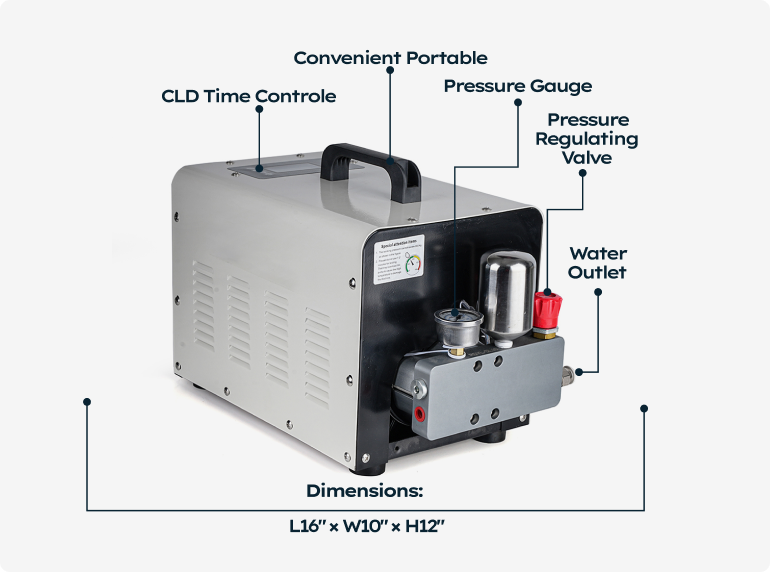

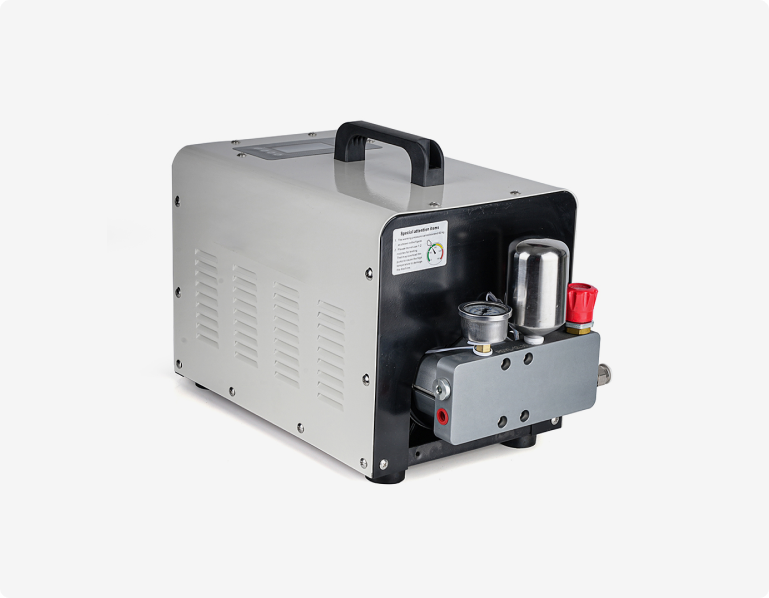

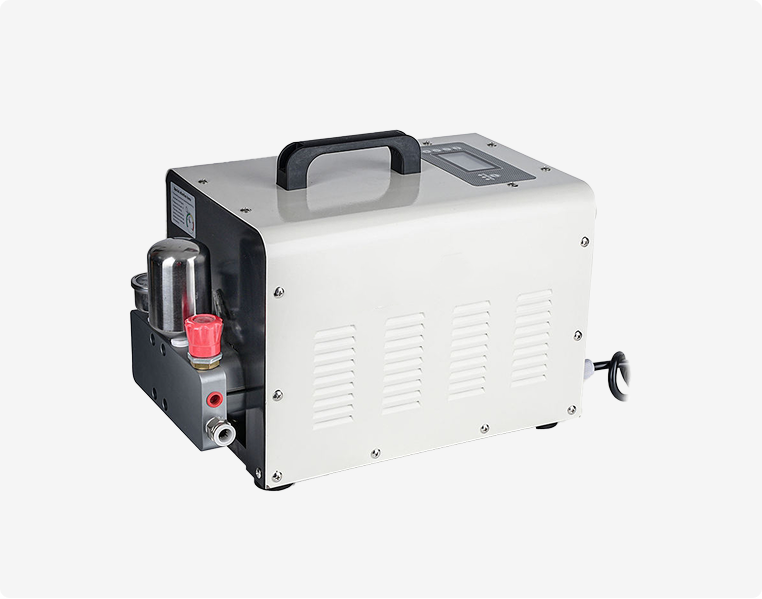

BreezeTech HydroNova High-Pressure Misting Pump

Commercial 1,000 PSI Continuous Duty Output, Industrial Triplex Plunger Engineering, Integrated Solenoid & Dual Filtration Module, Ultimate Core Powerplant for Large-Scale Outdoor Climate Controls

Drive your commercial outdoor cooling layout, expansive patio canopy, or multi-zone agricultural mist matrix with the elite power of the BreezeTech HydroNova High-Pressure Misting Pump. Masterfully engineered as a commercial-grade continuous duty powerhouse, this heavy-duty mechanical core produces a steady 1,000 PSI atomization line threshold. This high operating pressure forces water through specialized micro-orifice nozzles to create true flash evaporation—rapidly cooling surrounding open-air zones by up to 30°F (16.6°C) without leaving behind messy puddles or damp structural condensation.

The mechanical backbone of the HydroNova system relies on a precision-balanced industrial-grade triplex plunger pump paired with a totally enclosed fan-cooled (TEFC) premium electric motor. Built to handle long runtime cycles during intense summer heatwaves, this assembly features advanced, automated safety and water-management elements. With an integrated low-pressure inlet solenoid to prevent dry-fire damage and an attached dual-stage particulate filtration array, the HydroNova delivers clean, highly pressurized water to safeguard your downstream misting lines from clogging or stuttering.

Key Product Features & Core Engineering

• True 1,000 PSI Commercial Output: Generates intense water atomization line pressure, producing an ultra-fine, microscopic mist canopy that flash-evaporates instantly in warm air.

• Heavy-Duty Industrial Triplex Pump: Outfitted with a premium brass manifold and ceramic plunger rods, reducing friction, running cooler, and extending operational life compared to axial pumps.

• TEFC Premium Electric Motor: Powered by a totally enclosed fan-cooled (TEFC) motor casing that shields core electrical windings from outdoor moisture, dust, and poolside splash zones.

• Integrated Inlet Solenoid Automation: Features an automated electronic safety valve that opens water flow only when the pump is running, completely preventing downstream line leaks, nozzle pooling, or dry-fire pump damage.

• Dual-Stage Scale Filtration Core: Built with a stacked 5-micron sediment filter module that traps scale, rust, and particulates before they enter the pump head, protecting precision nozzles from clogging.

• Vibration-Dampening Steel Base: Mounted on a thick, industrial steel base plate with heavy-duty rubber leveling feet to absorb motor resonance and keep operation exceptionally quiet.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × BreezeTech HydroNova 1,000 PSI Commercial Misting Pump Assembly

• 2 × Pre-Installed 5-Micron Scale Prevention Water Filter Cartridges

• 1 × Heavy-Duty Female Garden Hose Water Inlet Adapter Kit

• 1 × High-Pressure Oil Fill Crankcase Breather Cap Accessory

• 1 × Master Step-by-Step Electrical Connection, Priming, and Winterization Manual

Critical Field Installation & Maintenance Guidelines

• Mandatory Initial Crankcase Oil Check: Before flipping the power switch on your new pump for the first time, verify the crankcase is filled with high-grade pump oil using the integrated rear sight gauge. Running the triplex plungers dry without proper oil lubrication will cause immediate friction lock and permanently damage your pump manifold.

• Proper Ventilation Placement Rule: Due to the physical mass and high operating temperatures of its 1.5 HP electric motor, mount the HydroNova pump in a well-ventilated, shaded utility closet or sheltered outdoor structure. Protecting the pump housing from pooling water and direct sunlight prevents thermal overload cycles.

• End-of-Season Mechanical Winterization: In regions prone to freezing winter temperatures, disconnect the main water supply line, pull the filtration cartridges, and use compressed air to thoroughly blow out all residual moisture from the brass pump head. This critical step protects internal check valves from cracking due to ice expansion.
