BreezeTech LiquidShade Misting LEAF | 6 Nozzles - TMS
Choose options
High-Pressure Architectural Outdoor Cooling Pole, Freestanding Sinuous Leaf Silhouette, Premium Stainless Steel Micro-Orifice Mist Array, Commercial-Grade Backyard Temperature Mitigation Feature

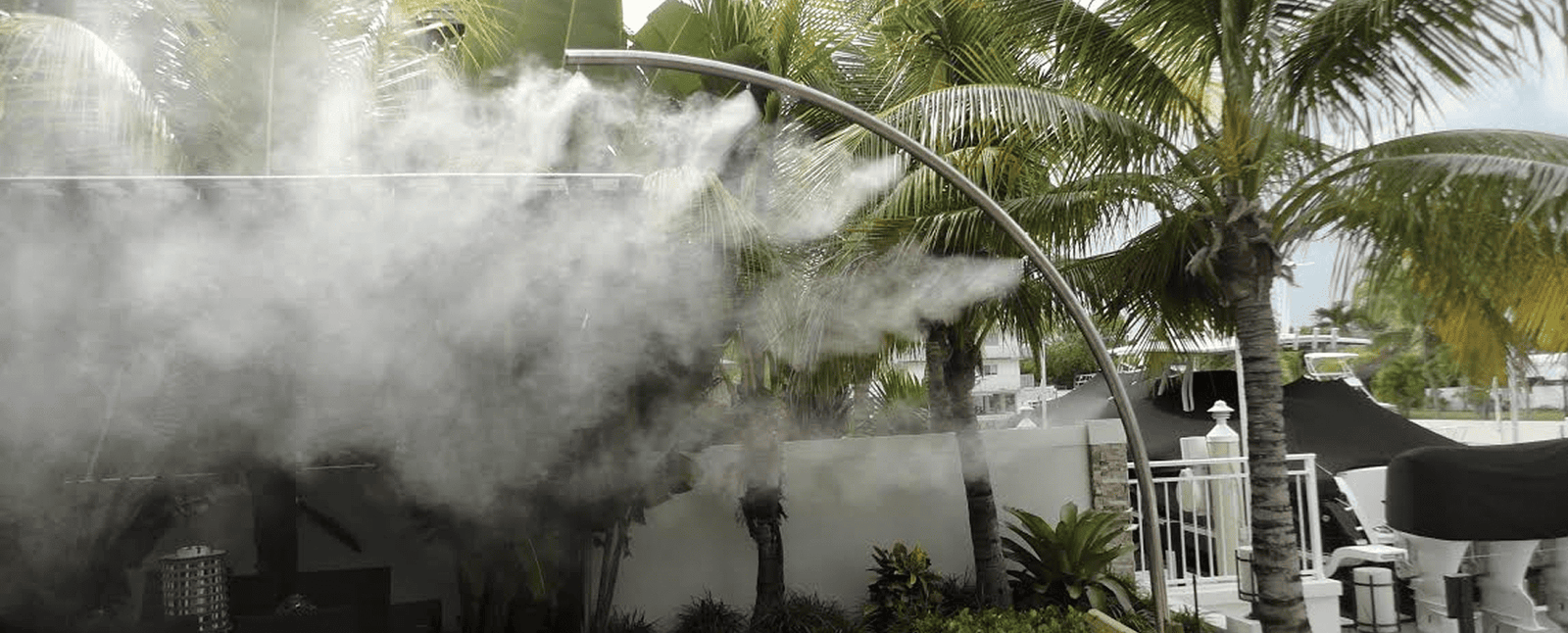

Introduce an exquisite blending of sculptured architectural art and high-performance climate control to your poolside deck, sun-drenched patio, luxury resort lounge, or outdoor dining terrace with the BreezeTech LiquidShade Misting LEAF (6-Nozzle Configuration). Masterfully engineered to break free from traditional overhead structural lines, this premium freestanding cooling feature curves over active lounge zones like a stylized botanical element. Powered by high-pressure fluid atomization up to 1,200 psi, it lowers surrounding ambient outdoor temperatures by up to 30°F (16.6°C) through flash evaporation, absorbing extreme summer heat without leaving damp residue on patio tiles, furniture, or guests.

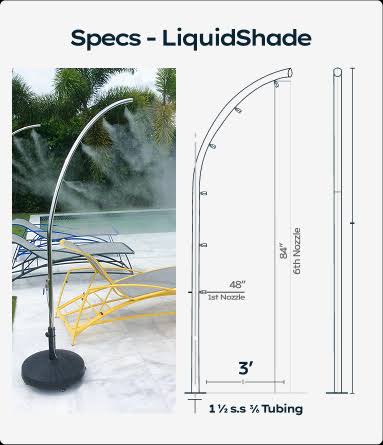

The structural masterpiece features a 1.5-inch heavy-wall polished stainless steel frame that arches gracefully to form a sinuous silhouette, climbing from a wind-resistant base housing to an apex height of 84 inches. Arranged systematically along its overarching canopy are 6 precision-machined, anti-drip misting ports utilizing flexible 3/8-inch internal fluid piping. Its elegant organic form serves as a stunning visual accent on any modern pool deck while delivering targeted, refreshing cooling.
Key Product Features & Core Engineering
-

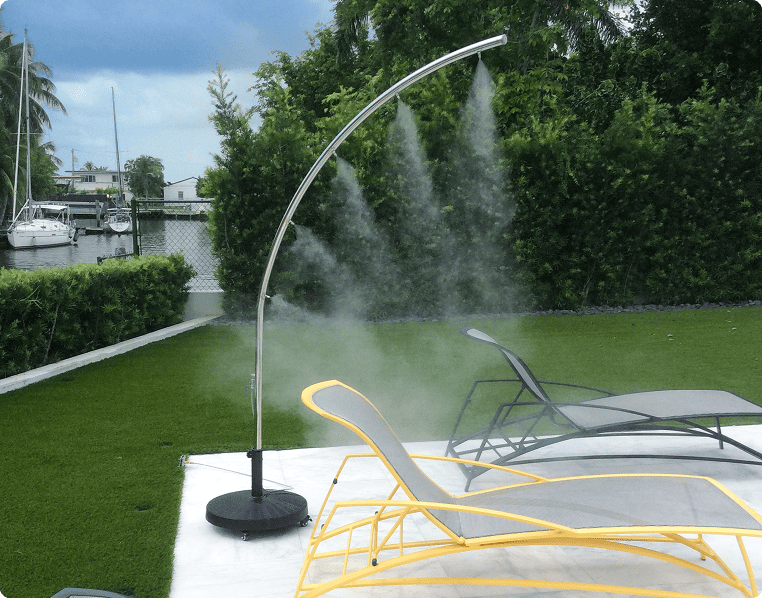

Freestanding Botanical Cooling Feature: Elegant leaf-inspired design serves as a standalone micro-climate fixture, casting a targeted canopy of refreshing vapor over poolside chaise lounges.
-
True Flash Evaporative Atomization: Built to support high operating line pressures up to 1,200 psi, breaking water down into micro-droplets that flash-evaporate to absorb environmental heat.
-

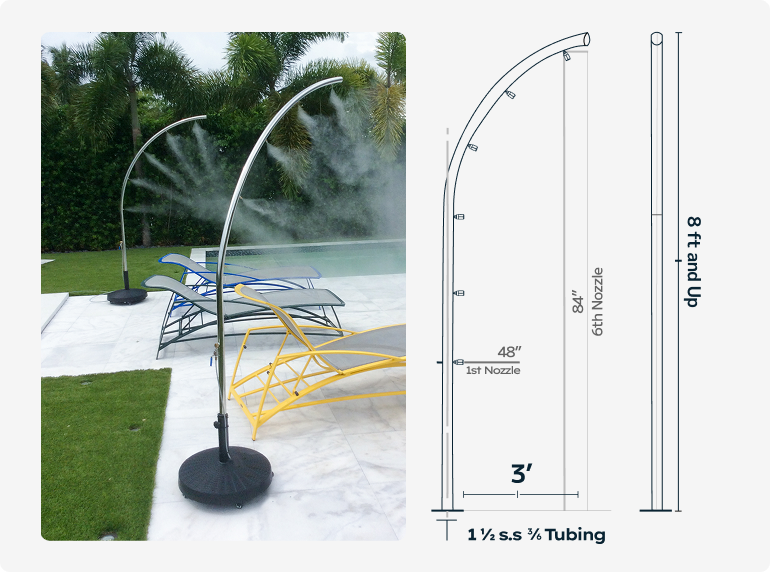

Overarching 6-Nozzle Precision Array: Organizes 6 micro-orifice nozzles strategically from a height of 48 inches up to an 84-inch apex, creating a uniform curtain of cooling vapor.
-
Premium Anti-Drip Ceramic Core Nozzles: Outfitted with high-grade stainless steel nozzles utilizing internal check valves and ceramic orifices, preventing messy puddle formation or low-pressure dripping when cycling off.
-
Polished 1.5″ Stainless Steel Chassis: Crafted using heavy-wall marine-grade stainless steel tubing, providing absolute protection against pool chlorine splashes, saltwater corrosion, and high UV yellowing.
-
High-Mass Weighted Base Plate Stability: Anchored by a heavy, low-profile mechanical base structure that prevents tilting or wind-drift during seasonal patio storms or pool foot traffic.
Technical Specifications Summary
Comprehensive Product Packaging List
-
1 × BreezeTech LiquidShade 1.5″ Polished Stainless Steel Curved Arch Frame (2-Piece Slot Lock)
-
1 × High-Mass Heavy-Duty Weighted Floor Base Stabilization Plate
-
6 × Premium Ceramic-Core High-Pressure Anti-Drip Misting Nozzles
-
1 × Pre-Wired Internal 3/8″ Fluid Core Tube Network Assembly
-
1 × Quick-Connect Inlet Adapter Hub for High-Pressure Pump Lines
-
1 × Master Step-by-Step Frame Assembly, Anchoring, and Winterization Manual
Critical Field Installation & Maintenance Guidelines
-
Dedicated High-Pressure Pump Source Requirement: The LiquidShade Misting LEAF is strictly designed for high-pressure misting loops (operating optimally between 250 psi and 1,200 psi). Do not connect this fixture directly to a standard household garden hose or low-pressure outdoor spigot, as low water pressure will cause the nozzles to sputter, drip, and fail to atomize.
-
Strategic Wind-Directional Placement: To maximize your cooling efficiency, position the freestanding Misting LEAF upwind from your primary pool lounge chairs. This allows natural afternoon cross-breezes to carry the ultra-fine cooling vapor directly across your tanning zone.
-
Nozzle Scaling Prophylaxis Maintenance: Because the precision nozzle orifices are vulnerable to mineral blockage from hard water supply sources, unscrew the 6 nozzles periodically and soak them in a mild scale-remover solution or white vinegar to dissolve calcium deposits and ensure a crisp, uniform mist pattern.
