BreezeTech PoleShade Series | 6 Nozzles - TMS

High-Pressure Architectural Outdoor Cooling Tower, Freestanding Linear Stainless Steel Design, Premium Anti-Drip Micro-Orifice Mist Nodes, Heavy-Duty Multi-Zone Outdoor Thermal Mitigation Appliance

Introduce a highly efficient, space-saving column of micro-climate relief to your boutique pool deck, luxury resort lounge, open-air restaurant terrace, or upscale backyard patio with the BreezeTech PoleShade Series (6-Nozzle Configuration). Expertly engineered to bypass the need for overhead pergolas, structural eaves, or wall installations, this premium freestanding cooling tower rises vertically to cast a broad, refreshing vapor curtain exactly where it is needed. Powered by high-pressure fluid atomization up to 1,200 psi, it lowers surrounding ambient outdoor temperatures by up to 30°F (16.6°C) through flash evaporation, absorbing intense summer heat without leaving damp residue on your outdoor furniture, textiles, or guests.

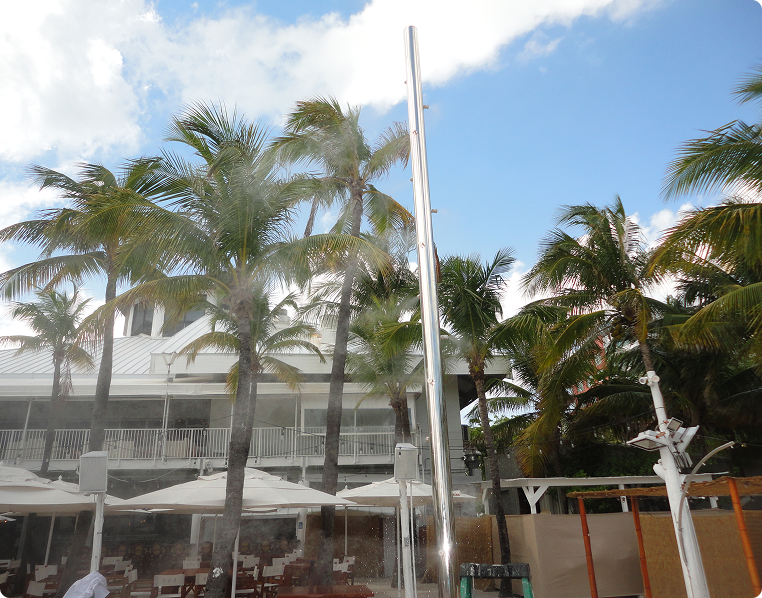

The structural backbone features a sleek, minimal 316 marine-grade polished stainless steel pole that anchors firmly via a heavy-duty, reinforced floor flange base. Arranged linearly along its vertical length from 4 feet up to its towering peak are 6 precision-machined, anti-drip misting nodes fed by internal, weather-sealed high-pressure fluid piping. Its ultra-slim profile serves as an elegant architectural element that seamlessly blends into contemporary hardscapes while delivering maximum perimeter cooling.

Key Product Features & Core Engineering

• Freestanding Vertical Cooling Tower: Slim, linear design functions as a standalone micro-climate column, creating an immediate perimeter zone of refreshing cooling vapor along paths and seating areas.

• True Flash Evaporative Atomization: Tailored to handle intense operating pressures up to 1,200 psi, fracturing water down into microscopic droplets that flash-evaporate the moment they mix with hot air.

• Linear 6-Nozzle Precision Array: Systematically organizes 6 micro-orifice nozzles at staggered vertical intervals up to a maximum height of 108 inches (9 feet) to produce a unified vertical cooling curtain.

• Anti-Drip Ceramic Core Nozzles: Outfitted with premium stainless steel nozzles utilizing internal check valves and ceramic orifices, preventing messy puddle formation or low-pressure dripping when cycling off.

• Marine-Grade 316 Stainless Steel Shell: Constructed with a heavy-wall polished steel chassis that provides absolute protection against pool chlorine splashes, direct saltwater air, and intense UV yellowing.

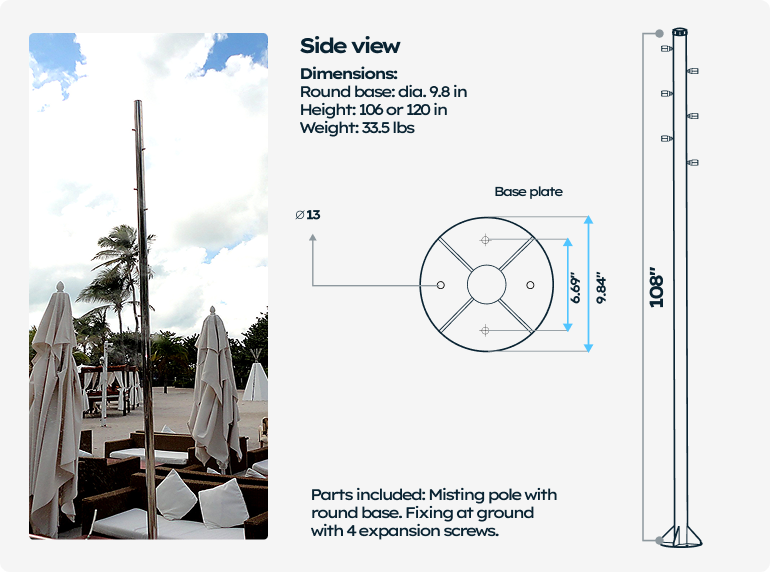

• Bolt-Down Structural Flange Base: Engineered with a heavy, integrated round base plate pre-drilled for 4 expansion anchors, ensuring maximum wind-resistance and vertical stability on concrete decks or stone pavers.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × BreezeTech PoleShade 316 Polished Stainless Steel Vertical Misting Tower (9-Foot Single Column)

• 1 × Integrated Round Base Mounting Flange Plate

• 4 × Heavy-Duty Masonry Expansion Structural Anchor Bolts

• 6 × Premium Ceramic-Core High-Pressure Anti-Drip Misting Nozzles

• 1 × Pre-Wired Internal Fluid Core Tube Network Assembly with Quick-Connect Inlet

• 1 × Master Step-by-Step Deck Anchoring, Line Flushing, and Winterization Manual

Critical Field Installation & Maintenance Guidelines

• Dedicated High-Pressure Pump Source Requirement: The PoleShade Series tower is strictly designed for high-pressure misting loops (operating optimally between 250 psi and 1,200 psi). Do not connect this fixture directly to a standard household garden hose or low-pressure outdoor spigot, as low water pressure will cause the nozzles to sputter, drip, and fail to atomize.

• Rigid Masonry Deck Anchoring Mandate: Because of its tall 9-foot vertical leverage profile and the potential for high winds, the base plate must be securely bolted down to a concrete pad, structurally reinforced deck, or concrete stone paver using the provided expansion bolts. Avoid placing it loosely on soil, sand, or uneven lawn turf.

• Nozzle Scaling Prophylaxis Maintenance: Because the precision nozzle orifices are vulnerable to mineral blockage from hard water supply sources, unscrew the 6 nozzles periodically and soak them in a mild scale-remover solution or white vinegar to dissolve calcium deposits and ensure a crisp, uniform mist pattern.
