BreezeTech Stream-Master Commercial Misting Pump | 0.5 GPM Open-Frame - TMS

Industrial 1,000 PSI Continuous Duty Output, Heavy-Duty Triplex Ceramic Plunger Engineering, Integrated Automation Solenoid & Scale Prevention Filter, High-Capacity Powerplant for Up to 40 Nozzles

Drive your commercial patio cooling canopy, resort pool deck array, restaurant dining layout, or warehouse micro-climate loops with the exceptional power of the BreezeTech Stream-Master Commercial Misting Pump. Masterfully engineered as an industrial-grade continuous duty powerhouse, this heavy-duty mechanical core produces a steady operational threshold of 1,000 PSI atomization line pressure. This intense fluid compression forces water through specialized micro-orifice nozzles to achieve true flash evaporation—rapidly dropping surrounding ambient outdoor temperatures by up to 30°F (16.6°C) without creating messy puddles or leaving behind damp structural condensation.

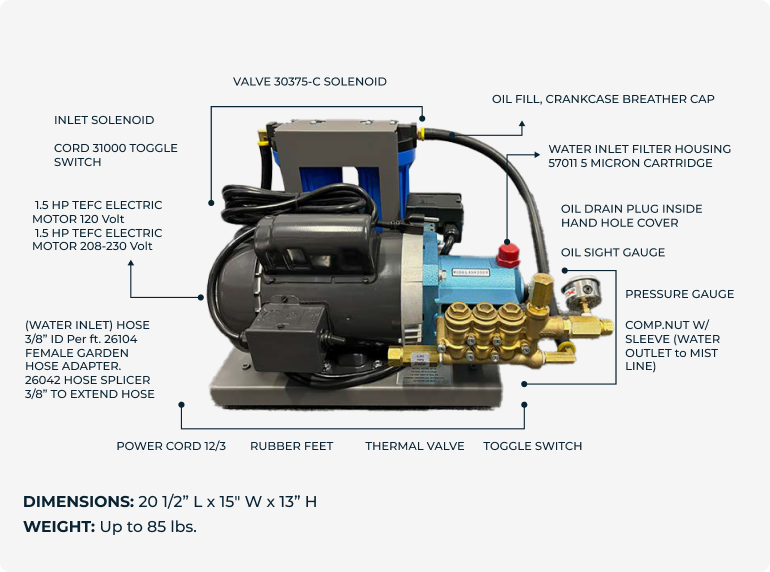

BreezeTech Stream-Master Industrial 1,000 PSI Misting Pump Engineering Layout & Components. Source: BreezeTech

The mechanical backbone of the Stream-Master system relies on an open-frame layout hosting a precision-balanced industrial-grade triplex plunger pump driven by a totally enclosed fan-cooled (TEFC) premium electric motor. Built to handle grueling runtime cycles during peak seasonal heatwaves, this 0.5 GPM powerplant integrates robust, automated fluid management safeties. With a built-in low-pressure inlet solenoid to block downstream water leaks and an attached high-capacity scale prevention filtration cartridge, it ensures a constant flow of purified, high-pressure water to protect your downstream nozzles from premature clogging.

Key Product Features & Core Engineering

• True 1,000 PSI Commercial Output: Generates intense water atomization line pressure up to 1,000 PSI, fracturing fluid into microscopic droplets that flash-evaporate the instant they mix with hot ambient air.

• Heavy-Duty Industrial Triplex Pump: Outfitted with a premium forged brass manifold block and solid ceramic plunger rods, running dramatically cooler and wearing slower than consumer-grade axial pumps.

• TEFC Premium Electric Motor: Powered by a 1.5 HP totally enclosed fan-cooled (TEFC) motor casing that shields core electrical windings from outdoor humidity, dust, and poolside splash zones.

• Integrated Valve Solenoid Automation: Features an automated electronic inlet solenoid that opens water flow only when the pump is powered, completely stopping low-pressure line weeping or nozzle pooling.

• 5-Micron Scale Prevention Filter: Built-in high-capacity filter housing traps sediment, scale, and rust particulates down to 5 microns before they can reach the pump head, protecting downstream precision nozzle orifices.

• Open-Frame Serviceability Layout: Rigid structural steel base features a low-vibration profile with thick rubber leveling feet, providing immediate access to the oil fill dipstick, sight gauge, and manifold unloader for quick maintenance.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × BreezeTech Stream-Master 1,000 PSI 0.5 GPM Open-Frame Misting Pump Assembly

• 1 × Pre-Installed 5-Micron Particulate & Scale Prevention Filter Cartridge

• 1 × Heavy-Duty Female Garden Hose Water Inlet Adapter Coupling

• 1 × High-Pressure Crankcase Oil Fill Breather Cap Accessory

• 1 × Master Step-by-Step Electrical Connection, Priming, and Winterization Manual

Critical Field Installation & Maintenance Guidelines

• Mandatory Initial Crankcase Oil Check: Before flipping the power switch on your new pump for the first time, verify the crankcase is filled with high-grade pump oil using the integrated rear sight window. Running the triplex plungers dry without proper oil lubrication will cause immediate friction lock and permanently damage your pump manifold.

• Proper Ventilation Placement Rule: Due to the physical mass and heat generated by its 1.5 HP electric motor, mount the Stream-Master pump in a well-ventilated, shaded utility closet or sheltered outdoor structure. Protecting the open-frame chassis from pooling water and direct sunlight prevents thermal overload cycles.

• End-of-Season Mechanical Winterization: In regions prone to freezing winter temperatures, disconnect the main water supply line, pull the filtration cartridge, and use compressed air to thoroughly blow out all residual moisture from the brass pump head. This critical maintenance step protects internal check valves from cracking due to ice expansion.
