BreezeTech SunSeekers Double Shade | Stainless - TMS

High-Pressure Architectural Misting Umbrella System, Dual-Canopy Premium Sunbrella Geometry, 316 Marine-Grade Structural Steel Mast, Integrated Precision Micro-Orifice Anti-Drip Cooling Matrix

Elevate your luxury resort pool deck, open-air VIP dining terrace, luxury beach club, or high-end backyard patio hardscape into an exclusive sanctuary of cool comfort with the BreezeTech SunSeekers Double Shade (Stainless - TMS Configuration). Masterfully engineered to replace traditional static shade structures, this premium dual-canopy cooling architectural fixture marries advanced physical sun protection with high-performance misting technology. Powered by high-pressure fluid atomization up to 1,200 psi, it drops surrounding ambient outdoor temperatures by up to 30°F (16.6°C) through flash evaporation, capturing scorching summer heat without leaving damp residue on textiles, cushions, or lounging guests.

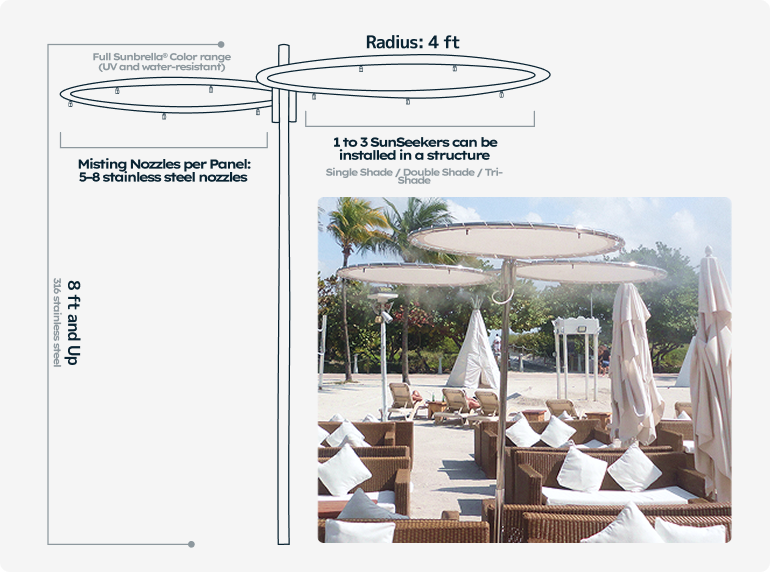

The mechanical centerpiece features a heavy-duty, polished 316 marine-grade stainless steel vertical mast rising 8 feet and up to support a pair of balanced, geometric canopy frames. Each circular panel spans a 4-foot radius and is upholstered in genuine weather-resistant, UV-blocking Sunbrella® performance fabric. Pre-wired internally through the hollow steel chassis is a high-pressure fluid network feeding 5 to 8 precision stainless steel anti-drip misting nozzles per panel, projecting a seamless curtain of refreshing, microscopic cooling vapor down onto active seating lounges.

Key Product Features & Core Engineering

• Dual-Canopy Architectural Cool Oasis: Coordinates a twin geometric panel layout from a single central mast, expanding active shaded seating areas while dropping micro-climate temperatures.

• True Flash Evaporative Atomization: Engineered to handle high operating line pressures up to 1,200 psi, breaking water down into micro-droplets that flash-evaporate to absorb environmental heat.

• Integrated Internal Porting (5-8 Nozzles per Panel): Features pre-bored, low-profile nozzle connections situated systematically along each umbrella ring, creating a uniform, downward cooling perimeter.

• Premium Sunbrella All-Weather Canvas: Fully upholstered in marine-grade Sunbrella fabric that resists water intrusion, mold growth, fading, and intense UV degradation.

• 316 Marine-Grade Stainless Steel Mast: Constructed with heavy-wall 316 stainless steel tubing, providing absolute protection against pool chlorination splashes, direct saltwater air, and structural flexing.

• Anti-Drip Ceramic Core Nozzles: Outfitted with high-grade stainless steel nozzles utilizing internal check valves and ceramic orifices, preventing messy puddle formation or low-pressure dripping when cycling off.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × BreezeTech SunSeekers 316 Stainless Steel Twin-Arm Central Structural Mast

• 2 × Premium Precision Circular Canopy Rings Pre-Stretched with Sunbrella Fabric

• 1 × Pre-Wired Internal High-Pressure Fluid Feed Core Tubing Network System

• 10–16 × Premium Ceramic-Core High-Pressure Anti-Drip Misting Nozzles (Based on Density Select)

• 1 × Heavy-Duty Bolt-Down Structural Flange Deck Anchor Plate Mount

• 1 × Master Step-by-Step Rigging Assembly, Deck Anchoring, and Line Flushing Manual

Critical Field Installation & Maintenance Guidelines

• Dedicated High-Pressure Pump Source Requirement: The SunSeekers Double Shade integrated cooling lines are strictly designed for high-pressure misting loops (operating optimally between 250 psi and 1,200 psi). Do not connect this fixture directly to a standard household garden hose or low-pressure outdoor spigot, as low water pressure will cause the nozzles to sputter, drip, and fail to atomize.

• Rigid Structural Sub-Base Bolt Anchoring Mandate: Because of its large overhead double-canopy wing area and wind catching properties, the vertical central mast must be securely bolted down to a concrete pad or reinforced pool deck using heavy masonry anchors. Close canopies during sudden high-velocity storm conditions or high winds to avoid stress fractures.

• Nozzle Scaling Prophylaxis Maintenance: Because the precision nozzle orifices are vulnerable to mineral blockage from hard water supply sources, unscrew the nozzles periodically from the canopy rings and soak them in a mild scale-remover solution or white vinegar to dissolve calcium deposits and ensure a crisp, uniform mist pattern.
