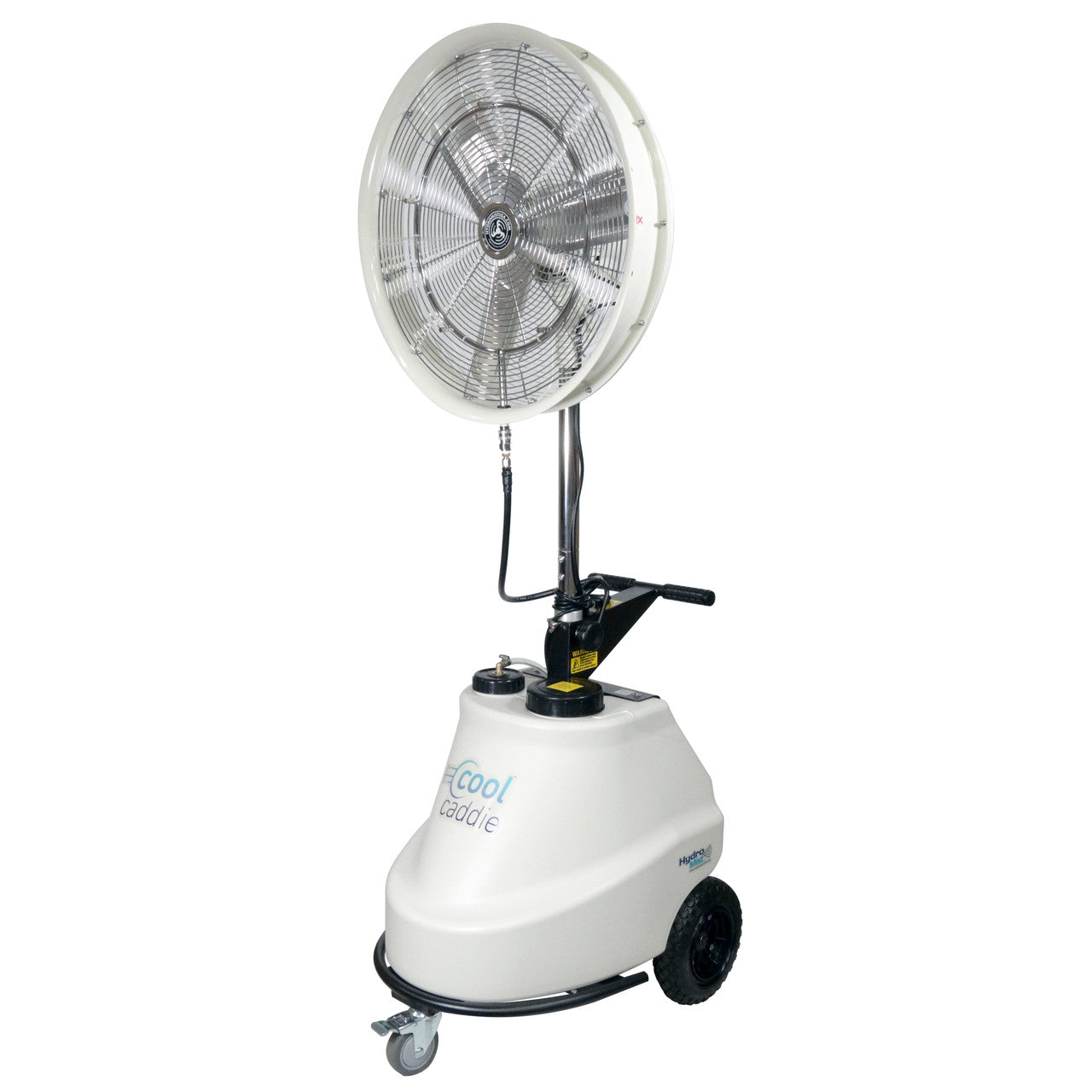

HydroMist USA Cool Caddie Self-Contained Portable 1000 PSI Misting Fan - 24" Fan Head Model

24-Inch High-Output Variable-Speed Oscillating Heavy-Duty Fan Head, 1000 PSI High-Pressure Built-In Pump, 4-Mode Timed Misting Logic, Premium Enterprise Mobile Cooling Station

Deliver massive atmospheric temperature suppression, smoke suppression, and dust control over sprawling open spaces with the HydroMist USA Cool Caddie Self-Contained Portable 1000 PSI Misting Fan - 24" Fan Head Model. Masterfully engineered as an architectural all-in-one mobile powerhouse for expansive commercial restaurant patios, wedding pavilions, large hotel pool decks, athletic sidelines, and high-traffic industrial manufacturing bays, this freestanding cooling station features an integrated 15.85-gallon (16 Gal nominal) water storage reservoir. At its structural core is a robust, ultra-quiet 1000 PSI high-pressure misting pump that completely eliminates the need for trailing water lines, making it a clean, trip-free portable cooling solution for high-capacity applications.

By combining heavy-duty compression force with an upgraded 24-inch high-output oscillating and tilting fan head, the Cool Caddie atomizes water through 5 stainless steel drip-free nozzles into an ultra-fine micro-mist. This mist flash-evaporates instantly into the air current—dropping ambient outdoor temperatures by up to 25°F over a large 450 sq. ft. coverage zone without leaving damp residue on floors, upholstery, or surrounding electronics. Housed in a rugged, TIG-welded alloy steel frame with heavy-duty transport wheels, this commercial-grade cooling system is outdoor-rated to remain perfectly functional in open configurations, rain or shine.

Key Product Features & Core Engineering

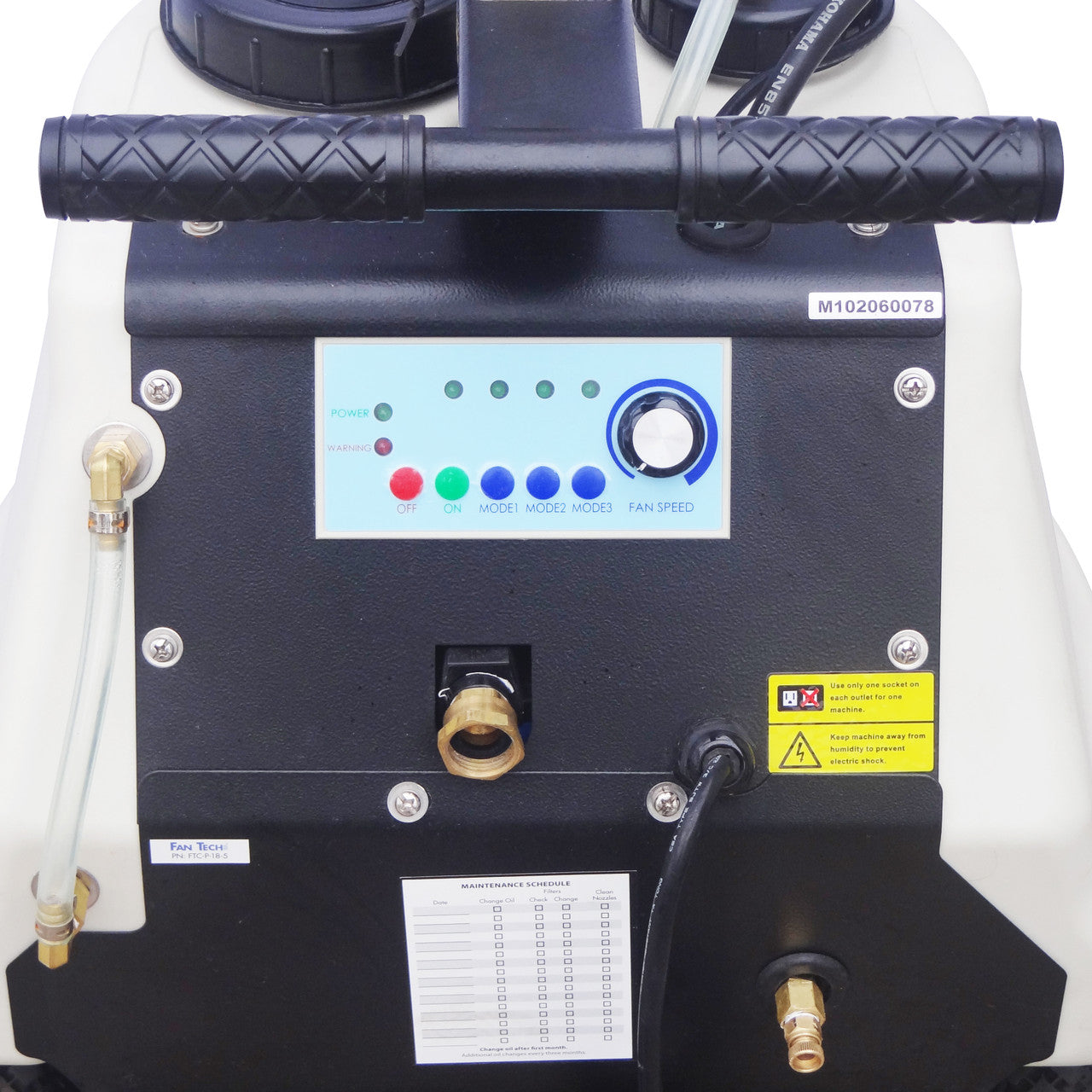

• Self-Contained 16-Gallon Fluid Mobility: Outfitted with a heavy-duty, integrated 15.85-gallon water reservoir providing hours of continuous misting away from a utility line. For unhindered all-day conditioning, it features a filtered hose inlet with an automatic float valve to prevent tank overflow when connected to a standard garden hose.

• Upgraded 24-Inch High-Velocity Fan Head: Employs an expansive 90° oscillating and tilting outdoor-rated fan that moves air up to a powerful 8,200 CFM. The wider 24-inch blade profile dramatically extends the cooling trajectory, pushing the flash-evaporation field further and covering larger zones than smaller models.

• 1000 PSI High-Pressure Atomization Pump: Features a hard-wearing high-pressure pump paired with an enclosed TEFC motor, drastically outperforming low-pressure 300 PSI units. This high-load pressure ensures absolute atomization with an ultra-quiet footprint (~50 dB) that remains quieter than a traditional residential box fan.

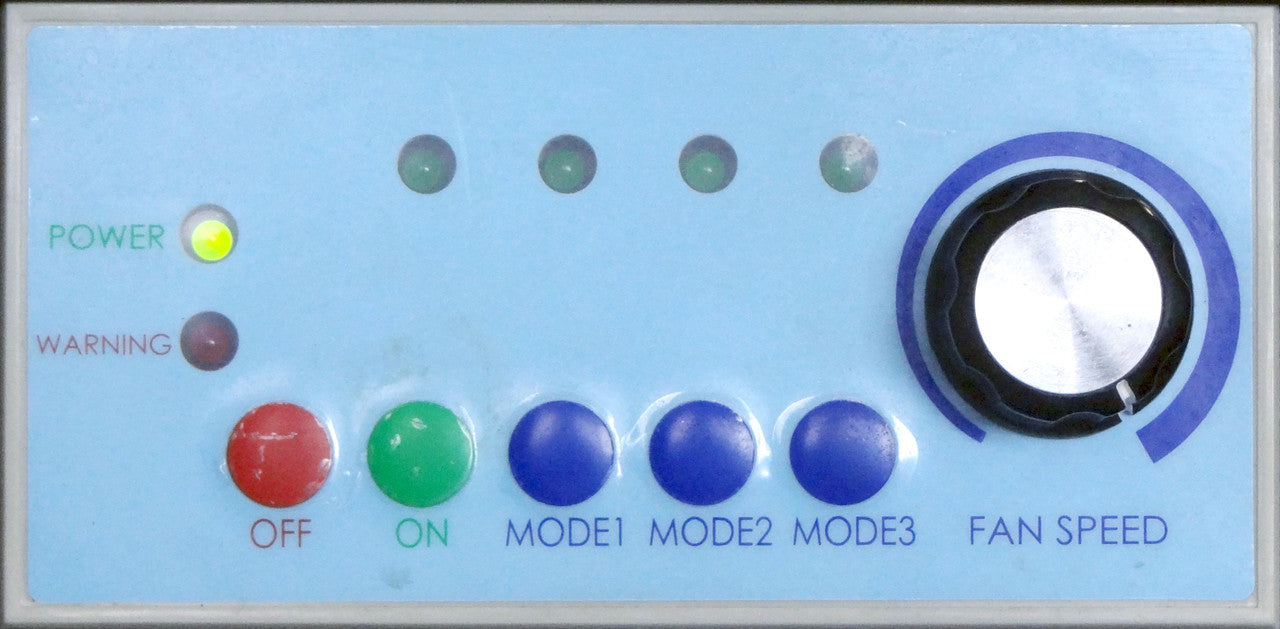

• 4-Mode Programmable Misting Interlock: Managed via a centralized variable speed dial and a smart pulse-timer dashboard supporting four distinct cycle settings: Mist Always On, 30s On / 30s Off, 40s On / 40s Off, and 50s On / 50s Off to easily match localized humidity factors.

• Integrated Low-Water Pump Protection: Equipped with an intelligent low-water safety switch that automatically cuts power to the pump core if the internal reservoir runs dry while keeping the fan blades spinning, safeguarding internal mechanical seals from damage.

Technical Specifications Summary

Comprehensive System Packaging List

• 1 × HydroMist USA Cool Caddie 16-Gallon Polyurethane Mobile Chassis Base

• 1 × 24-Inch High-Output 3-Speed Oscillating Fan Head Assembly

• 1 × Pre-Installed 1000 PSI High-Pressure Misting Pump & TEFC Motor Block

• 1 × Pre-Assembled 3/8″ Stainless Steel Mist Ring w/ 5 Fine 0.008″ Nozzles

• 1 × Integrated 5-Inch Ion Exchange Resin Water Filtration Cartridge

• 1 × Heavy-Gauge Grounded 115V AC Power Safety Cable

• 1 × Master Step-by-Step Field Operation & Maintenance Manual

Critical Field Installation & Maintenance Guidelines

• Freestanding Level Placement Protocol: Due to its top-heavy 24-inch fan head profile and a fully loaded operational weight approaching 254 lbs, always position the Cool Caddie on a flat, solid, and completely level surface. Engage the front locking caster wheel firmly before powering up to prevent shifting during fan oscillation.

• Outdoor Environmental Placement Mandate: This high-pressure system is strictly engineered for outdoor use or within exceptionally large, well-ventilated open commercial structures. Do not operate inside tight residential rooms, as the fine micro-mist will elevate localized humidity to saturation, creating condensation on walls, furniture, and electronics.

• Winterization & Storage Maintenance: Before long-term seasonal storage or when sub-freezing temperatures are expected, completely drain the 16-gallon water reservoir, unfasten the ion filter cartridge to air dry, and clear out remaining fluid lines via compressed air to protect the internal pump manifolds and seals from ice fractures.
