DIY Freestanding Pergola Bracket Kit with Roof Rafters – Up to 24' x 12'

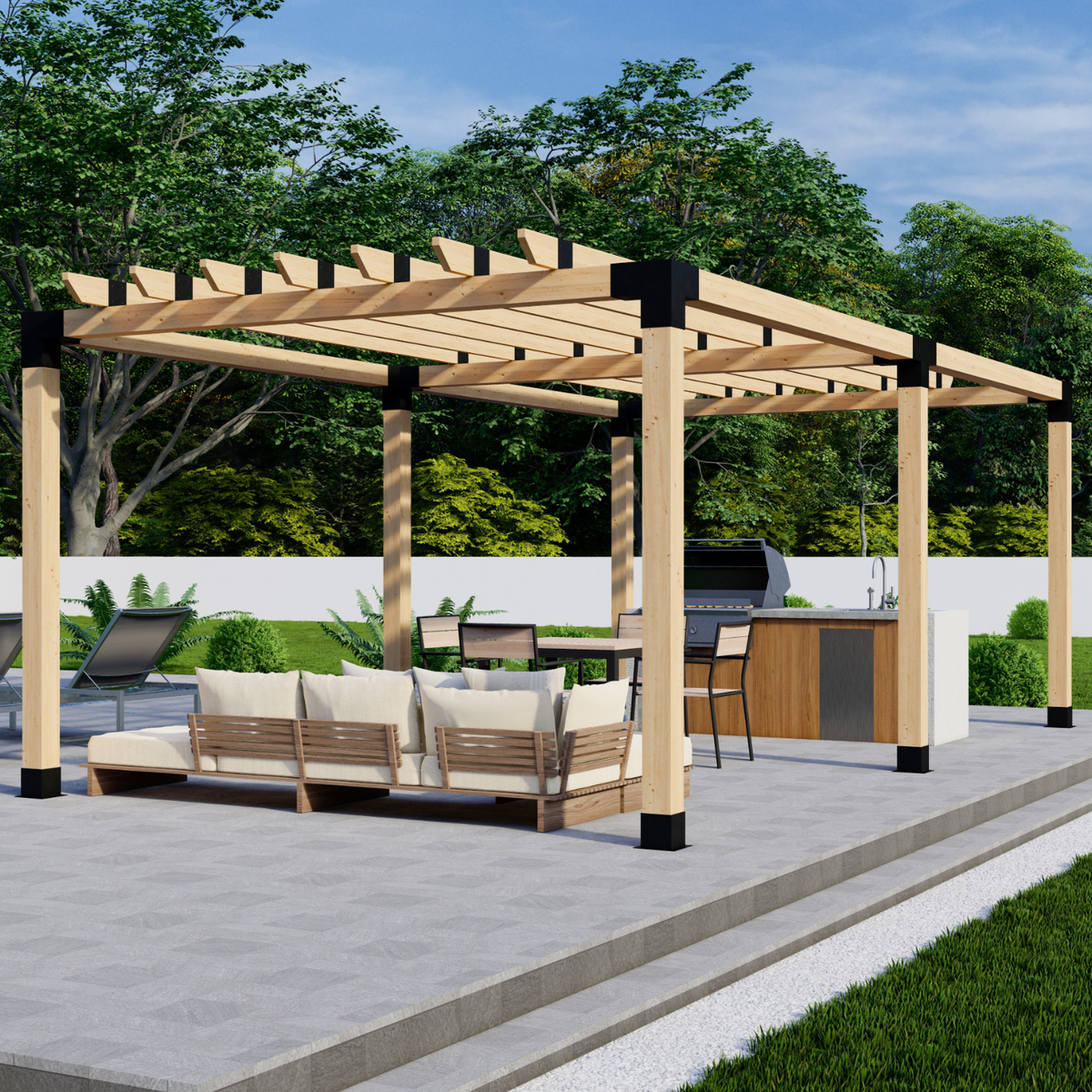

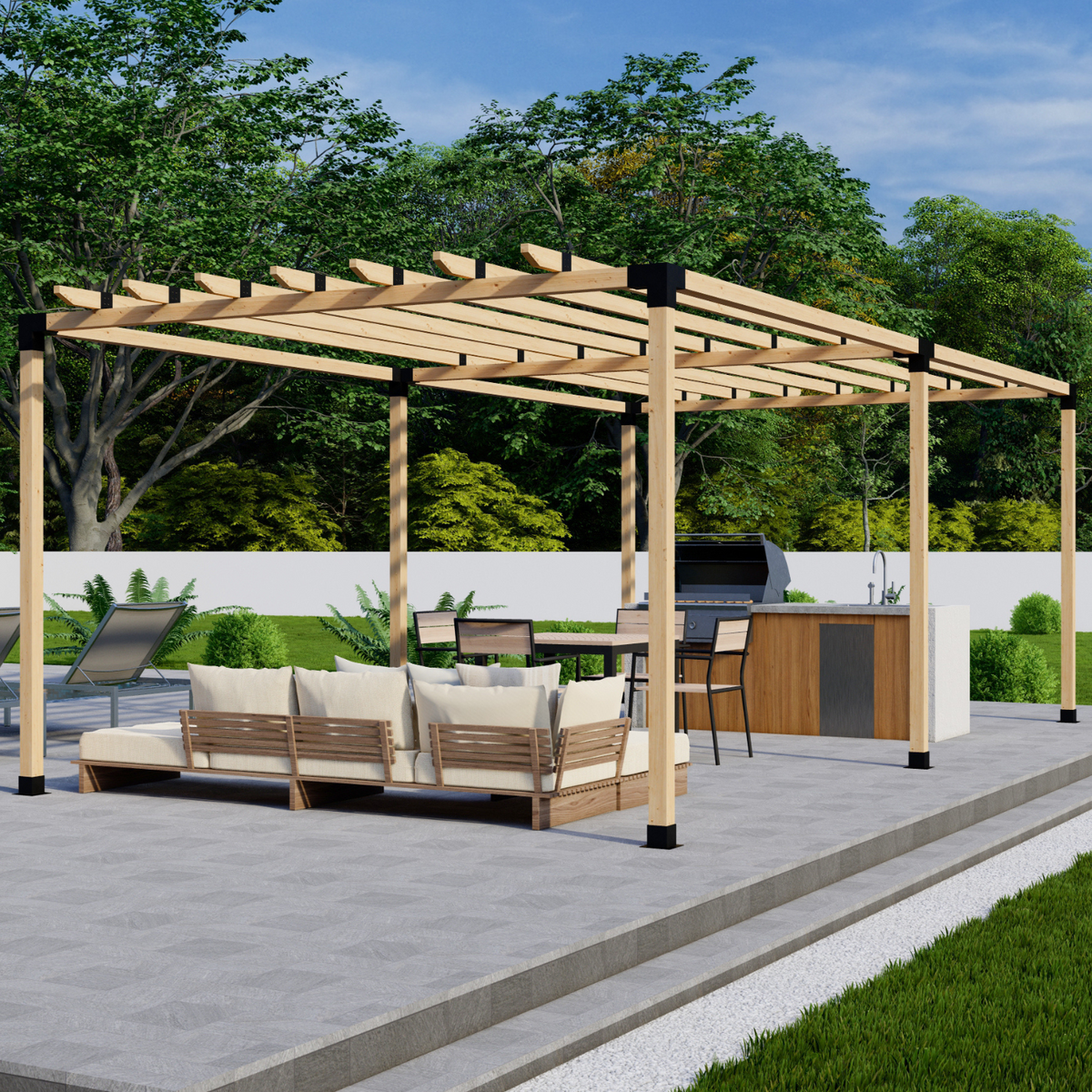

Build a custom freestanding pergola with the Zen Pergola DIY Bracket Kit with Traditional Roof Rafters. Designed for a six-post, two-block configuration, this kit can accommodate pergola layouts in a variety of sizes up to 24' x 12'.
Choose between brackets designed for 4x4 posts with 2x4 roof rafters or 6x6 posts with 2x6 roof rafters. The traditional roof configuration places the rafters on top of the roof beams and allows for optional rafter overhangs.
The kit includes the structural pergola brackets and stainless steel #12 wood screws. Lumber and the anchoring hardware needed to secure the post base brackets to a solid foundation are not included and must be purchased separately.
Key Features
- Freestanding Design: Designed for a six-post pergola configuration.
- Two-Block Layout: Supports pergola designs up to 24' x 12'.
- Two Bracket Configurations: Choose 4x4 and 2x4 brackets or 6x6 and 2x6 brackets.
- Traditional Rafter Roof: Roof rafters are installed on top of the main roof beams.
- Optional Rafter Overhangs: The design allows the roof rafters to extend beyond the beams.
- Steel Construction: Uses 12-gauge steel for 6x6 bracket sizes and 14-gauge steel for other bracket sizes.
- Laser-Cut and Laser-Welded: Brackets are manufactured using laser cutting and welding processes.
- Pre-Drilled Holes: Designed with holes for securing lumber and accessories.
- Weather Coating: Brackets feature a weather coating intended for outdoor applications.
- Stainless Steel Screws Included: Includes #12 stainless steel wood screws.
- 5-Year Bracket Warranty: All brackets are backed by a 5-year warranty.

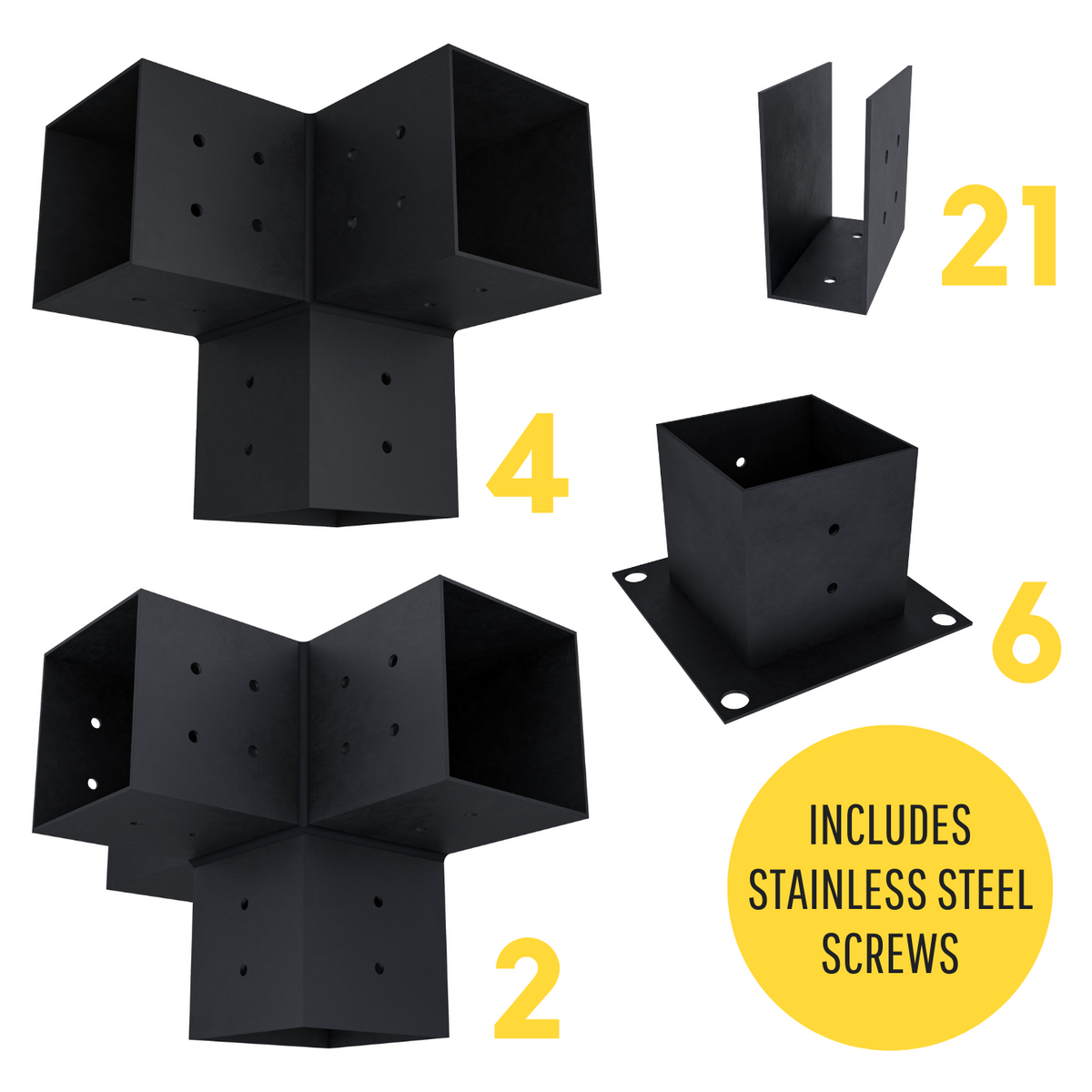

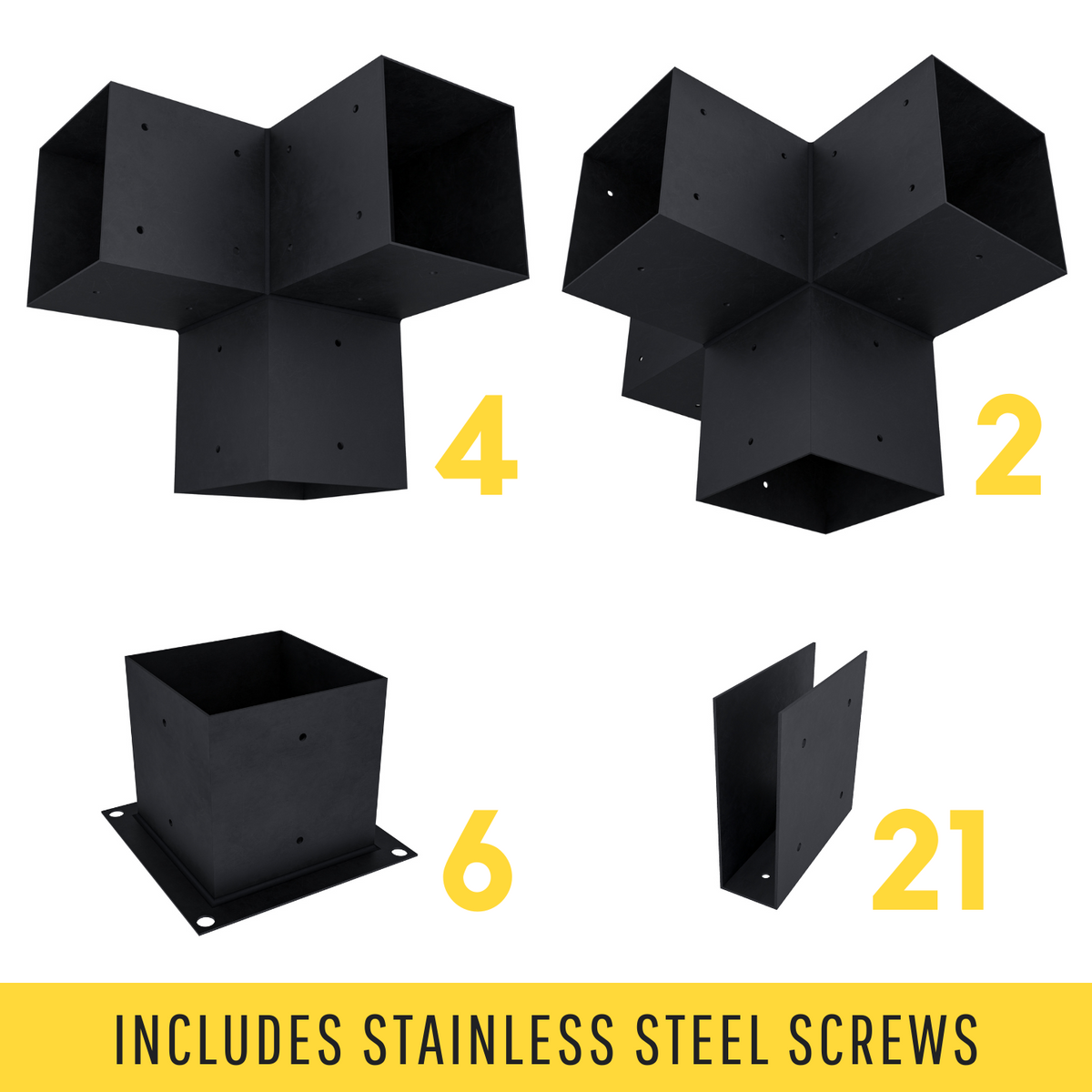

What's Included
- 6 × Post Base Brackets
- 4 × Corner 3-Arm Brackets
- 2 × Middle 4-Arm Brackets
- 21 × Roof Rafter Brackets
- #12 Stainless Steel Wood Screws
Choose Your Bracket Size
Select the bracket configuration that matches the lumber planned for your pergola:
- 4x4 and 2x4 Option: Designed for 4x4 posts and 2x4 roof rafters.
- 6x6 and 2x6 Option: Designed for 6x6 posts and 2x6 roof rafters.
Traditional Roof Rafter Design
The traditional roof configuration places the roof rafters on top of the main roof beams. The design allows for optional rafter overhangs, providing flexibility when determining the final roof appearance and dimensions.
Pergola Bracket Construction
Zen Pergola Brackets are designed for common lumber sizes including 4x4s, 6x6s, 2x4s, and 2x6s. The brackets are laser-cut and laser-welded and include pre-drilled holes for attaching wood and compatible accessories.
6x6 bracket components use 12-gauge steel, while other bracket sizes use 14-gauge steel. The brackets also feature a weather coating intended for outdoor use.
Lumber & Foundation Hardware
Lumber is not included with this kit. Wood for the posts, beams, roof rafters, and other pergola components must be purchased separately.
Anchoring hardware for securing the post base brackets to a solid foundation is also not included and should be selected according to the foundation and installation requirements of your project.
The kit does include the specified stainless steel #12 wood screws.
Specifications
- Product Type: DIY Freestanding Pergola Bracket Kit
- Pergola Type: Freestanding
- Post Configuration: 6 Posts
- Pergola Layout: 2 Blocks
- Maximum Pergola Size: Up to 24' x 12'
- Bracket Options: 4x4 & 2x4 or 6x6 & 2x6
- Roof Style: Traditional Roof Rafters
- Rafter Placement: On Top of Roof Beams
- Rafter Overhangs: Optional
- 6x6 Bracket Material: 12-Gauge Steel
- Other Bracket Material: 14-Gauge Steel
- Manufacturing: Laser-Cut and Laser-Welded
- Post Base Brackets: 6
- Corner 3-Arm Brackets: 4
- Middle 4-Arm Brackets: 2
- Roof Rafter Brackets: 21
- Screws: #12 Stainless Steel Wood Screws
- Lumber Included: No
- Foundation Anchoring Hardware Included: No
- Bracket Warranty: 5 Years
- Shipping: Direct to Customer from Boise, Idaho
Important Installation Note
This is a bracket kit and does not include lumber or foundation anchoring hardware. Before installation, verify your desired pergola dimensions, lumber requirements, foundation conditions, and appropriate anchoring method for your specific project.
