Zen Pergolas DIY Pergola Bracket Kit for a Freestanding Pergola With Slatted Roof - Any Size Up to 24' x 12'

DIY Freestanding Pergola Bracket Kit with Slatted Roof – Up to 24' x 12'

Build a custom freestanding pergola with this DIY bracket kit designed for a 6-post, 2-block layout up to 24' x 12'. The kit includes the steel brackets and stainless steel wood screws needed to assemble the pergola frame and inline slatted roof, while allowing you to source the lumber locally.

Choose between 4x4 and 2x4 brackets or 6x6 and 2x6 brackets to match your planned wood dimensions. The inline roof slat design can be configured with straight or angled slats for a customized pergola layout.

Key Features

• Designed for freestanding pergolas with 6 posts
• 2-block configuration for pergola sizes up to 24' x 12'
• Choice of 4x4 and 2x4 brackets or 6x6 and 2x6 brackets
• Inline roof slat design with straight or angled slats
• Laser-cut and laser-welded steel brackets
• Pre-drilled holes for securing wood and accessories
• Weather-coated for outdoor applications
• Stainless steel #12 wood screws included
• 5-year warranty on all brackets

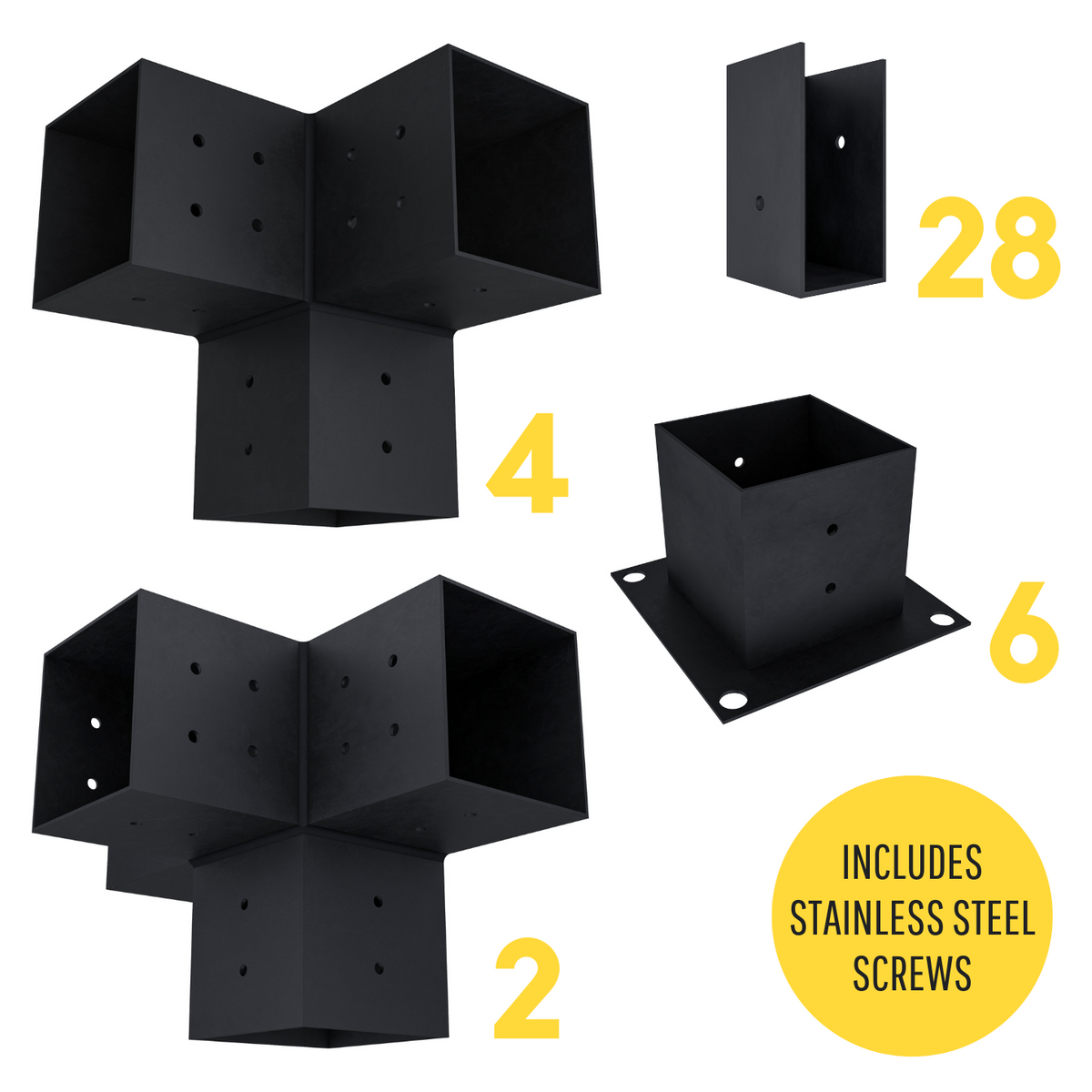

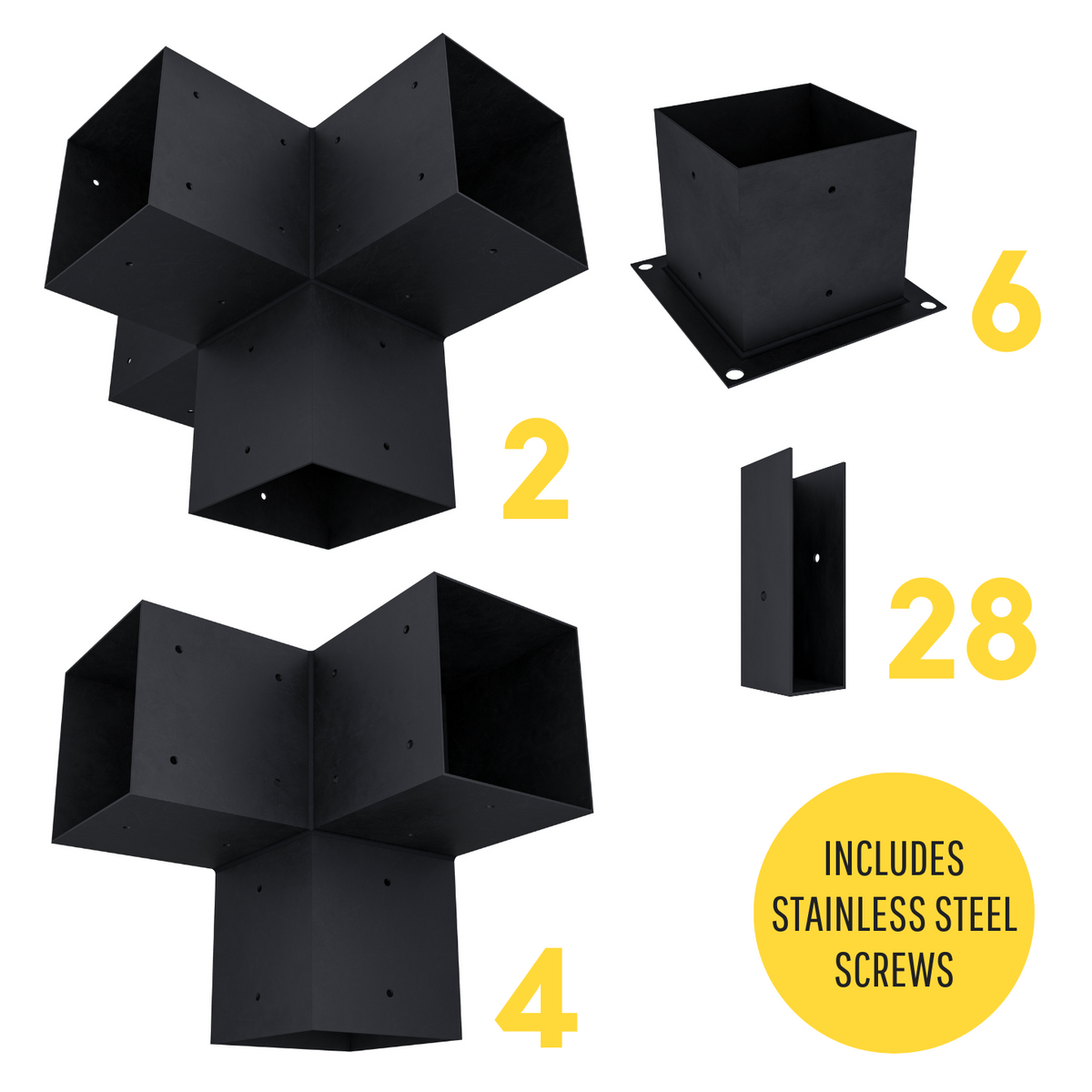

What's Included

• 6 × Post Base Brackets
• 4 × Corner 3-Arm Brackets
• 2 × Middle 4-Arm Brackets
• 28 × Roof Slat Brackets
• Stainless Steel #12 Wood Screws

Choose Your Bracket Configuration

Select the bracket combination that matches the lumber you plan to use:

• 4x4 + 2x4: 4x4 post brackets with 2x4 roof slat brackets
• 6x6 + 2x6: 6x6 post brackets with 2x6 roof slat brackets

The brackets are designed to fit common lumber sizes, including 4x4, 6x6, 2x4, and 2x6 dimensions. Lumber is not included, allowing you to purchase the wood locally according to your project requirements.

Inline Slatted Roof

The included roof slat brackets are designed for an inline slatted roof configuration. Roof slats can be installed in a straight or angled arrangement depending on the desired look and layout of the pergola.

The kit includes 28 roof slat brackets. Additional compatible brackets may be required if you choose a different slat spacing or configuration.

Steel Bracket Construction

• 12-gauge steel for 6x6 brackets
• 14-gauge steel for other bracket sizes
• Laser-cut construction
• Laser-welded joints
• Pre-drilled holes for mounting
• Weather coating for outdoor applications

What's Not Included

• Lumber/wood
• Anchoring hardware for securing the post base brackets to a solid foundation

Lumber and foundation anchoring hardware must be purchased separately. The appropriate anchoring method will depend on the foundation or surface where the pergola is installed.

Specifications

Pergola Type	Freestanding
Post Configuration	6 posts
Layout	2-block
Maximum Size	Up to 24' x 12'
Roof Style	Inline roof slats
Roof Slat Configuration	Straight or angled
Bracket Options	4x4 + 2x4 or 6x6 + 2x6
Steel	12-gauge for 6x6 brackets; 14-gauge for other bracket sizes
Roof Slat Brackets	28 included
Fasteners	Stainless steel #12 wood screws included
Warranty	5 years on brackets
Shipping Origin	Boise, Idaho, USA

Important Installation Note

This is a bracket and hardware kit; lumber and foundation anchoring hardware are not included. Before installation, verify that the selected lumber, foundation, anchoring method, roof configuration, and overall pergola design are appropriate for the intended location and comply with applicable local requirements.
