DIY Freestanding Pergola Bracket Kit with Slatted Roof

Build a custom freestanding pergola with the Zen Pergola Bracket Kit. Designed for a nine-post, four-block pergola configuration, this bracket system can be used to create structures in a variety of sizes up to 24' × 24'. Choose between brackets designed for 4x4 and 2x4 lumber or 6x6 and 2x6 lumber, depending on your project requirements.

The kit is designed for an inline slatted roof, with roof slats installed straight or at an angle. Lumber and the anchoring hardware required to secure the post bases to a solid foundation are not included, while the required stainless steel wood screws are included.

Key Features

• Freestanding Design: Designed for a nine-post pergola configuration.
• Flexible Sizing: Supports pergola layouts up to 24' × 24'.
• Two Bracket Size Options: Choose 4x4 and 2x4 brackets or 6x6 and 2x6 brackets.

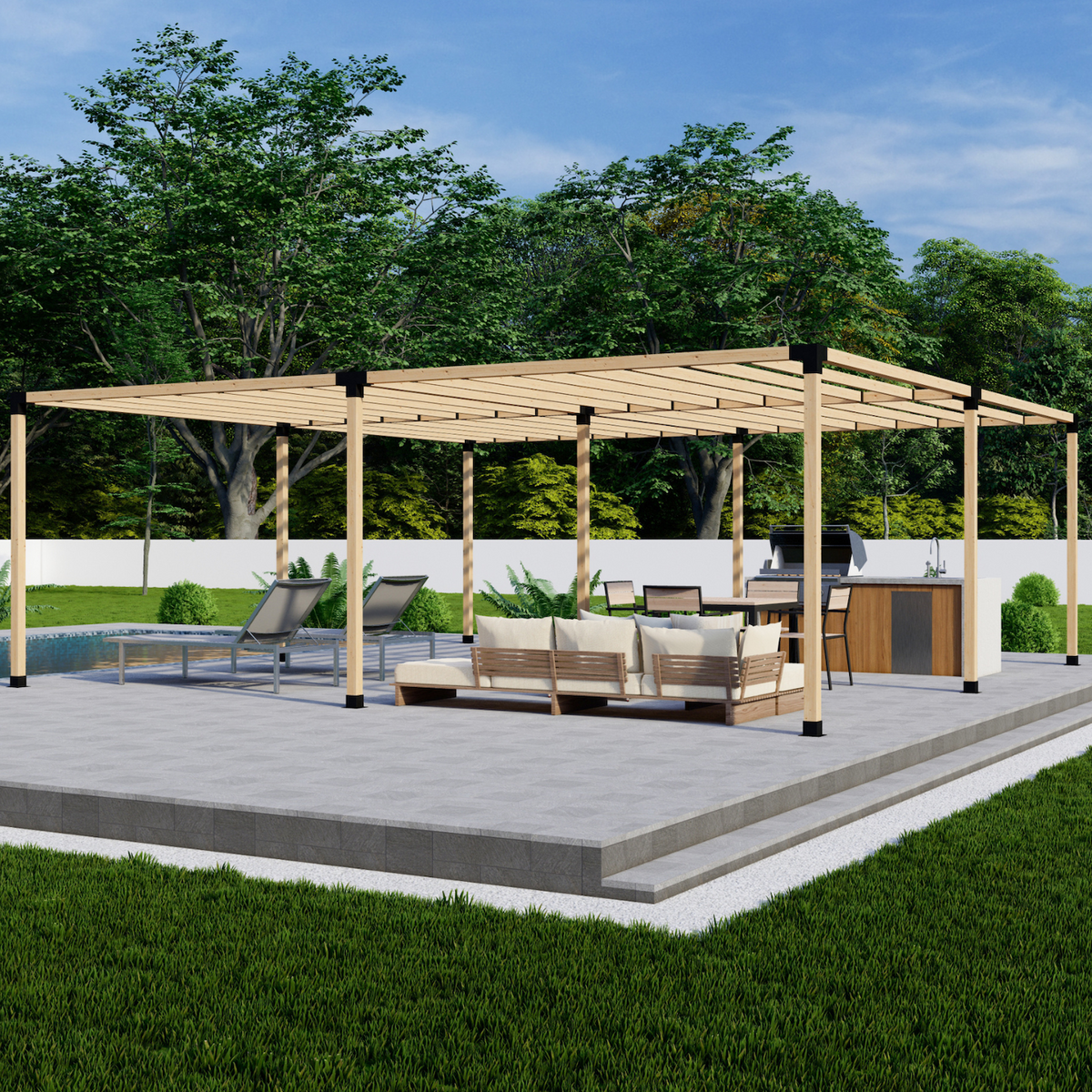

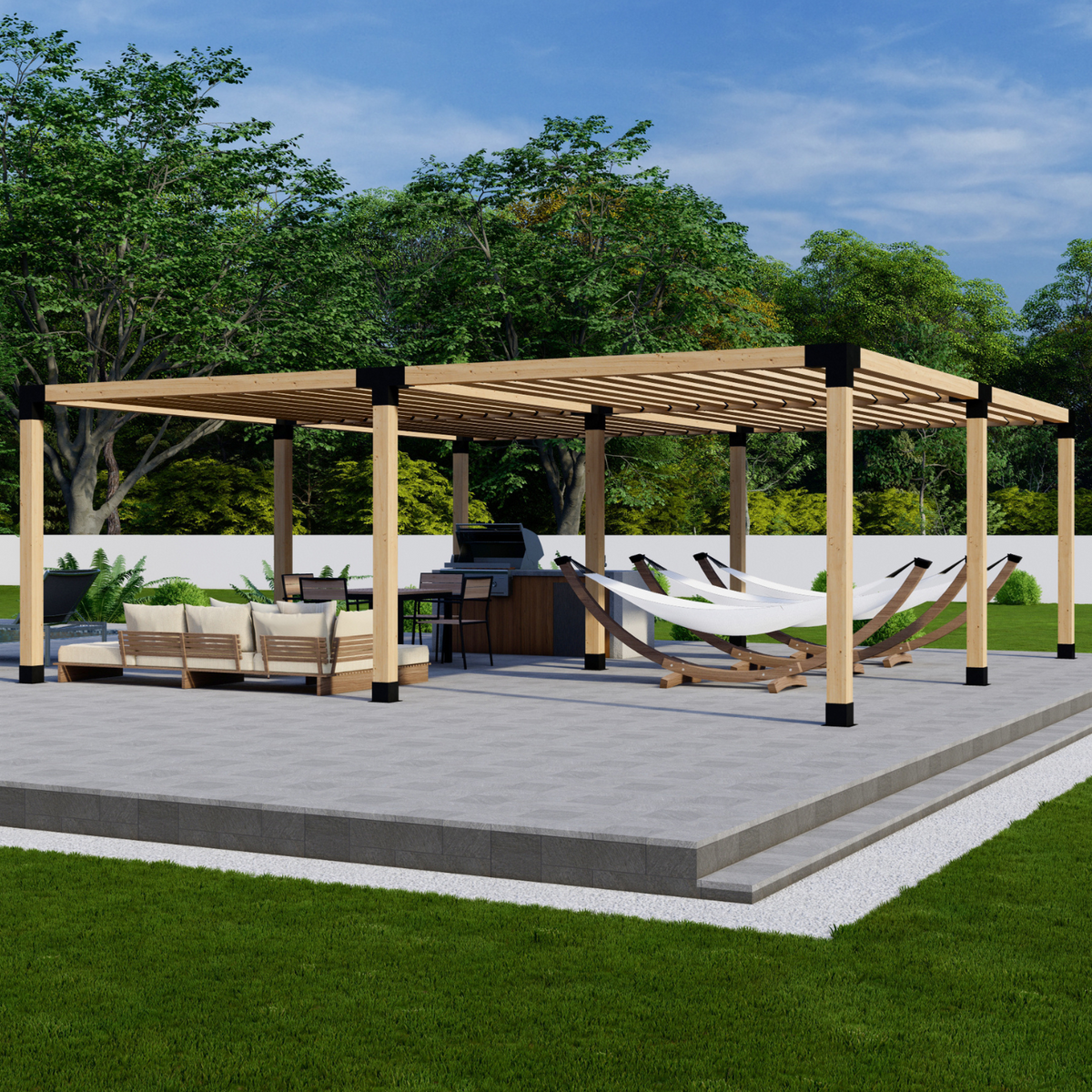

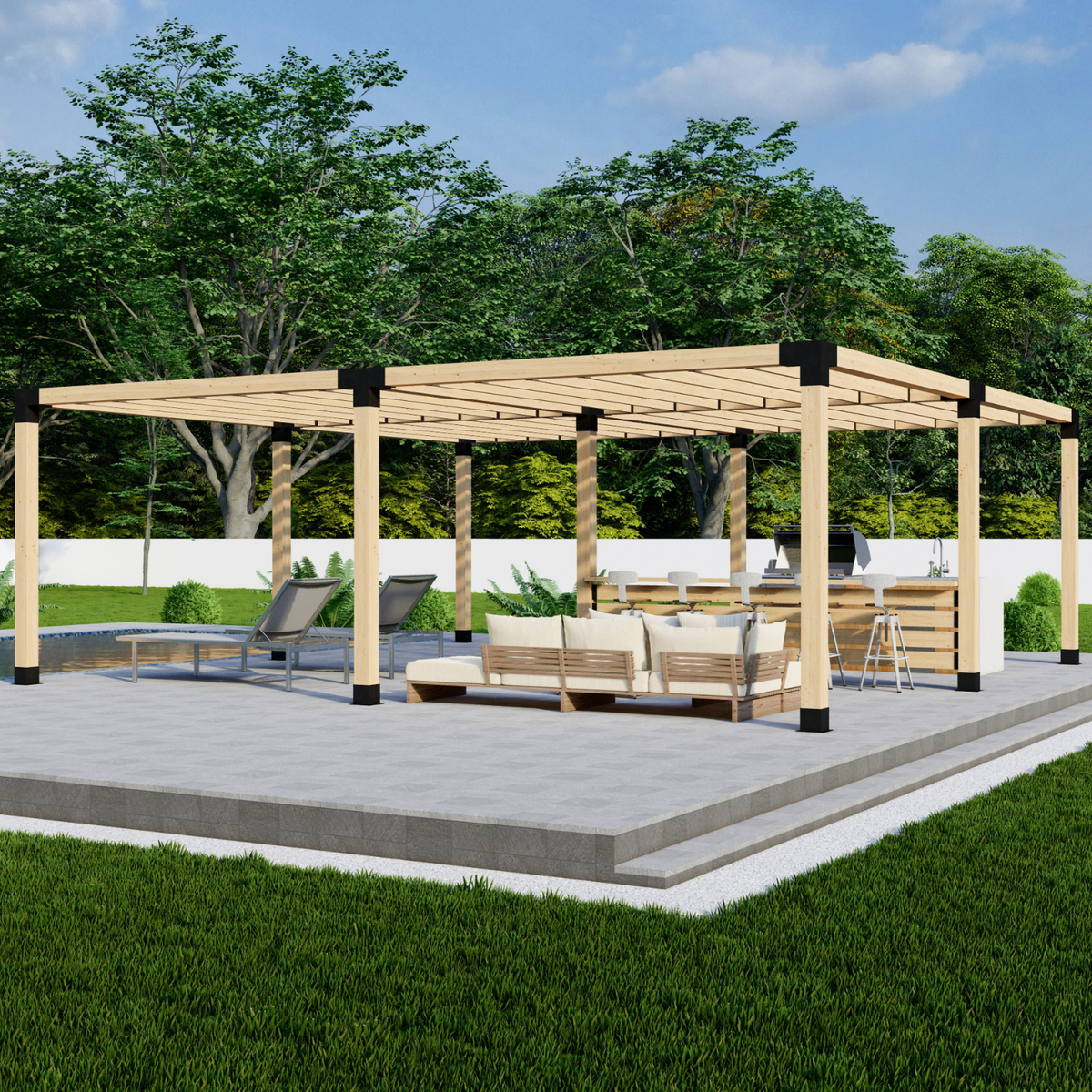

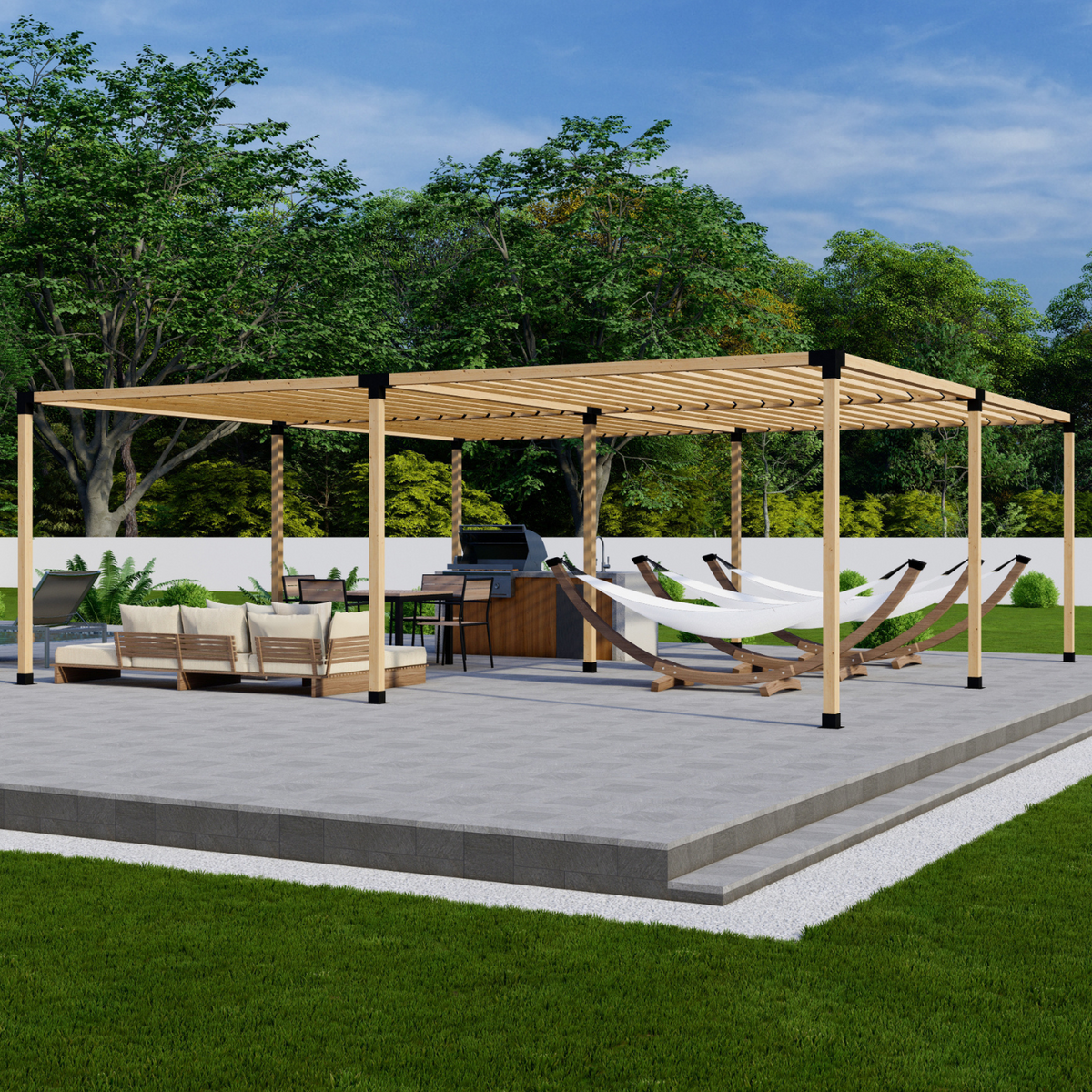

• Inline Slatted Roof: Designed for straight or angled roof slat layouts.
• Steel Construction: Made from 12-gauge steel for 6x6 bracket sizes and 14-gauge steel for other bracket sizes.
• Laser-Cut and Laser-Welded: Brackets are manufactured using laser cutting and welding processes.
• Pre-Drilled Holes: Brackets include pre-drilled holes for securing lumber and accessories.
• Weather Coating: Brackets feature a weather-resistant coating designed for outdoor use.
• Stainless Steel Screws Included: The kit includes #12 stainless steel wood screws.
• 5-Year Bracket Warranty: Brackets are backed by a 5-year warranty.

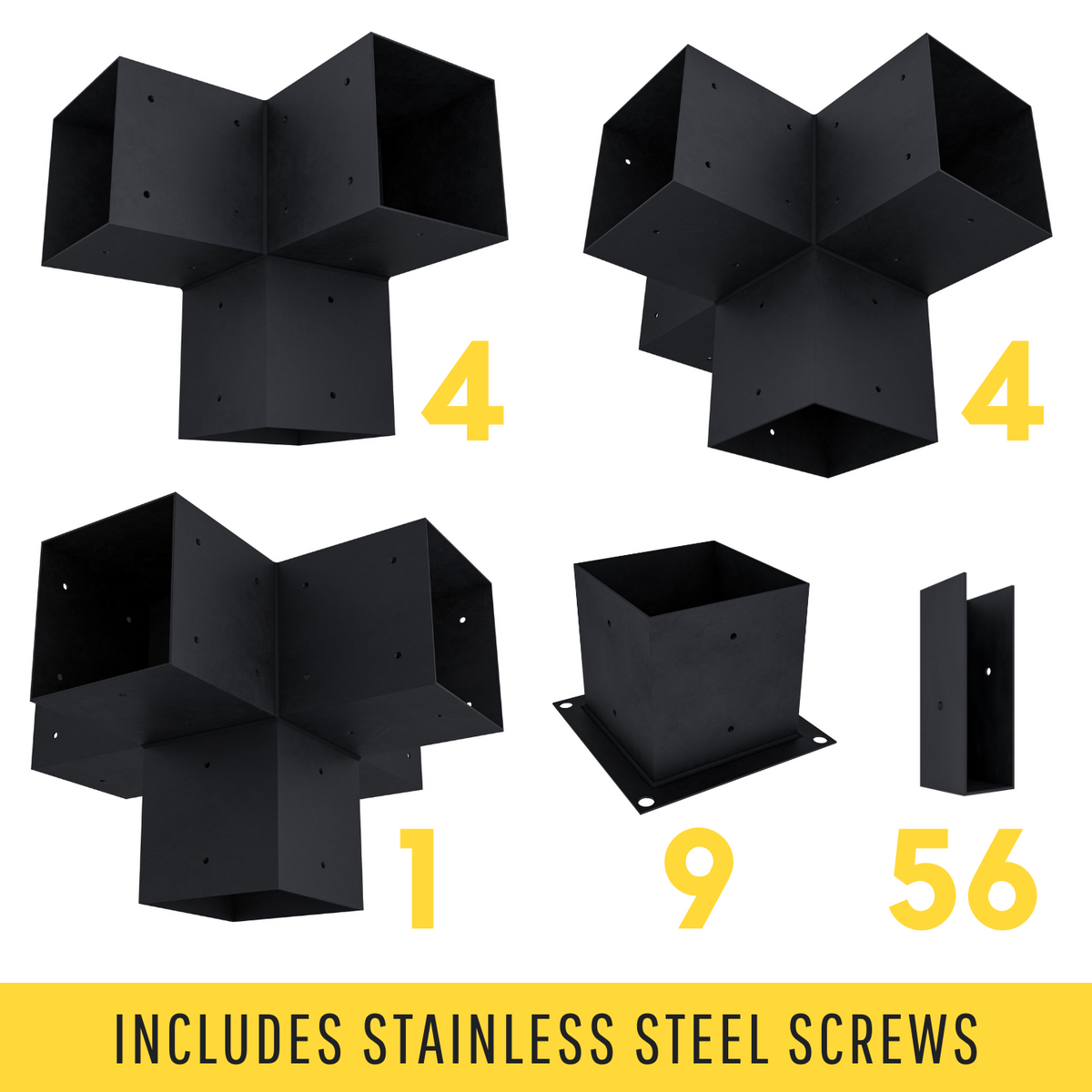

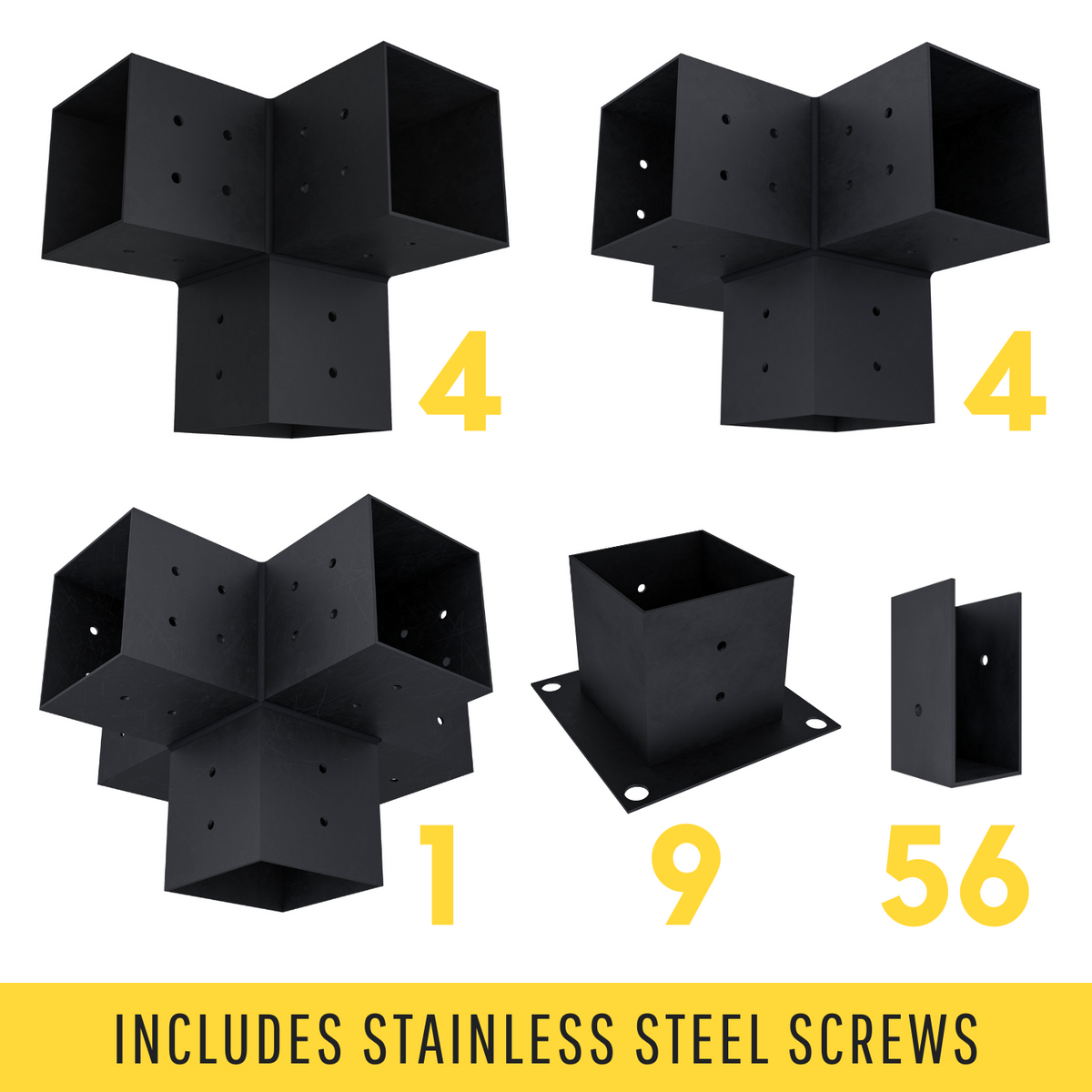

What's Included

• 9 × Post Base Brackets
• 4 × Corner 3-Arm Brackets
• 4 × Middle 4-Arm Brackets
• 1 × Central 5-Arm Bracket
• 56 × Roof Slat Brackets
• #12 Stainless Steel Wood Screws

Choose Your Lumber Size

Select the bracket configuration that matches your pergola design:

• 4x4 / 2x4 Option: Brackets designed for common 4x4 posts and 2x4 roof members.
• 6x6 / 2x6 Option: Brackets designed for common 6x6 posts and 2x6 roof members.

Lumber & Anchoring Hardware

Lumber is not included with the kit. The wood required for the posts, beams, roof members, and slats must be purchased separately. Anchoring hardware for securing the post base brackets to a solid foundation is also not included and should be selected based on the foundation and installation requirements.

The kit does include the stainless steel #12 wood screws required for assembling the bracket system with the lumber.

Bracket Construction

Zen Pergola Brackets are designed around common lumber dimensions and feature pre-drilled mounting holes. The brackets are laser-cut and laser-welded, with 12-gauge steel used for 6x6 bracket sizes and 14-gauge steel used for the other bracket sizes. A weather coating is applied for outdoor use.

Specifications

• Product Type: DIY Freestanding Pergola Bracket Kit
• Pergola Configuration: Freestanding, 9 Posts
• Pergola Layout: 4 Blocks
• Maximum Pergola Size: Up to 24' × 24'
• Bracket Options: 4x4 & 2x4 or 6x6 & 2x6
• Roof Style: Inline Roof Slats
• Roof Slat Position: Straight or Angled
• 6x6 Bracket Material: 12-Gauge Steel
• Other Bracket Material: 14-Gauge Steel
• Manufacturing: Laser-Cut and Laser-Welded
• Post Base Brackets: 9
• Corner 3-Arm Brackets: 4
• Middle 4-Arm Brackets: 4
• Central 5-Arm Bracket: 1
• Roof Slat Brackets: 56
• Screws: #12 Stainless Steel Wood Screws
• Lumber Included: No
• Foundation Anchoring Hardware Included: No
• Bracket Warranty: 5 Years
• Shipping: Direct to Customer from Boise, Idaho

Important Installation Note

This is a bracket kit and does not include lumber or foundation anchoring hardware. Before installation, confirm the pergola dimensions, lumber requirements, foundation conditions, and appropriate anchoring method for your specific project.
