Zen Pergolas DIY Pergola Bracket Kit for an Attached Pergola Frame - Any Size Up to 24' x 24'

DIY Attached Pergola Bracket Kit – Frame Only, Up to 24' x 24'

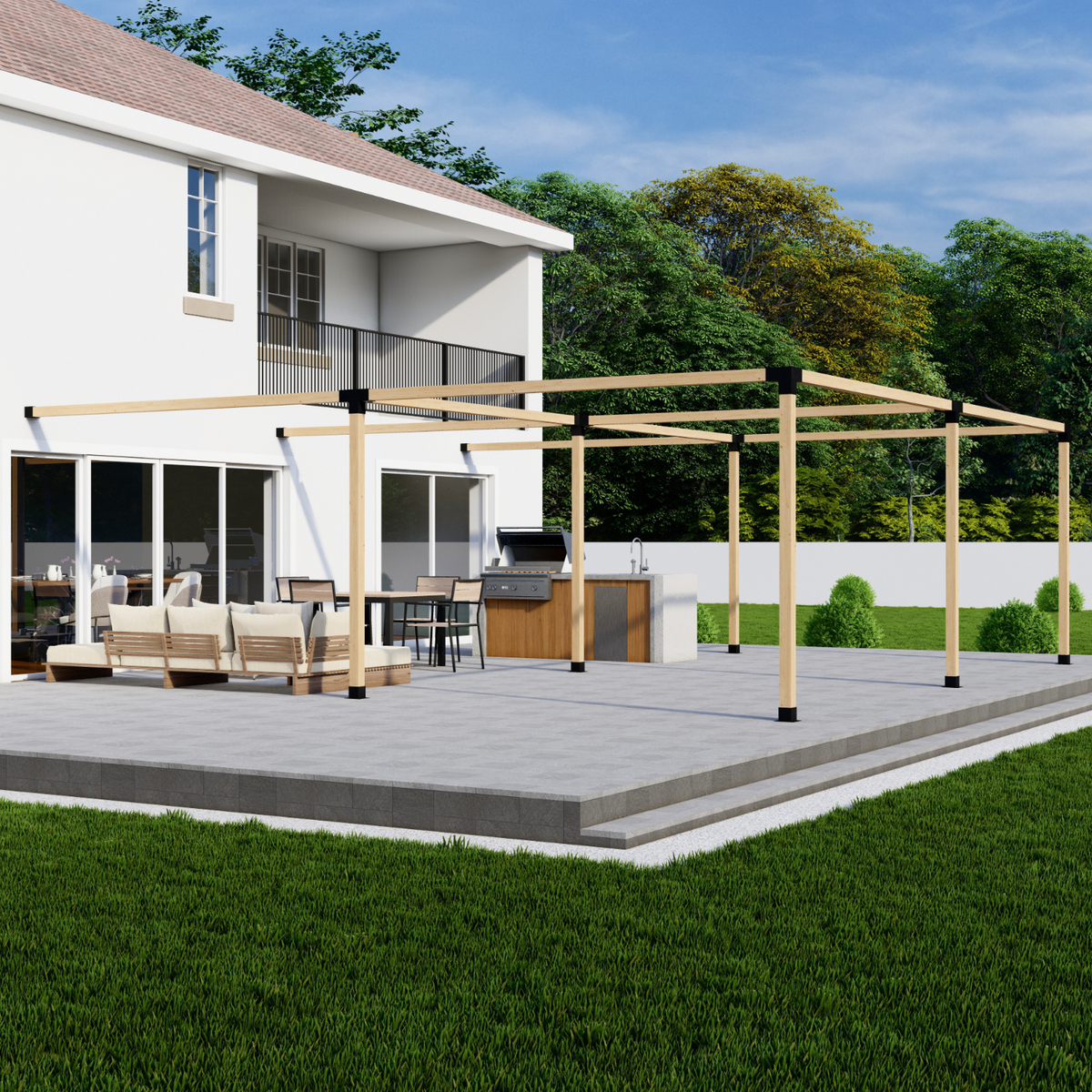

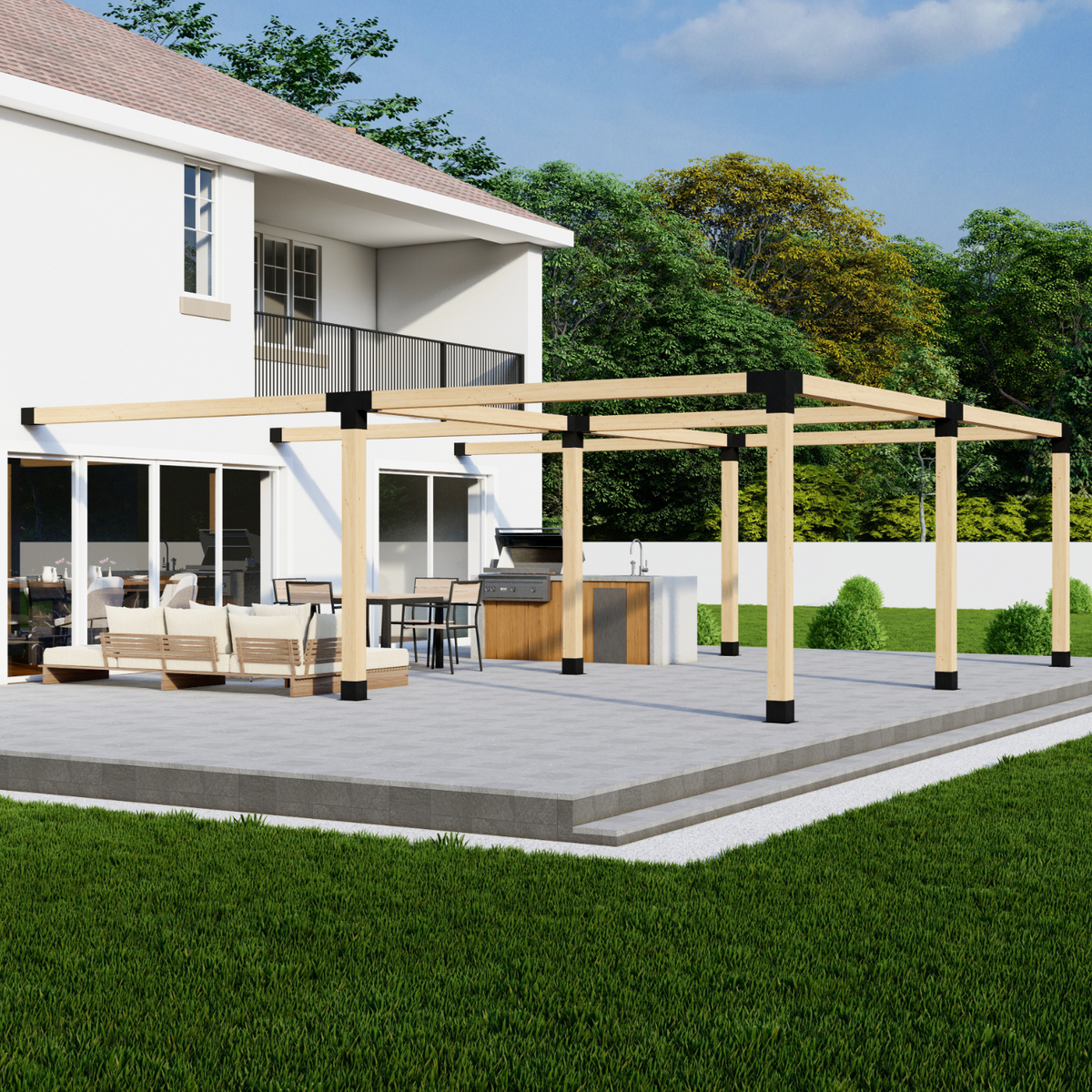

Build a custom pergola attached to your home with the Zen Pergola DIY Attached Pergola Bracket Kit. Designed for a six-post, four-block configuration, this frame-only kit can accommodate attached pergola designs up to 24' x 24'.

Choose between brackets designed for 4x4 or 6x6 posts. The kit provides the structural brackets needed to build the pergola frame, including post base brackets, wall mount brackets, multi-arm brackets, and stainless steel wood screws.

This configuration is for the pergola frame only and does not include a roof or canopy. Lumber and the anchoring hardware needed to secure the post bases and wall mount brackets are also not included and must be purchased separately.

Key Features

• Attached Pergola Design: Designed to connect the pergola frame to a house or other suitable structure.
• Six-Post Configuration: Includes six post base brackets for the freestanding portion of the frame.
• Four-Block Layout: Designed for attached pergola configurations up to 24' x 24'.
• Two Post Bracket Options: Choose brackets for 4x4 or 6x6 posts.
• Frame Only: This kit does not include roof components or shade canopies.
• Wall Mount Brackets: Includes three brackets for connecting the pergola frame to the house.
• Steel Construction: Uses 12-gauge steel for 6x6 bracket sizes and 14-gauge steel for other bracket sizes.
• Laser-Cut and Laser-Welded: Brackets are manufactured using laser cutting and welding processes.
• Pre-Drilled Holes: Designed with holes for securing lumber and compatible accessories.
• Weather Coating: Brackets feature a coating intended for outdoor applications.
• Stainless Steel Screws Included: Includes #12 stainless steel wood screws.
• 5-Year Bracket Warranty: All brackets are backed by a 5-year warranty.

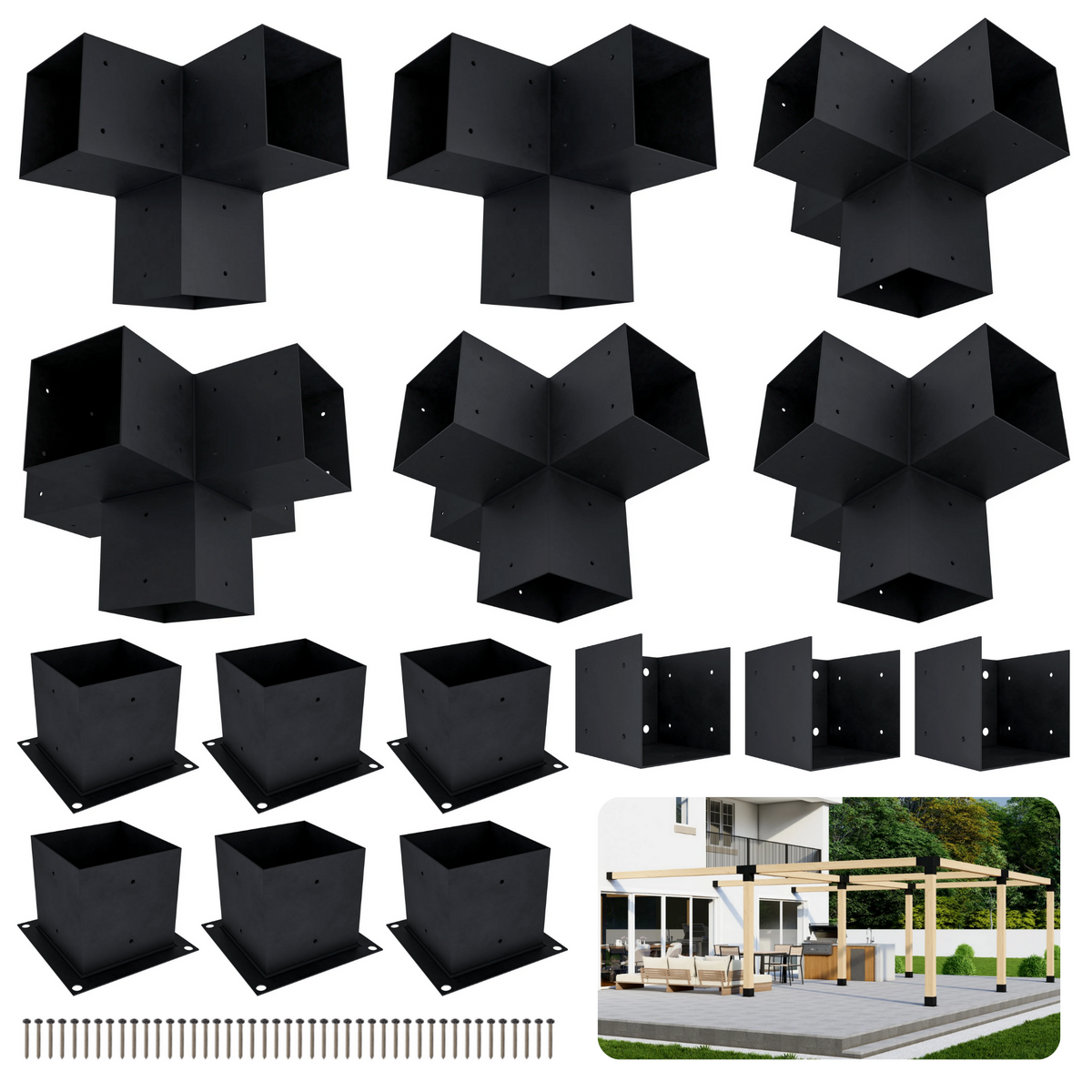

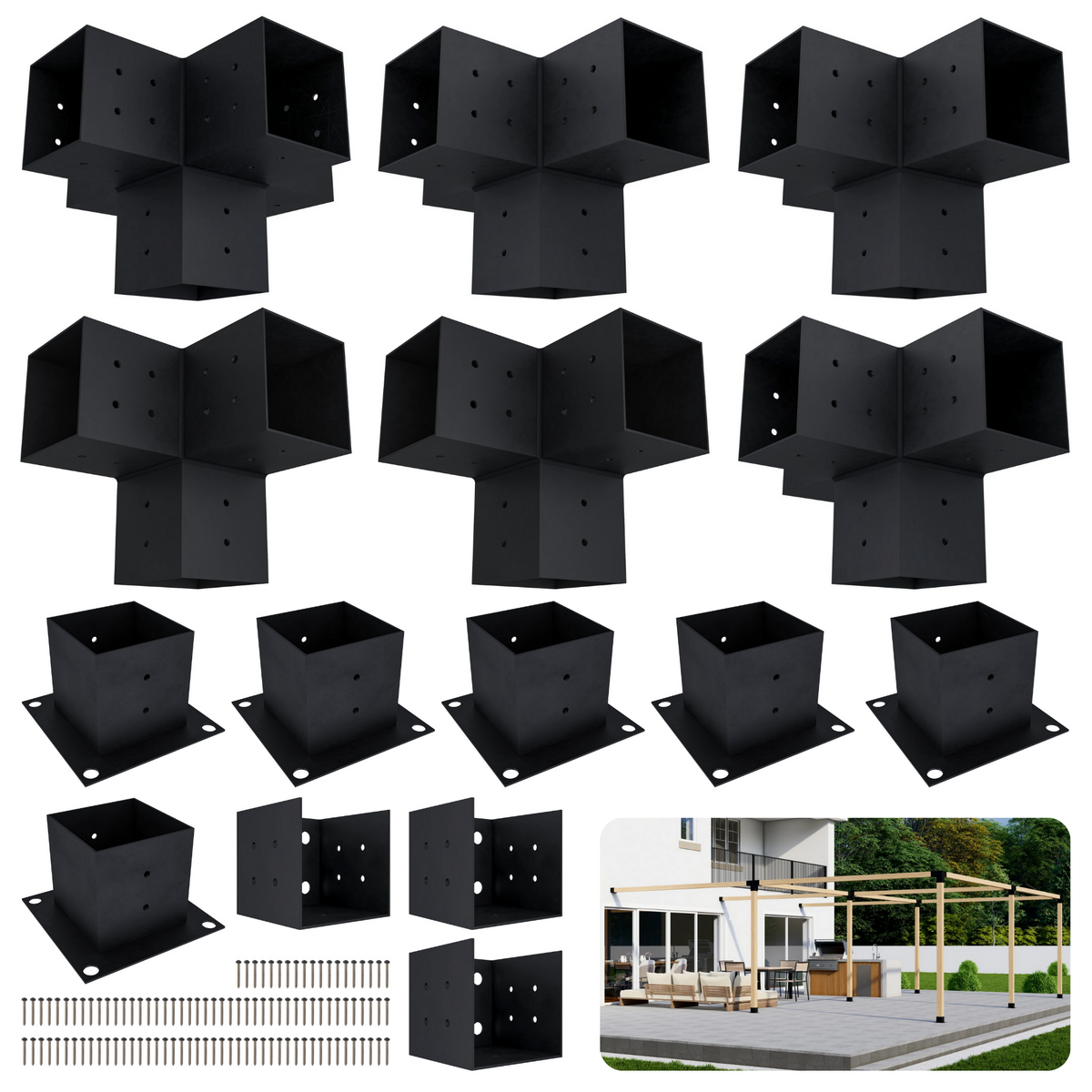

What's Included

• 6 × Post Base Brackets
• 3 × Wall Mount Brackets
• 2 × Corner 3-Arm Brackets
• 3 × Middle 4-Arm Brackets
• 1 × Central 5-Arm Bracket
• #12 Stainless Steel Wood Screws

Choose Your Bracket Size

Select the bracket configuration that matches the lumber planned for your pergola:

• 4x4 Option: Brackets designed for common 4x4 pergola posts.
• 6x6 Option: Brackets designed for common 6x6 pergola posts.

Frame-Only Configuration

This kit provides the brackets for constructing the main pergola frame but does not include a roof system. Roof rafters, roof slats, shade canopies, and other roof components can be selected separately if desired.

The attached design uses wall mount brackets to connect one side of the pergola frame to the house, while post base brackets support the exterior posts. The exact placement and structural requirements should be determined based on the project design, existing structure, and applicable building requirements.

Pergola Bracket Construction

Zen Pergola Brackets are designed to work with common lumber sizes including 4x4s, 6x6s, 2x4s, and 2x6s. The brackets are laser-cut and laser-welded and include pre-drilled holes for attaching wood and compatible accessories.

6x6 bracket components use 12-gauge steel, while other bracket sizes use 14-gauge steel. The brackets also feature a weather coating intended for outdoor use.

Lumber & Anchoring Hardware

Lumber is not included with this kit. Wood for the posts, beams, and other pergola frame components must be purchased separately.

Anchoring hardware for securing the post base brackets and wall mount brackets is also not included. The appropriate anchoring hardware should be selected based on the foundation, house structure, installation method, and applicable requirements.

The kit does include the specified stainless steel #12 wood screws.

Specifications

• Product Type: DIY Attached Pergola Bracket Kit
• Pergola Type: Attached to House
• Post Configuration: 6 Posts
• Pergola Layout: 4 Blocks
• Maximum Pergola Size: Up to 24' x 24'
• Bracket Options: 4x4 or 6x6
• Roof Style: Frame Only – No Roof
• Post Base Brackets: 6
• Wall Mount Brackets: 3
• Corner 3-Arm Brackets: 2
• Middle 4-Arm Brackets: 3
• Central 5-Arm Bracket: 1
• 6x6 Bracket Material: 12-Gauge Steel
• Other Bracket Material: 14-Gauge Steel
• Manufacturing: Laser-Cut and Laser-Welded
• Screws: #12 Stainless Steel Wood Screws
• Lumber Included: No
• Anchoring Hardware Included: No
• Roof Components Included: No
• Bracket Warranty: 5 Years
• Shipping: Direct to Customer from Boise, Idaho

Important Installation Note

This is a frame-only bracket kit and does not include lumber, foundation anchoring hardware, roof components, or shade canopies. Because the pergola attaches to an existing structure, verify the attachment location, structural requirements, foundation conditions, lumber specifications, and appropriate anchoring method before installation.
