Zen Pergolas DIY Pergola Bracket Kit for an Attached Pergola With Slatted Roof - Any Size Up to 24' x 24'

DIY Attached Pergola Bracket Kit with Slatted Roof – Up to 24' x 24'

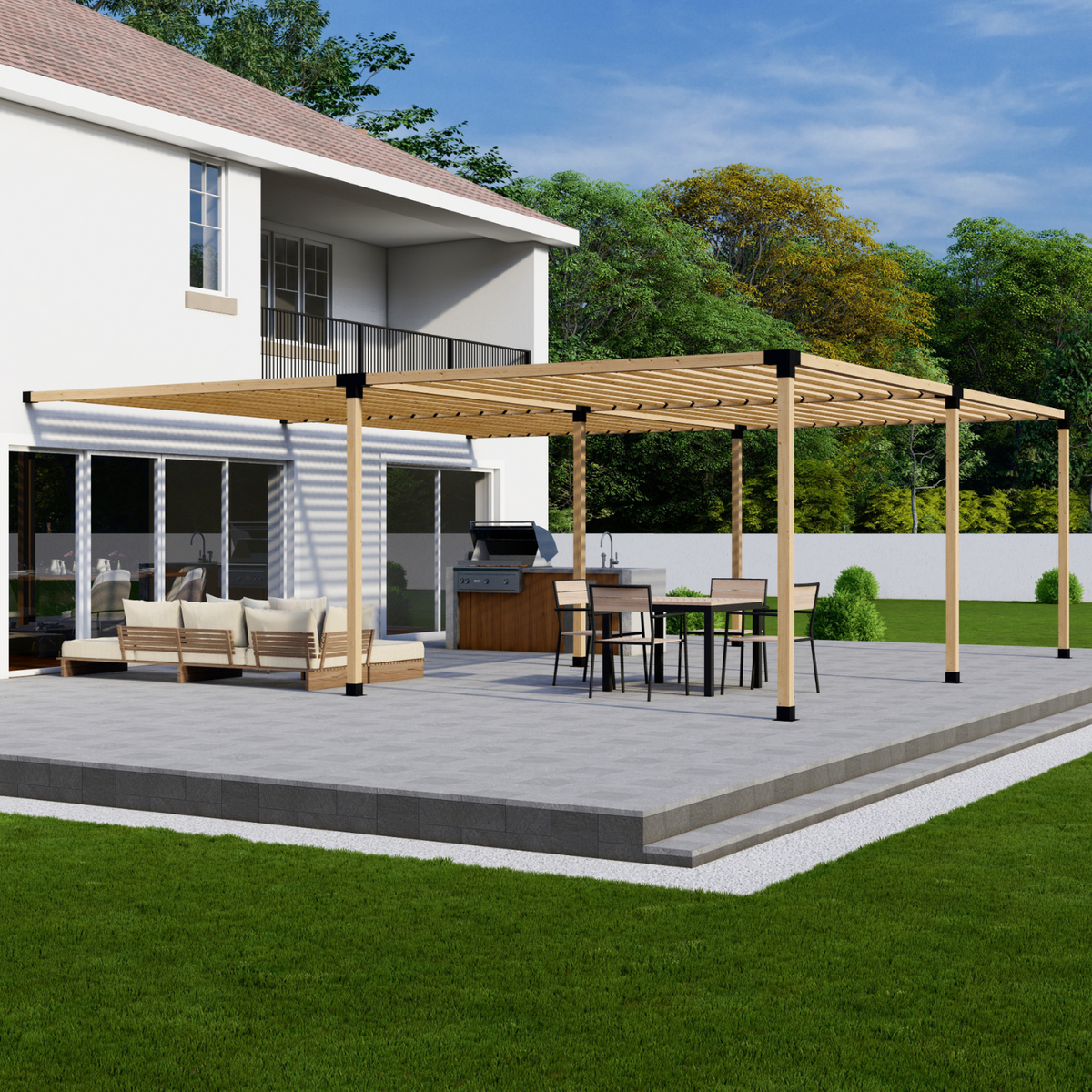

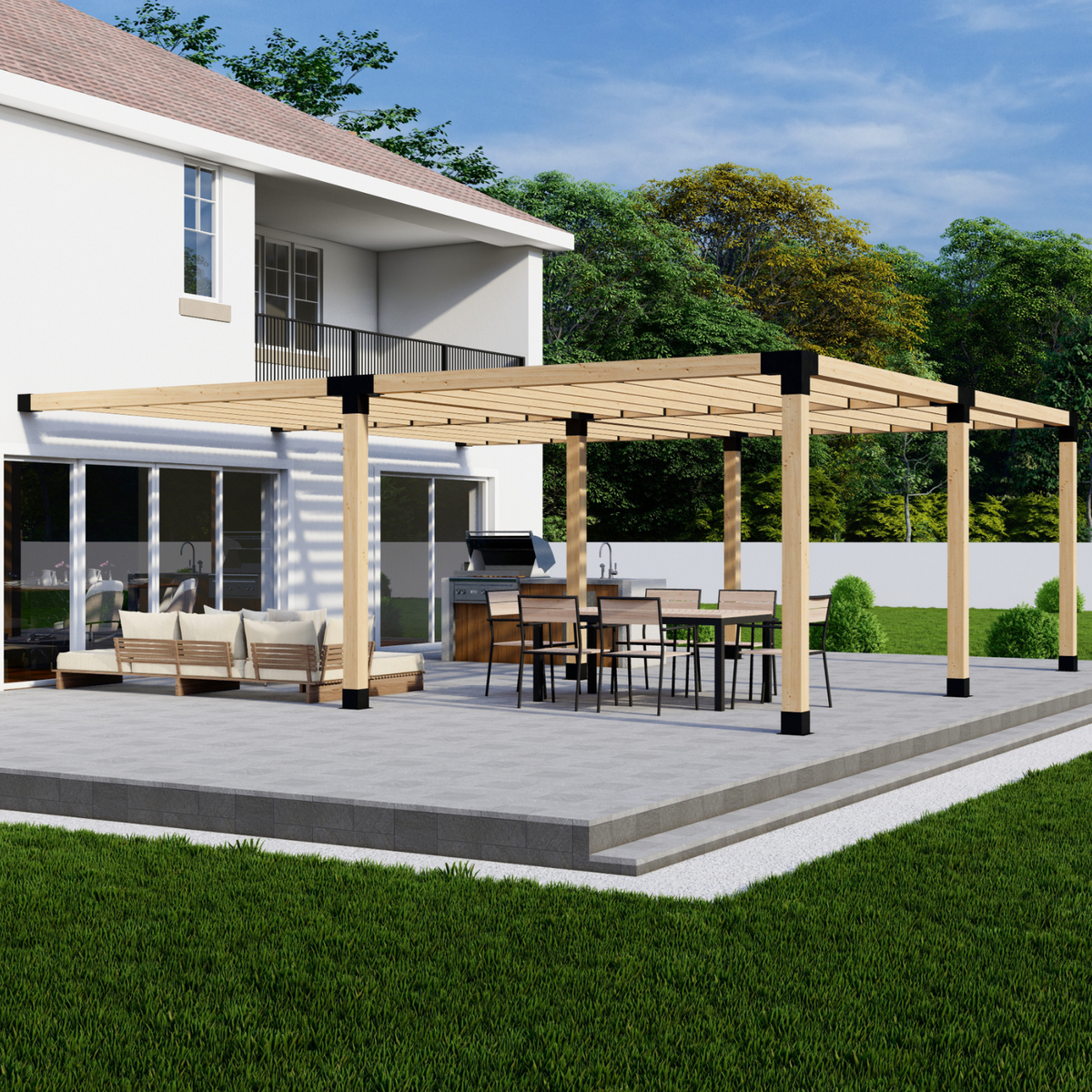

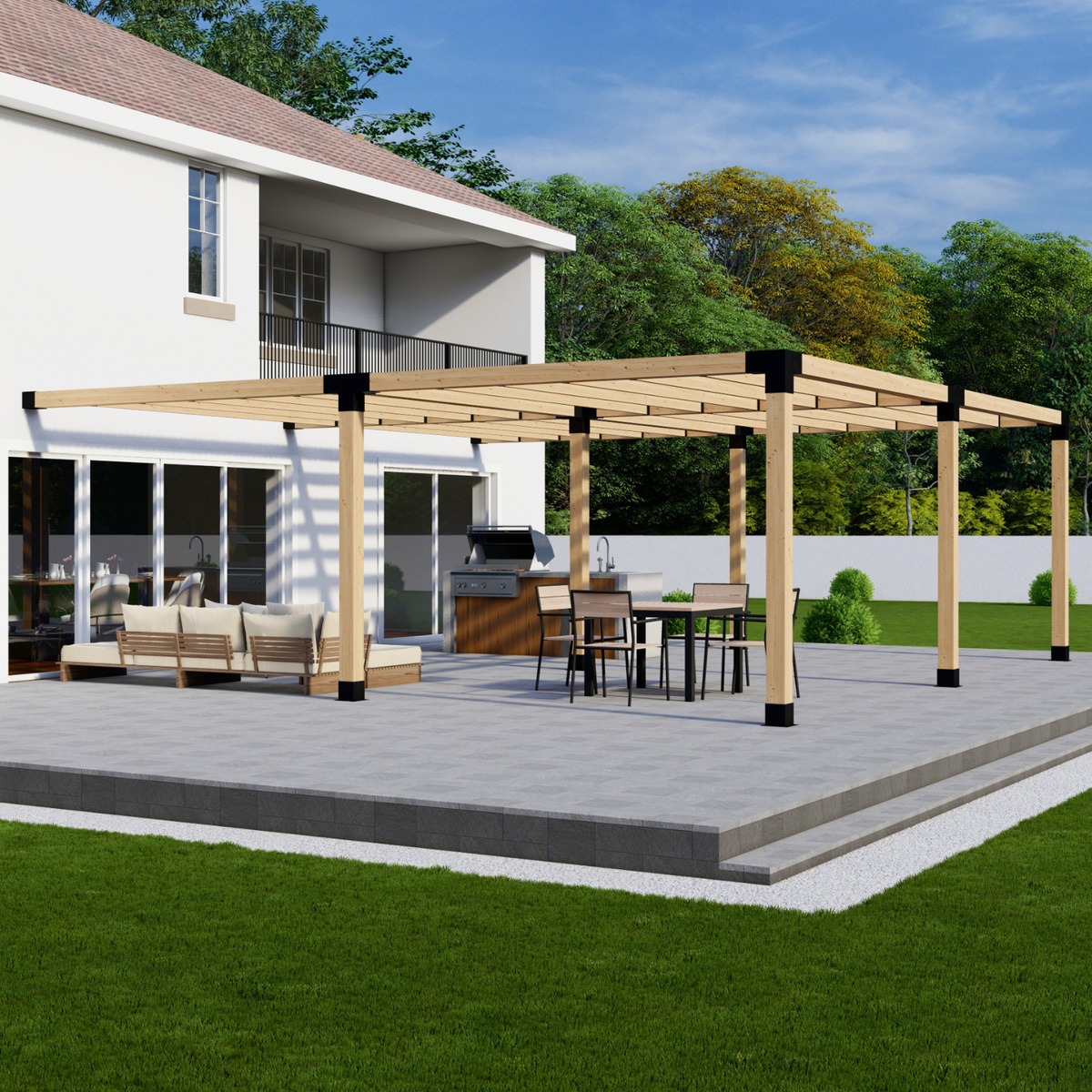

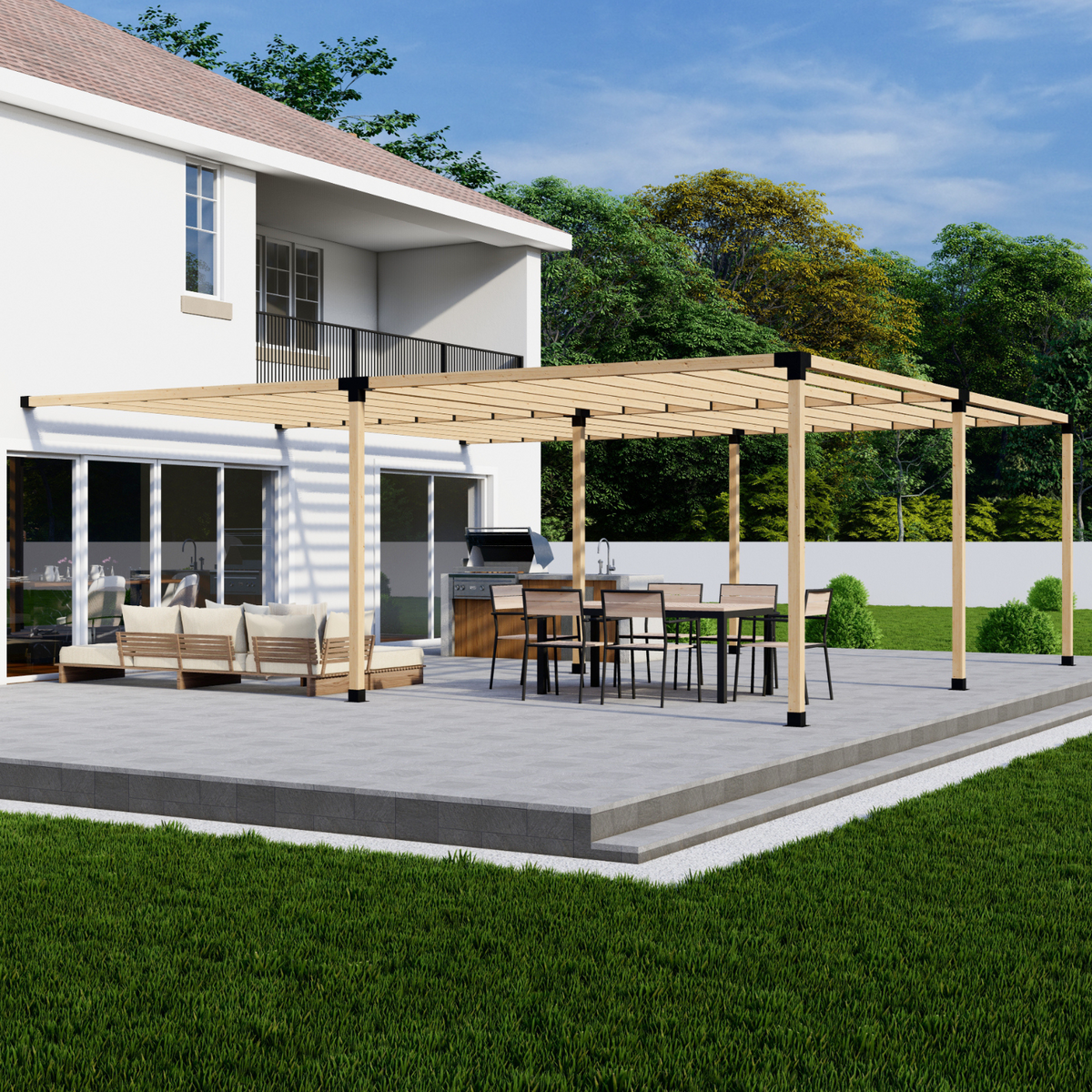

Build a custom pergola attached to your home with the Zen Pergola DIY Bracket Kit with Inline Roof Slats. Designed for a six-post, four-block configuration, this kit can accommodate attached pergola layouts in a variety of sizes up to 24' x 24'.

Choose between brackets designed for 4x4 posts with 2x4 roof members or 6x6 posts with 2x6 roof members. The inline roof design allows the slats to be installed straight or at an angle, depending on your preferred layout.

The kit includes the structural pergola brackets, roof slat brackets, and stainless steel #12 wood screws. Lumber and the anchoring hardware needed to secure the post base brackets and wall mount brackets are not included and must be purchased separately.

Key Features

• Attached Design: Designed for pergolas attached to a house.
• Six-Post Configuration: Includes six post base brackets for the exterior posts.
• Four-Block Layout: Supports pergola designs up to 24' x 24'.
• Two Bracket Configurations: Choose 4x4 and 2x4 brackets or 6x6 and 2x6 brackets.
• Inline Slatted Roof: Designed for straight or angled roof slat layouts.
• Wall Mount Brackets: Includes three wall mount brackets for connecting the pergola frame to the house.
• 56 Roof Slat Brackets: Provides the bracket hardware for the slatted roof configuration.
• Steel Construction: Uses 12-gauge steel for 6x6 bracket sizes and 14-gauge steel for other bracket sizes.
• Laser-Cut and Laser-Welded: Brackets are manufactured using laser cutting and welding processes.
• Pre-Drilled Holes: Designed with holes for securing lumber and accessories.
• Weather Coating: Brackets feature a weather coating intended for outdoor applications.
• Stainless Steel Screws Included: Includes #12 stainless steel wood screws.
• 5-Year Bracket Warranty: All brackets are backed by a 5-year warranty.

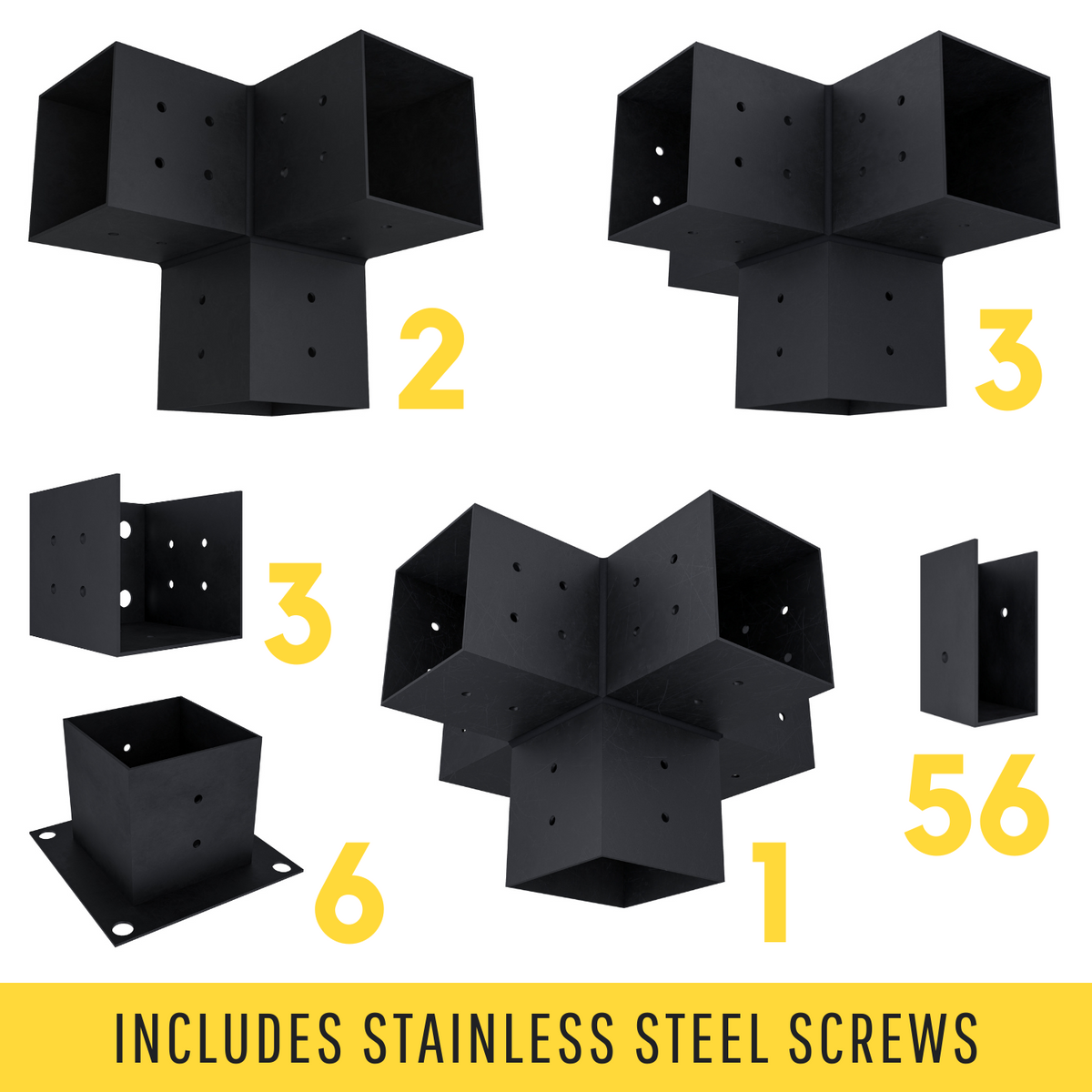

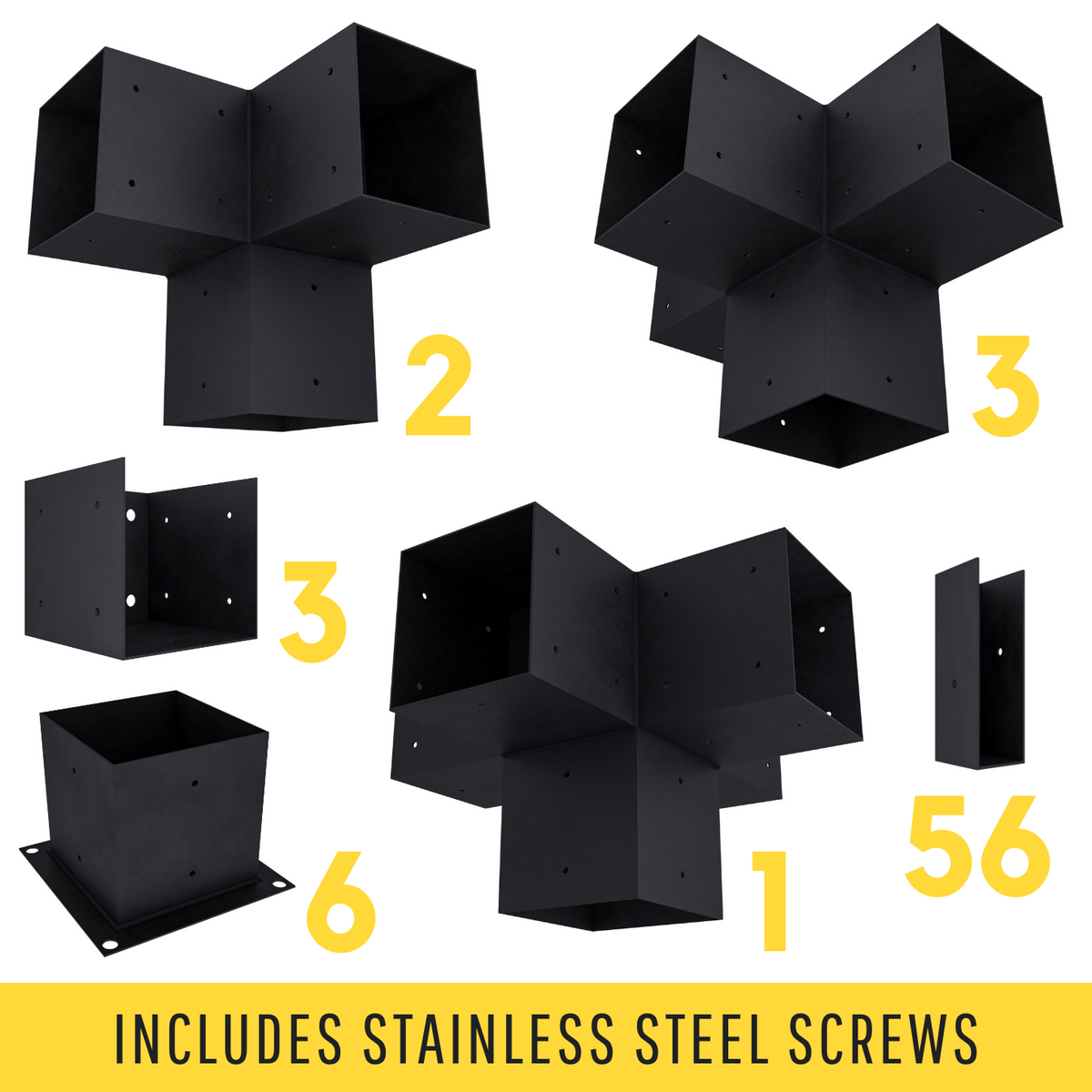

What's Included

• 6 × Post Base Brackets
• 3 × Wall Mount Brackets
• 2 × Corner 3-Arm Brackets
• 3 × Middle 4-Arm Brackets
• 1 × Central 5-Arm Bracket
• 56 × Roof Slat Brackets
• #12 Stainless Steel Wood Screws

Choose Your Bracket Size

Select the bracket configuration that matches the lumber planned for your pergola:

• 4x4 and 2x4 Option: Designed for 4x4 posts and 2x4 roof members.
• 6x6 and 2x6 Option: Designed for 6x6 posts and 2x6 roof members.

Inline Slatted Roof Design

The roof slat brackets are designed for an inline roof configuration. Roof slats can be installed in a straight or angled layout, providing flexibility when planning the appearance and orientation of the pergola roof.

Pergola Bracket Construction

Zen Pergola Brackets are designed to work with common lumber sizes including 4x4s, 6x6s, 2x4s, and 2x6s. The brackets are laser-cut and laser-welded and include pre-drilled holes for attaching wood and compatible accessories.

6x6 bracket components use 12-gauge steel, while other bracket sizes use 14-gauge steel. The brackets also feature a weather coating intended for outdoor use.

Lumber & Anchoring Hardware

Lumber is not included with this kit. Wood for the posts, beams, roof members, and slats must be purchased separately.

Anchoring hardware for securing the post base brackets and wall mount brackets is also not included. The appropriate anchoring hardware should be selected ba
