Zen Pergolas DIY Pergola Kit for a Freestanding Pergola With Canopies - Any Size Up to 24' x 12'
Choose options

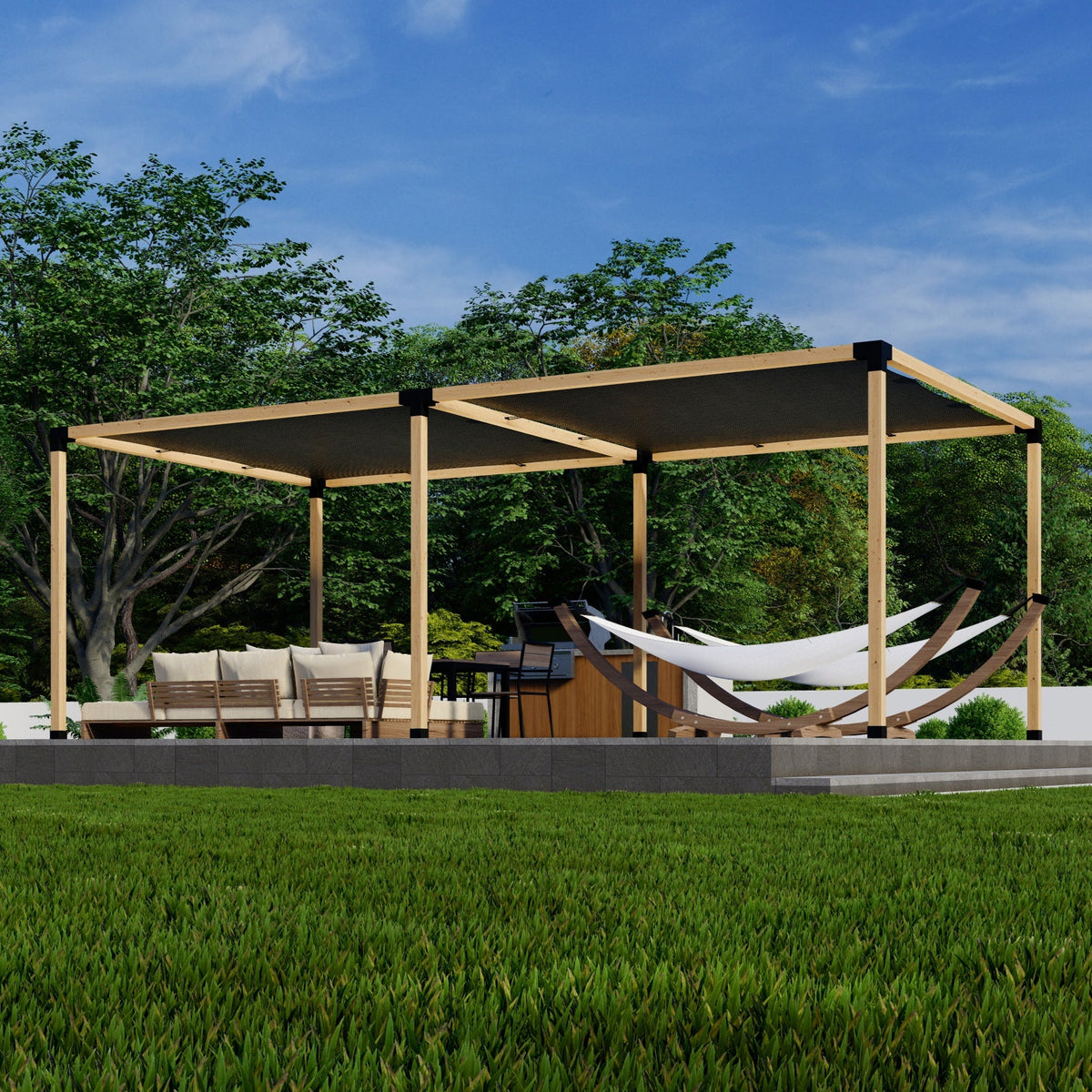

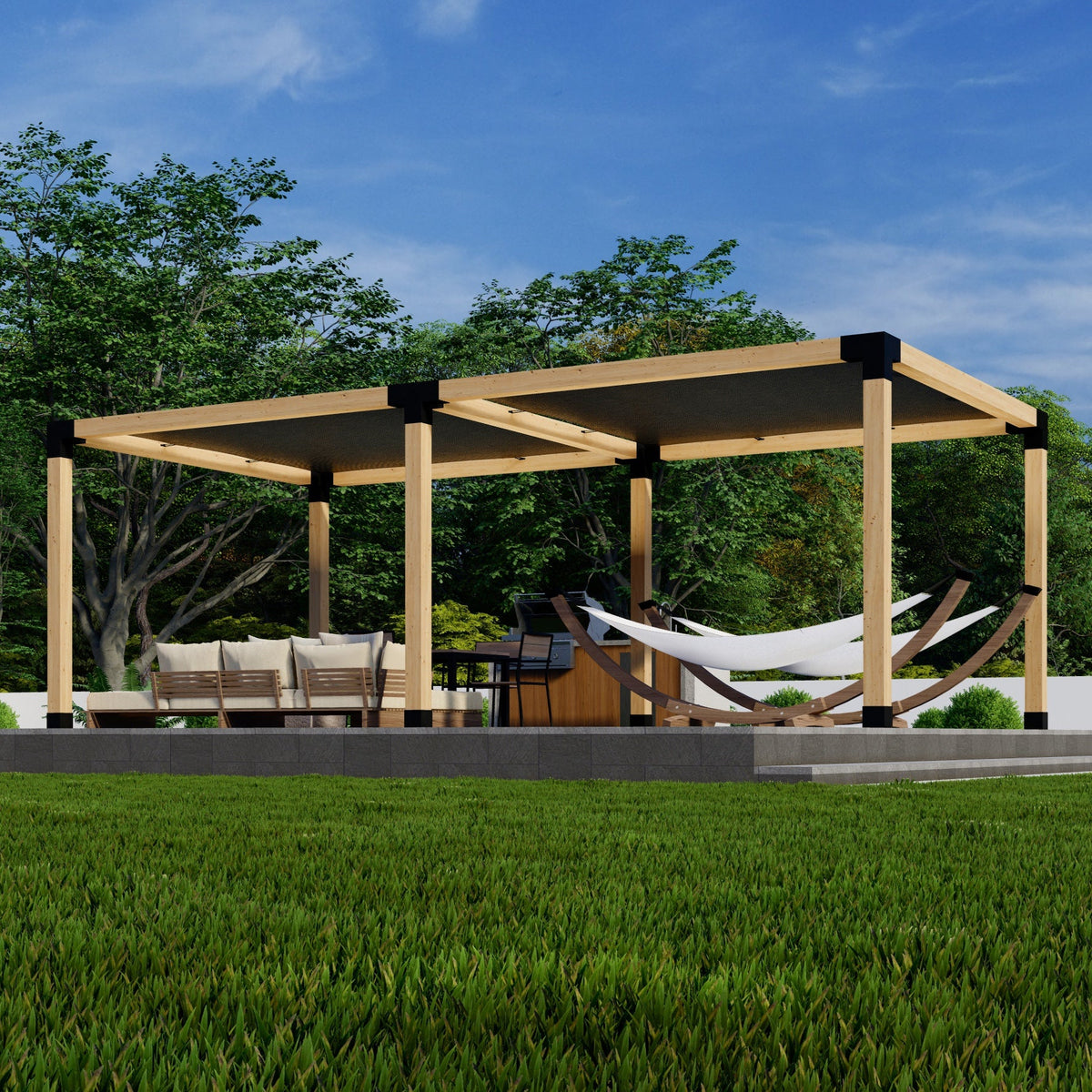

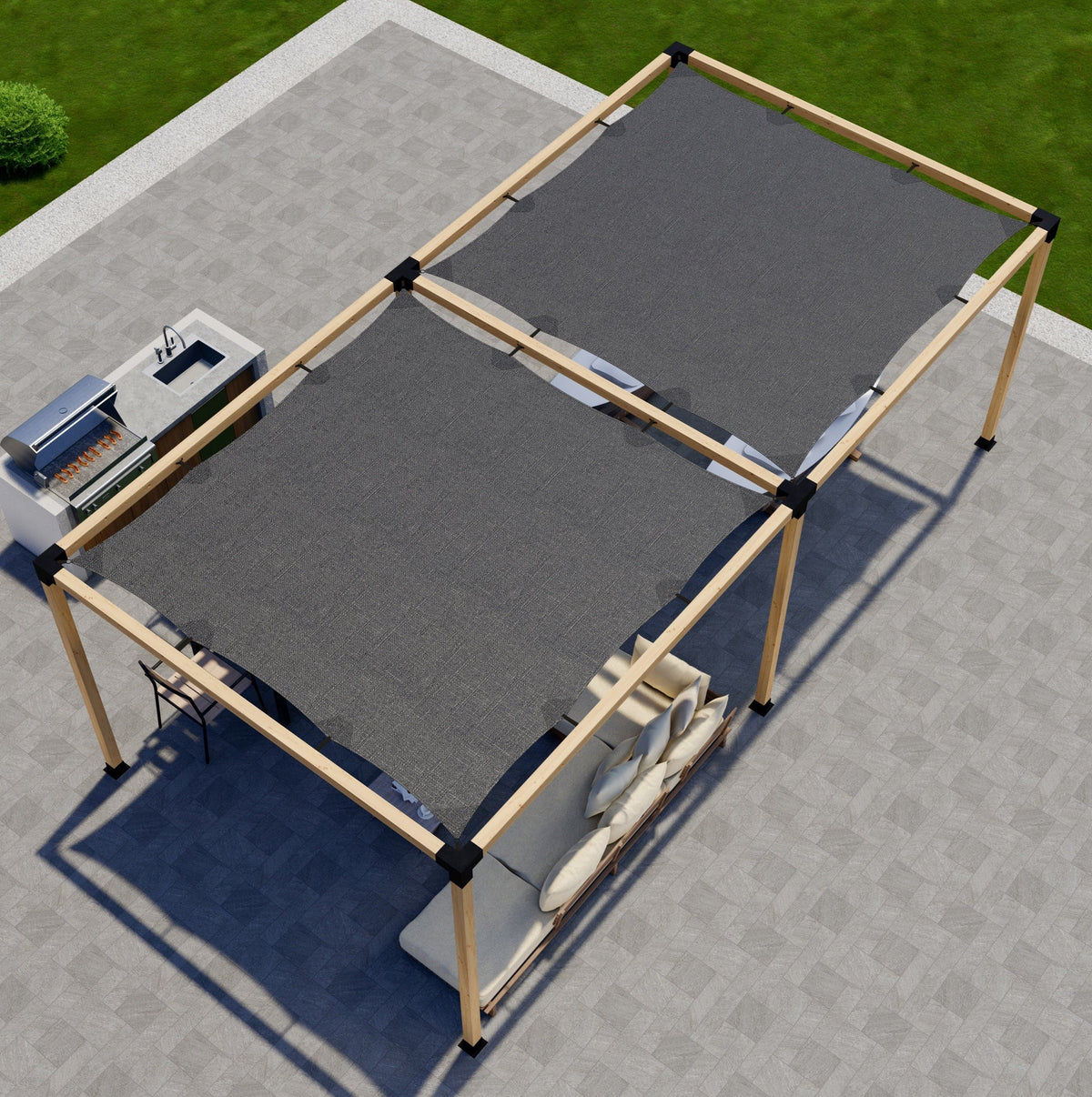

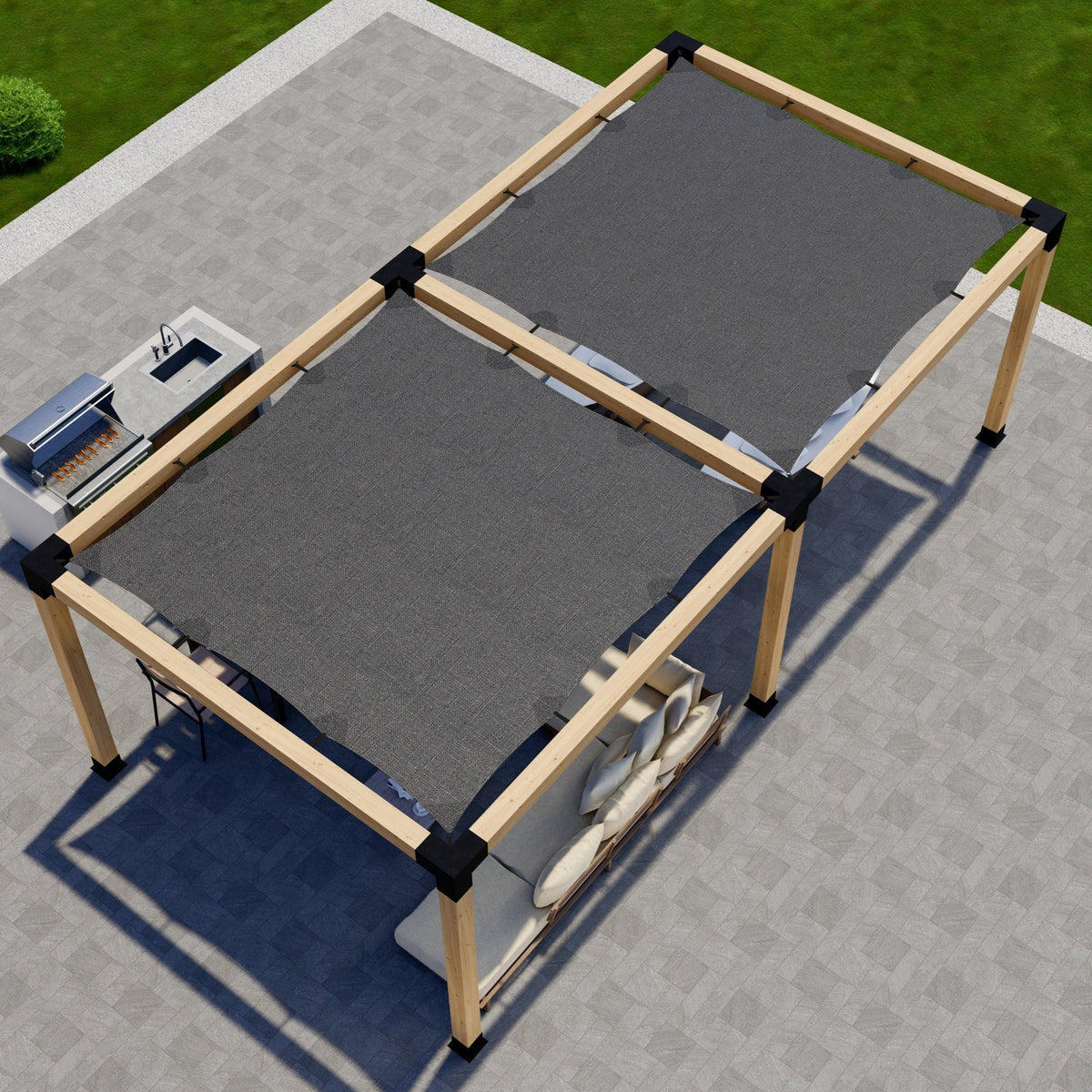

DIY Freestanding Pergola Kit with Shade Canopies – Up to 24' x 12'
Create a custom freestanding pergola with the Zen Pergola DIY Kit with Shade Canopies. Designed for a six-post, two-block pergola configuration, this kit can accommodate pergola sizes up to 24' x 12'. Choose between 4x4 or 6x6 post brackets and select from six shade canopy sizes to create a configuration that fits your outdoor space.
The kit includes the structural pergola brackets, two shade canopies with mounting brackets, and stainless steel #12 wood screws. Lumber and the anchoring hardware needed to secure the post base brackets to a solid foundation are not included and must be purchased separately.
Key Features
- Freestanding Design: Designed for a six-post, two-block pergola configuration.
- Flexible Pergola Size: Supports pergola layouts up to 24' x 12'.
- Two Post Bracket Options: Choose brackets designed for 4x4 or 6x6 posts.
- Two Shade Canopies: Includes two canopies with mounting brackets.
- Six Canopy Size Options: Choose from 8x8, 8x10, 8x12, 10x10, 10x12, or 12x12.
- HDPE Shade Fabric: Canopies are made from fade-resistant 180 GSM High-Density Polyethylene knitted fabric.
- UV Protection: Canopy fabric blocks up to 95% of UV rays.
- Permeable Fabric: The canopy material is designed to allow water to pass through rather than collect on top.
- Four Straps Per Side: Each side of the canopy includes four straps for securing and tensioning the fabric.
- Steel Pergola Brackets: Brackets are made from 12-gauge steel for 6x6 sizes and 14-gauge steel for other bracket sizes.
- Laser-Cut and Laser-Welded: Brackets are manufactured using laser cutting and welding.
- Pre-Drilled Holes: Designed with holes for securing lumber and accessories.
- Weather Coating: Brackets feature a coating intended for outdoor use.
- 5-Year Bracket Warranty: Pergola brackets are backed by a 5-year warranty.
- 1-Year Canopy Warranty: Shade canopies are backed by a 1-year warranty.

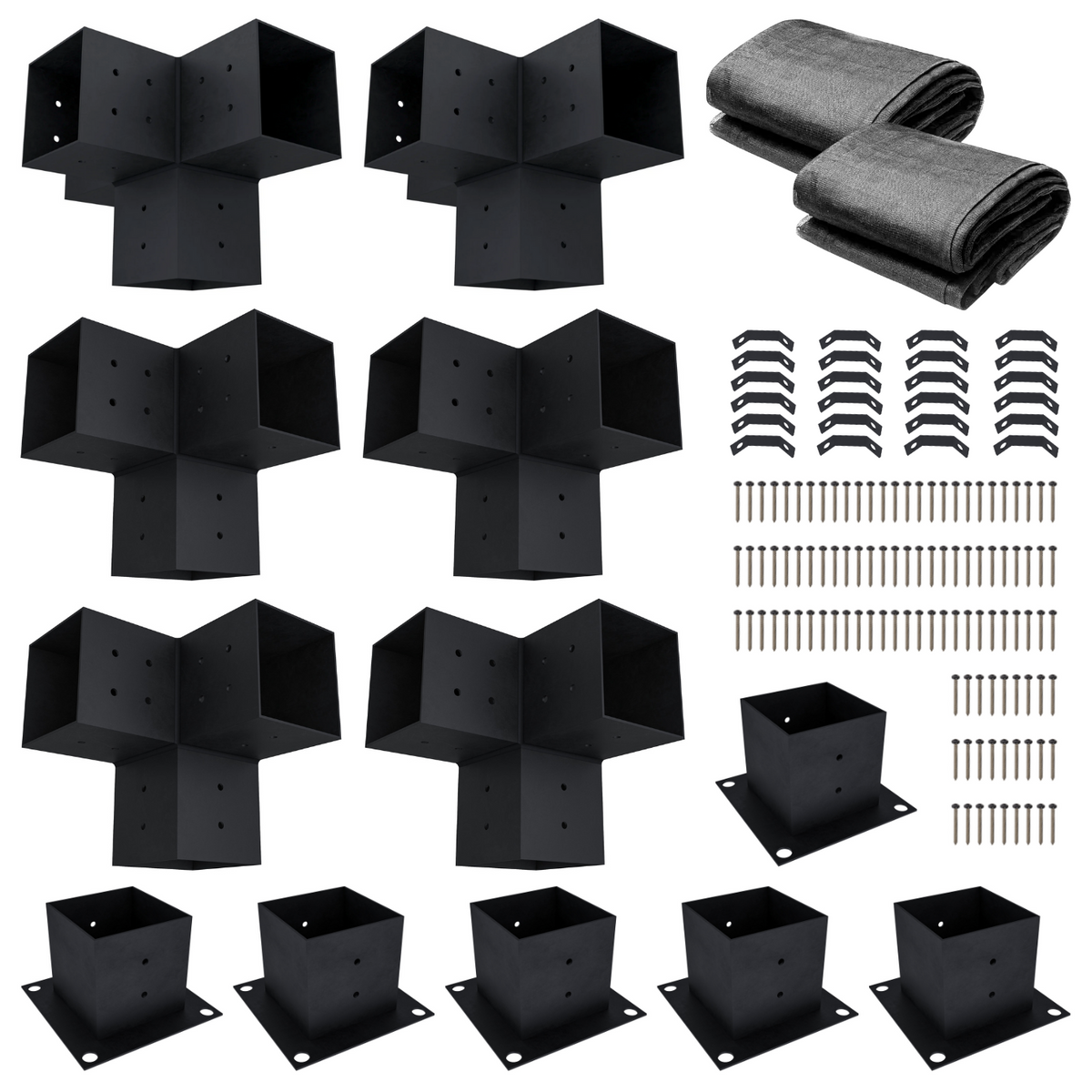

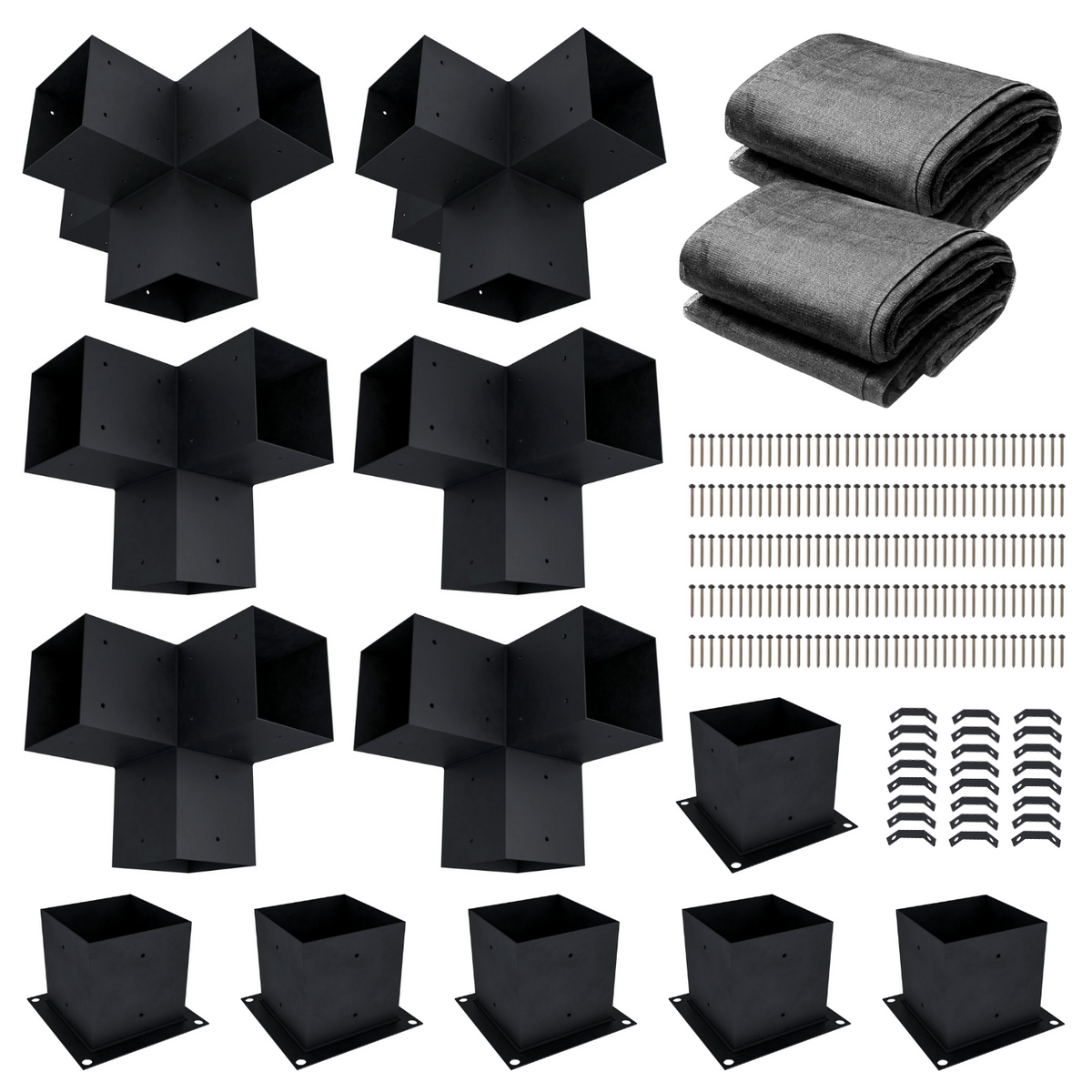

What's Included
- 6 × Post Base Brackets
- 4 × Corner 3-Arm Brackets
- 2 × Middle 4-Arm Brackets
- 2 × Shade Canopies
- Canopy Mounting Brackets
- #12 Stainless Steel Wood Screws
Shade Canopy Options
Choose from six canopy sizes to match your pergola configuration:
- 8' x 8'
- 8' x 10'
- 8' x 12'
- 10' x 10'
- 10' x 12'
- 12' x 12'
Important: The actual canopy fabric measures approximately 4 inches shorter than the stated size to allow space for the mounting hardware and straps.
Shade Canopy Construction
The canopies are made from fade-resistant 180 GSM HDPE knitted fabric. The material is designed to provide shade while allowing water to pass through the fabric. Each side includes four straps for attaching and tensioning the canopy. Mounting brackets and screws for securing the straps to the pergola brackets and roof beams are included.
Pergola Bracket Construction
Zen Pergola Brackets are designed to work with common 4x4 and 6x6 post sizes. The system uses 12-gauge steel for 6x6 bracket sizes and 14-gauge steel for other bracket sizes. The brackets are laser-cut and laser-welded and include pre-drilled holes for attaching wood and compatible accessories.
Lumber & Foundation Hardware
Lumber is not included with the kit. Wood for the posts, beams, and other pergola components must be purchased separately. Anchoring hardware for securing the post base brackets to a solid foundation is also not included and should be selected according to the foundation and installation requirements.
The kit does include the stainless steel #12 wood screws specified for assembling the bracket system.
Specifications
- Product Type: DIY Freestanding Pergola Kit
- Pergola Type: Freestanding
- Post Configuration: 6 Posts
- Pergola Layout: 2 Blocks
- Maximum Pergola Size: Up to 24' x 12'
- Post Bracket Options: 4x4 or 6x6
- Roof Style: Shade Canopies
- Canopy Quantity: 2
- Canopy Sizes: 8x8, 8x10, 8x12, 10x10, 10x12, or 12x12
- Canopy Fabric: 180 GSM HDPE Knitted Fabric
- Canopy UV Protection: Blocks up to 95% of UV Rays
- Canopy Straps: 4 Per Side
- 6x6 Bracket Material: 12-Gauge Steel
- Other Bracket Material: 14-Gauge Steel
- Manufacturing: Laser-Cut and Laser-Welded
- Post Base Brackets: 6
- Corner 3-Arm Brackets: 4
- Middle 4-Arm Brackets: 2
- Screws: #12 Stainless Steel Wood Screws
- Lumber Included: No
- Foundation Anchoring Hardware Included: No
- Bracket Warranty: 5 Years
- Shade Canopy Warranty: 1 Year
Important Installation Note
This kit includes the pergola brackets, shade canopies, canopy mounting hardware, and specified screws, but does not include lumber or foundation anchoring hardware. Verify your desired pergola dimensions, lumber requirements, foundation conditions, and anchoring method before beginning installation.
