DIY Freestanding Pergola Kit with Shade Canopies – Up to 24' x 24'

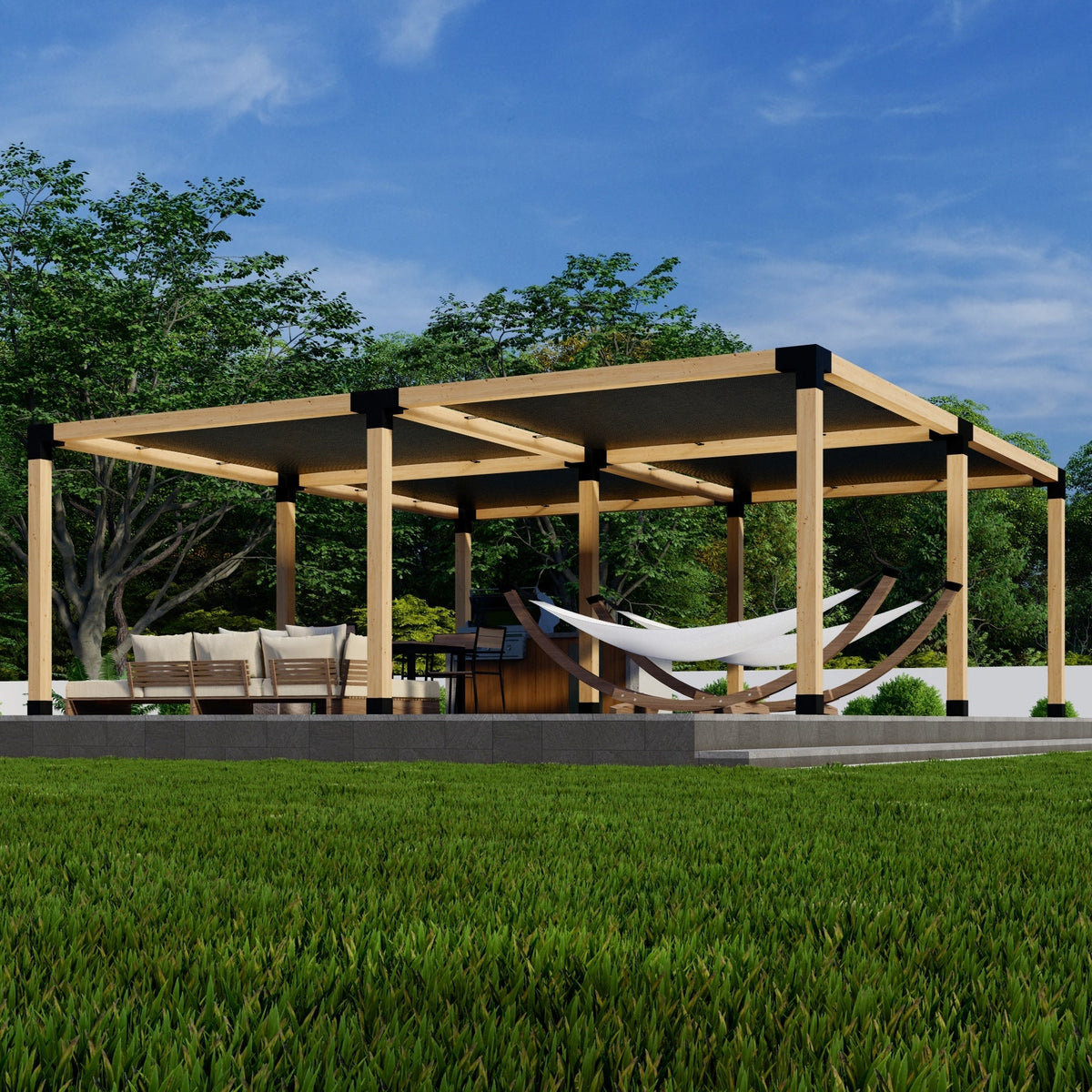

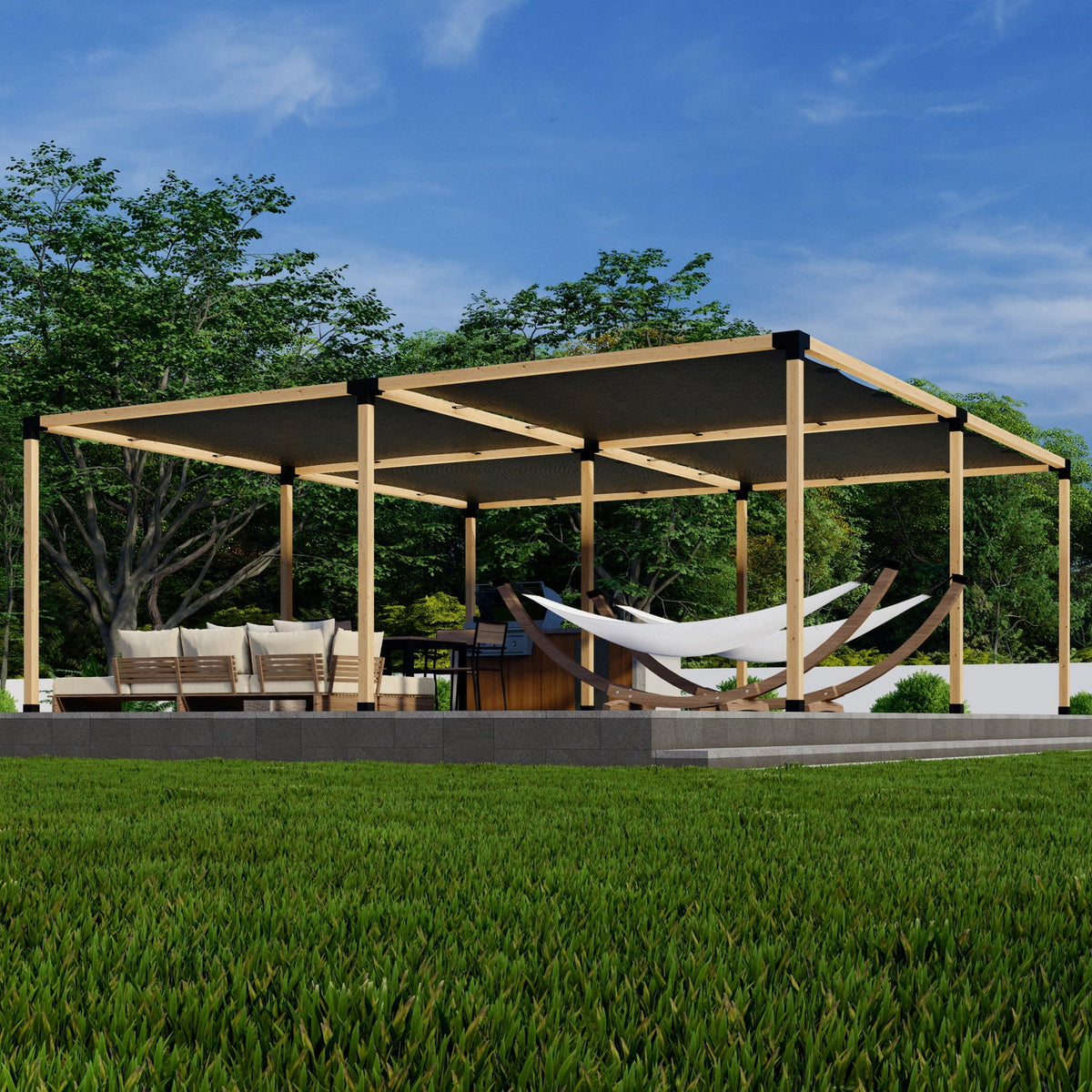

Build a custom freestanding pergola with this DIY bracket kit designed for a 9-post, 4-block configuration up to 24' x 24'. The kit includes the steel pergola brackets, shade canopies, canopy mounting hardware, and stainless steel wood screws needed to assemble the pergola framework and canopy roof.

Choose between 4x4 or 6x6 post brackets and source your lumber locally to create a pergola that fits your available space and preferred design. The shade canopy system provides a flexible roof option with six canopy sizes to choose from.

Key Features

• Designed for freestanding pergolas with 9 posts
• 4-block configuration for layouts up to 24' x 24'
• Choice of 4x4 or 6x6 post brackets
• Four shade canopies included
• Six canopy size options from 8' x 8' to 12' x 12'
• Fade-resistant 180 GSM HDPE knitted fabric
• Canopy fabric blocks up to 95% of UV rays
• Semi-permeable fabric helps reduce rain pooling
• Four straps on each side of the canopy for securing the fabric
• Laser-cut and laser-welded steel brackets
• Pre-drilled holes for securing wood and accessories
• Weather coating for outdoor applications
• Stainless steel #12 wood screws included
• 5-year warranty on brackets
• 1-year warranty on shade canopies

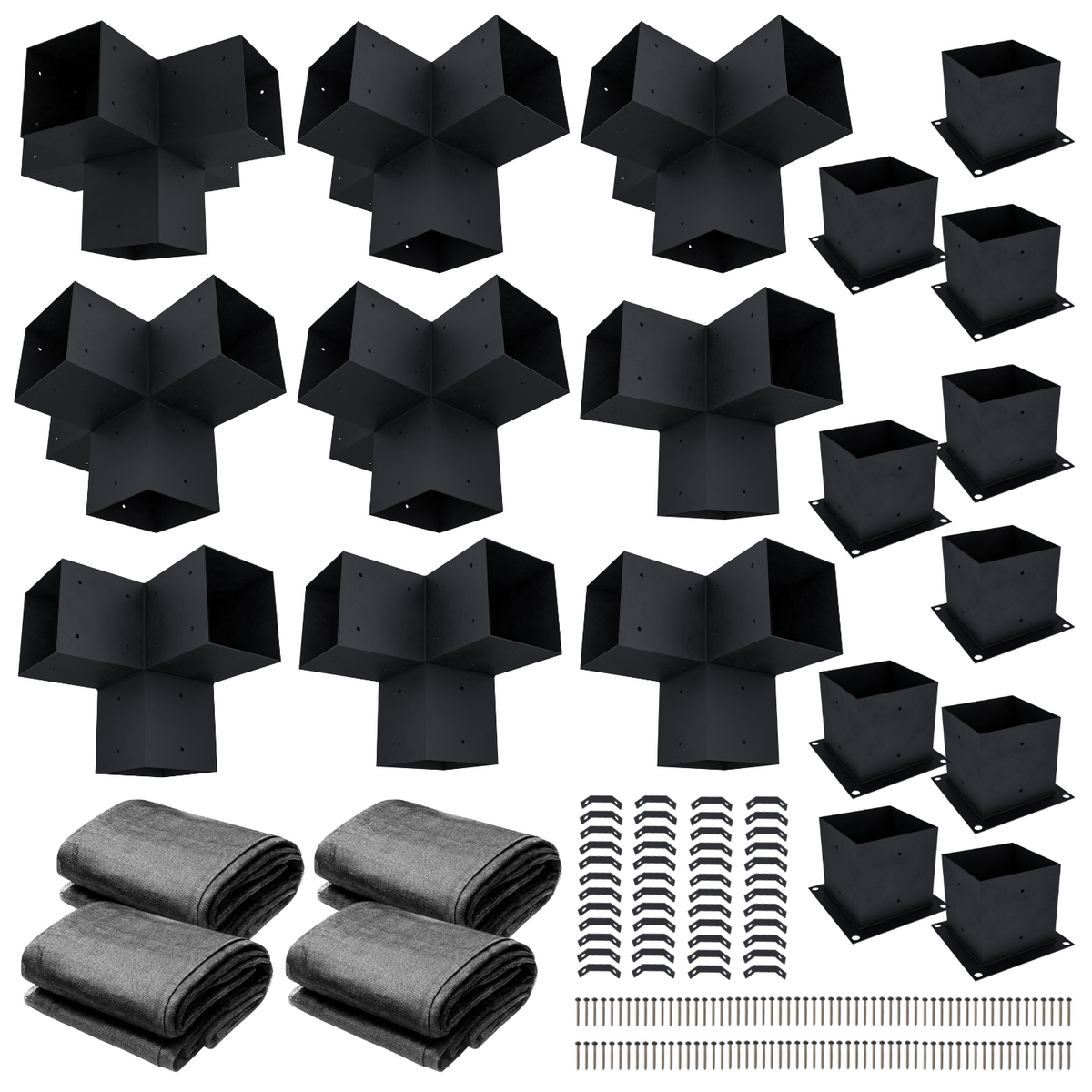

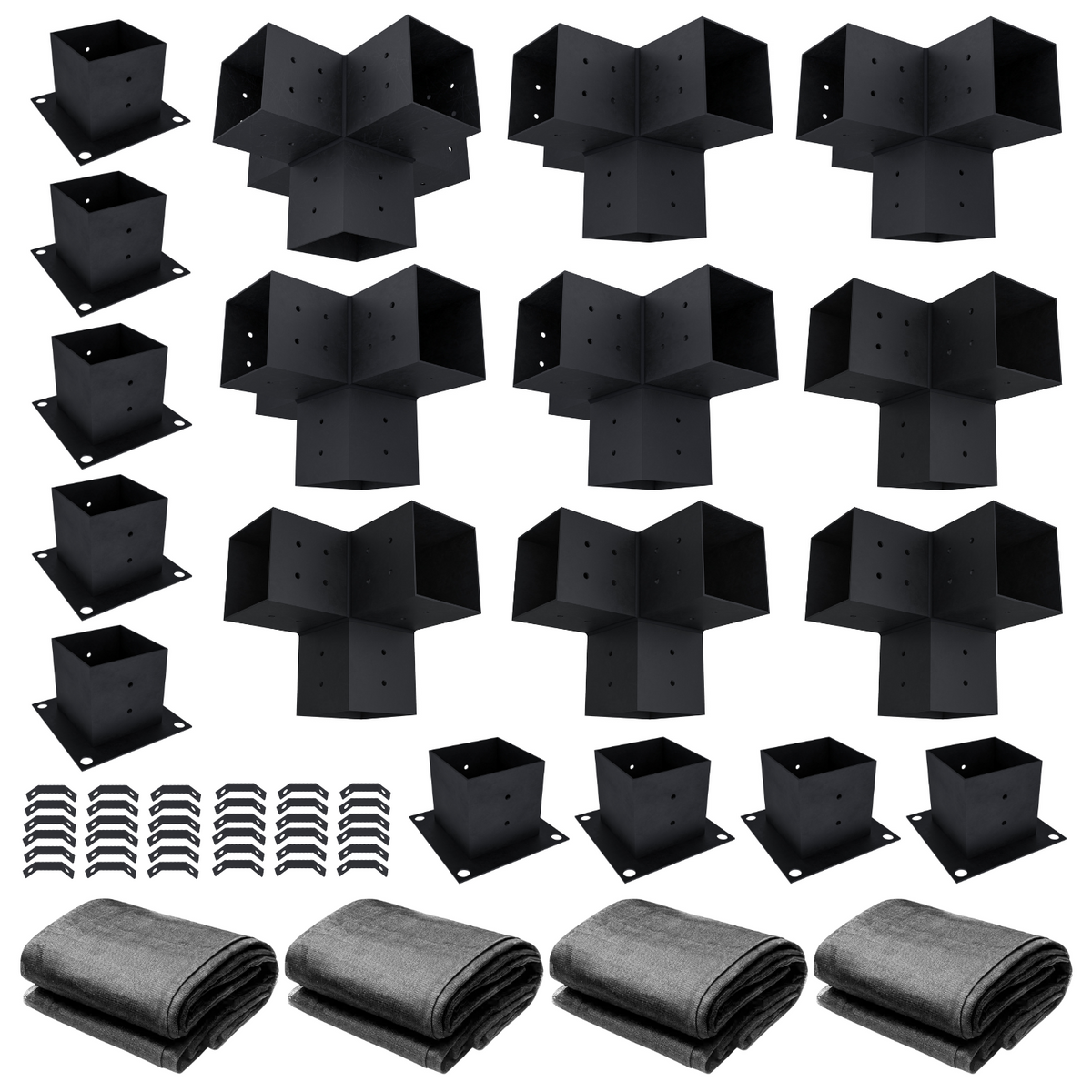

What's Included

• 9 × Post Base Brackets
• 4 × Corner 3-Arm Brackets
• 4 × Middle 4-Arm Brackets
• 1 × Central 5-Arm Bracket
• 4 × Shade Canopies
• Canopy mounting brackets and screws
• Stainless Steel #12 Wood Screws

Choose Your Bracket Size

Select the post bracket size that matches the lumber you plan to use:

• 4x4 Brackets: Designed for 4x4 wood posts
• 6x6 Brackets: Designed for 6x6 wood posts

The Zen bracket system is designed around common lumber sizes, including 4x4, 6x6, 2x4, and 2x6 dimensions. Lumber is not included and must be purchased separately.

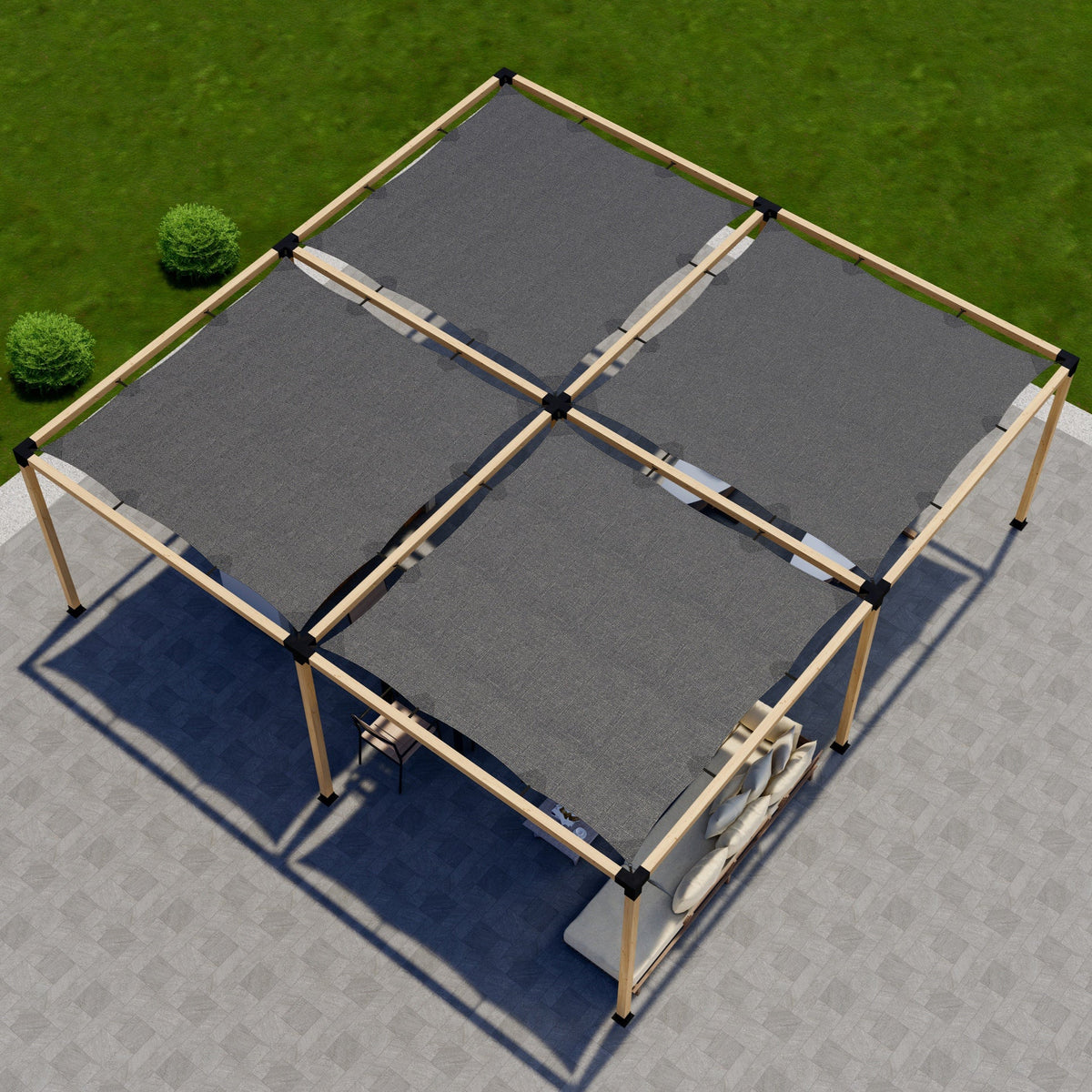

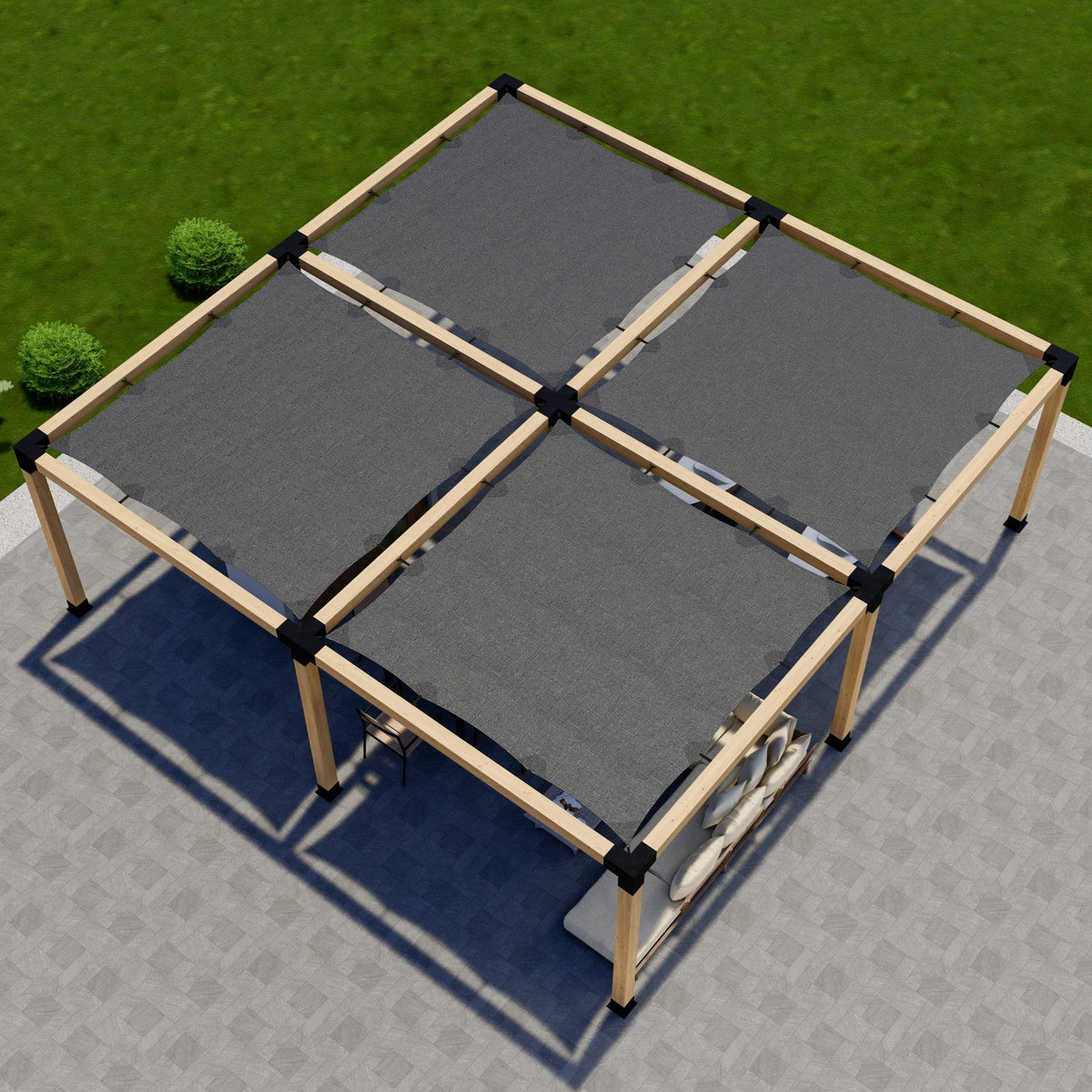

Shade Canopy Options

The kit includes four shade canopies. Choose from six available canopy sizes:

• 8' x 8'
• 8' x 10'
• 8' x 12'
• 10' x 10'
• 10' x 12'
• 12' x 12'

The actual canopy fabric measures approximately 4 inches shorter than the indicated size to allow space for the mounting hardware and straps.

Shade Canopy Construction

• 180 GSM high-density polyethylene (HDPE) knitted fabric
• Fade-resistant material
• Blocks up to 95% of UV rays
• Semi-permeable construction designed to help prevent rain from pooling on top
• Four straps on each side to help keep the canopy tight and minimize drooping
• Mounting brackets and screws included

Steel Bracket Construction

• 12-gauge steel for 6x6 brackets
• 14-gauge steel for other bracket sizes
• Laser-cut construction
• Laser-welded joints
• Pre-drilled mounting holes
• Weather coating for outdoor applications

What's Not Included

• Lumber/wood
• Anchoring hardware for securing the post base brackets to the foundation

Lumber and foundation anchoring hardware must be purchased separately. The appropriate anchoring method will depend on the foundation or installation surface and the specific project.

Specifications

Pergola Type	Freestanding
Post Configuration	9 posts
Layout	4-block
Maximum Pergola Size	Up to 24' x 24'
Roof Style	Shade canopies
Post Bracket Options	4x4 or 6x6
Shade Canopies	4 included
Canopy Sizes	8x8, 8x10, 8x12, 10x10, 10x12, or 12x12
Canopy Material	180 GSM HDPE knitted fabric
UV Protection	Blocks up to 95% of UV rays
Fasteners	Stainless steel #12 wood screws included
Bracket Warranty	5 years
Canopy Warranty	1 year
Shipping Origin	Boise, Idaho, USA

Important Installation Note

This is a DIY bracket and canopy kit; lumber and foundation anchoring hardware are not included. Before installation, verify that the selected lumber, foundation, anchoring method, canopy configuration, and overall pergola design are appropriate for the intended location and comply with applicable local requirements.
