Zen Pergolas DIY Pergola Kit for an Attached Pergola With Canopies - Any Size Up to 24' x 24'

DIY Attached Pergola Kit with Shade Canopies – Up to 24' x 24'

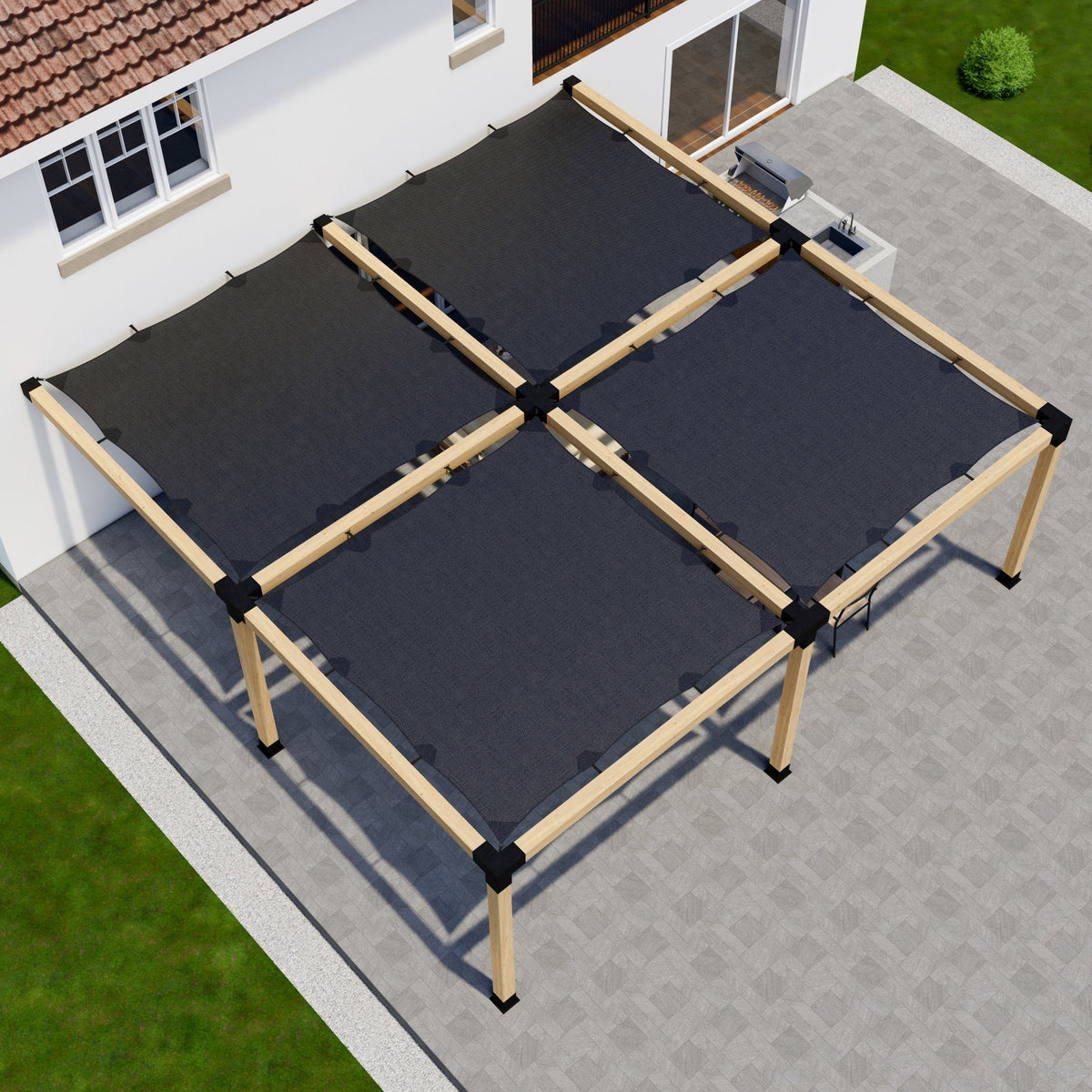

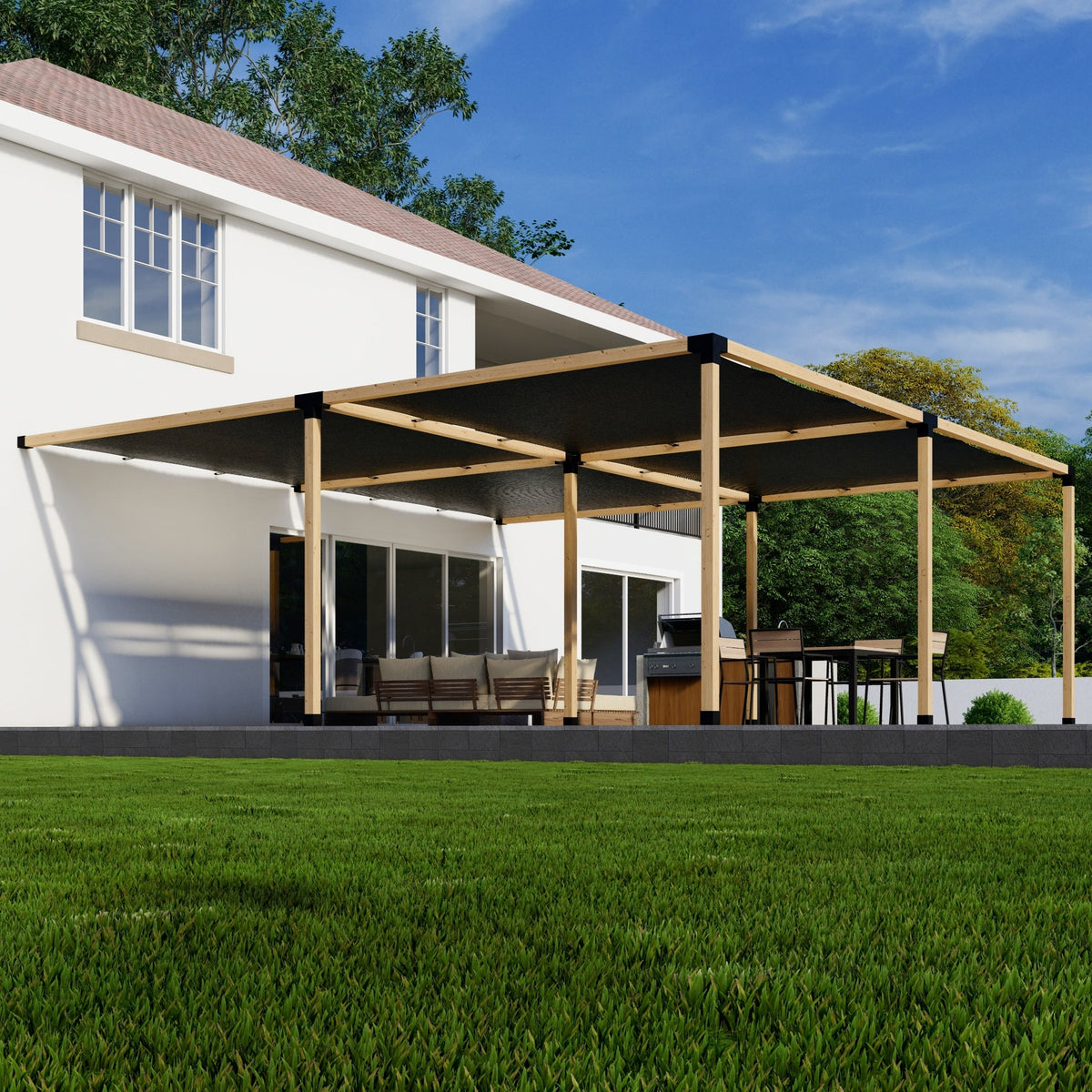

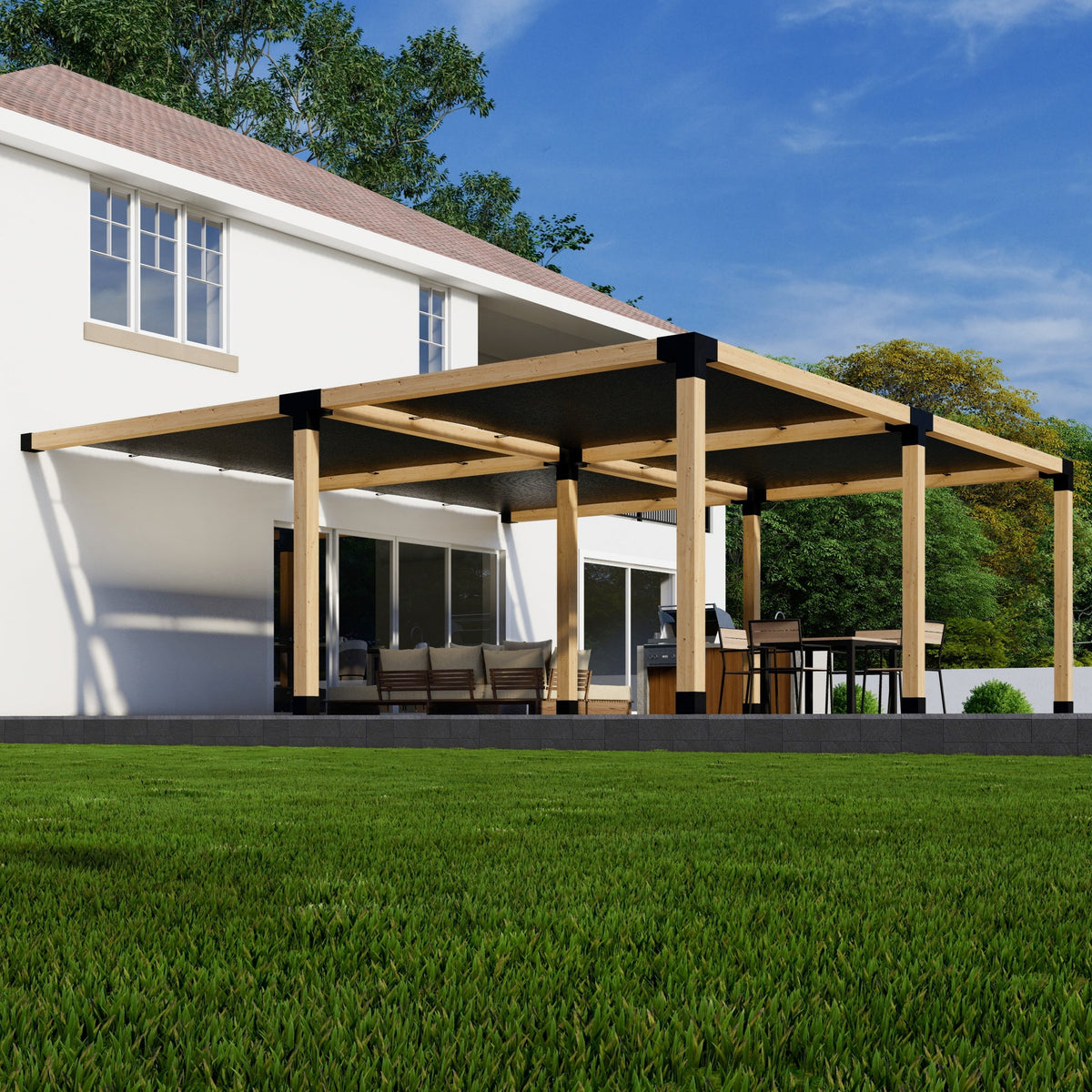

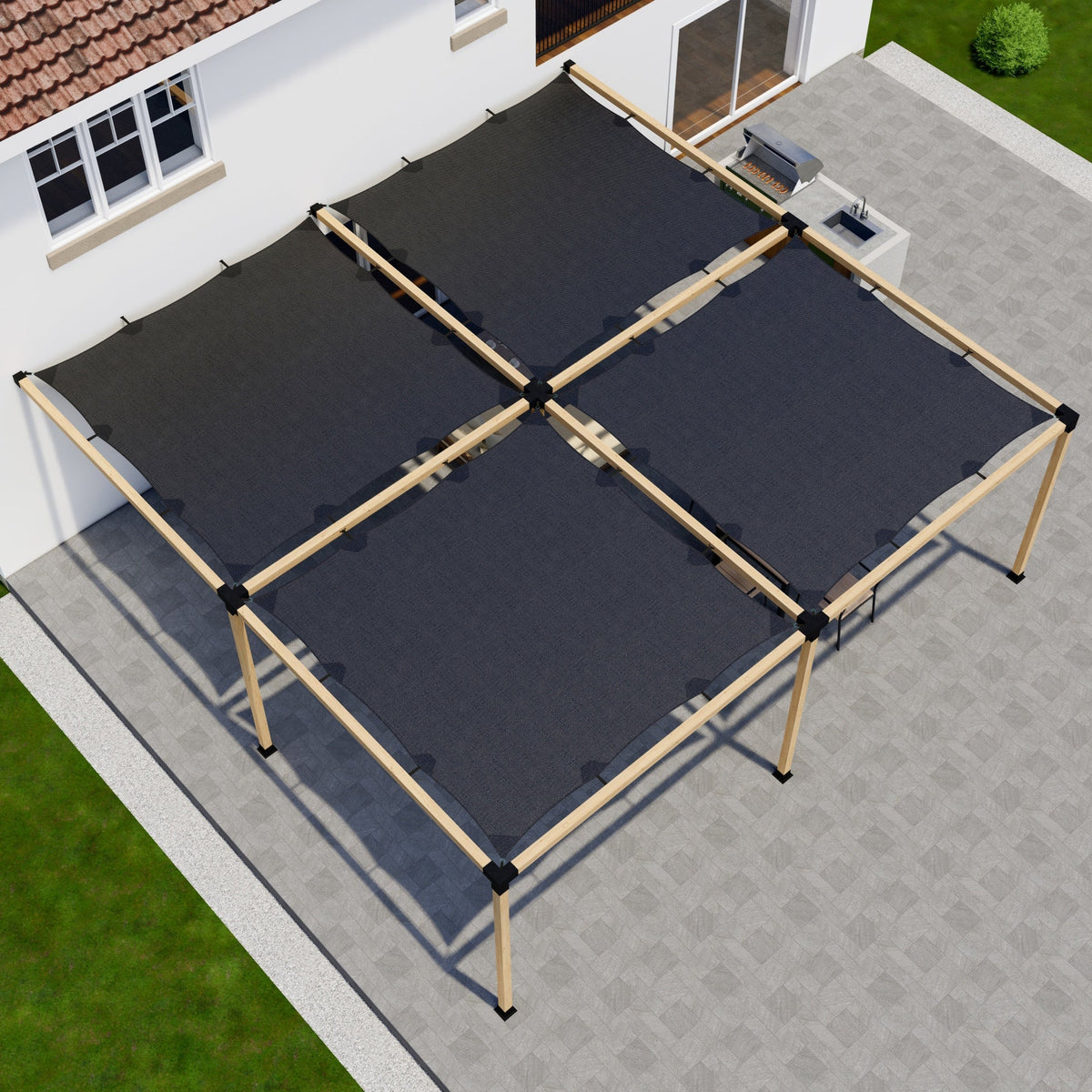

Create a custom attached pergola with this DIY bracket kit designed for a 6-post, 4-block configuration up to 24' x 24'. The kit includes the steel brackets, shade canopies, canopy mounting hardware, and stainless steel wood screws needed for the pergola framework and canopy system.

Choose between 4x4 or 6x6 post brackets and customize the pergola with locally sourced lumber. The shade canopy roof provides an alternative to a traditional wood-slat roof while allowing you to select canopy sizes that fit your planned pergola layout.

Key Features

• Designed for pergolas attached to a house
• 6-post, 4-block configuration
• Supports pergola layouts up to 24' x 24'
• Choice of 4x4 or 6x6 post brackets
• Shade canopy roof system
• Four shade canopies included
• Six canopy size options from 8' x 8' to 12' x 12'
• Fade-resistant 180 GSM HDPE knitted fabric
• Canopy fabric blocks up to 95% of UV rays
• Semi-permeable fabric design helps reduce water pooling
• Four straps per canopy side for securing the fabric
• Laser-cut and laser-welded steel brackets
• Pre-drilled holes for securing wood and accessories
• Stainless steel #12 wood screws included
• 5-year warranty on brackets
• 1-year warranty on shade canopies

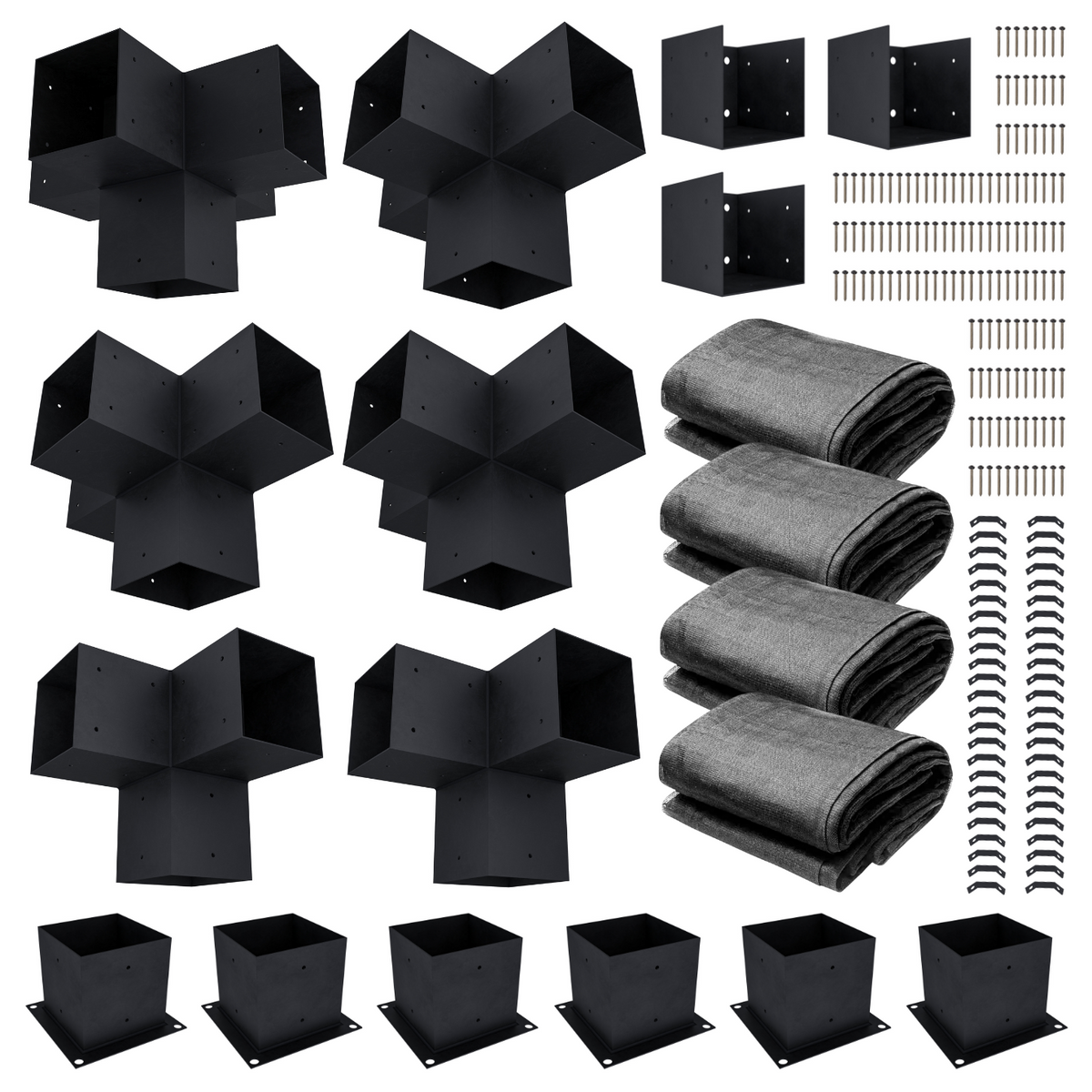

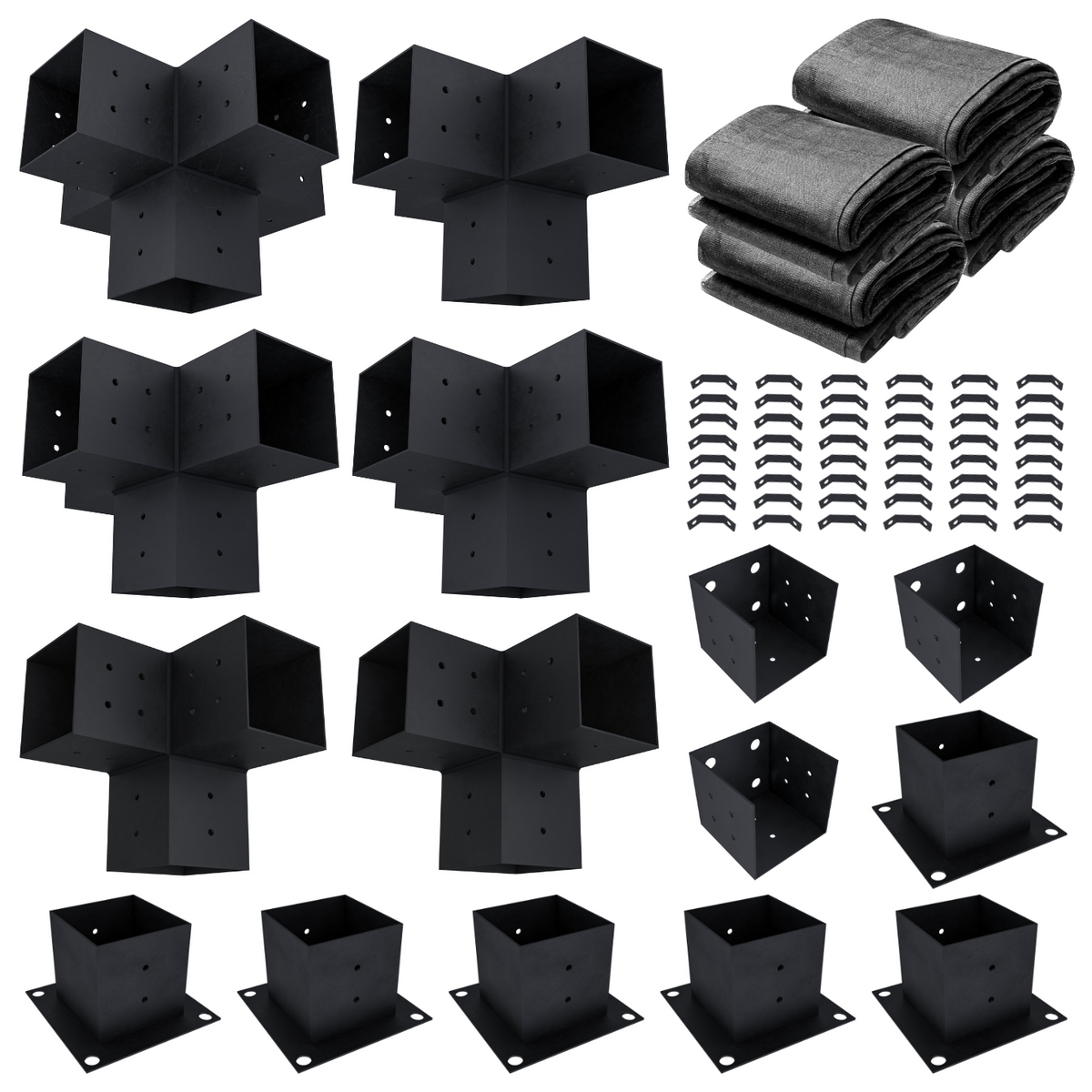

What's Included

• 6 × Post Base Brackets
• 3 × Wall Mount Brackets
• 2 × Corner 3-Arm Brackets
• 3 × Middle 4-Arm Brackets
• 1 × Central 5-Arm Bracket
• 4 × Shade Canopies
• Canopy mounting brackets and screws
• Stainless Steel #12 Wood Screws

Choose Your Bracket Size

Select the post bracket size that matches the lumber you plan to use:

• 4x4 Brackets: Designed for 4x4 wood posts
• 6x6 Brackets: Designed for 6x6 wood posts

The Zen bracket system is designed around common lumber dimensions, including 4x4, 6x6, 2x4, and 2x6 sizes. Lumber is not included and must be sourced separately.

Shade Canopy Options

The kit includes four shade canopies. Choose from six available canopy sizes:

• 8' x 8'
• 8' x 10'
• 8' x 12'
• 10' x 10'
• 10' x 12'
• 12' x 12'

The actual canopy fabric is approximately 4 inches shorter than the stated canopy size to provide space for the mounting hardware and straps.

Shade Canopy Construction

• 180 GSM high-density polyethylene (HDPE) knitted fabric
• Fade-resistant material
• Blocks up to 95% of UV rays
• Semi-permeable construction designed to help prevent rain from pooling on the canopy
• Four straps on each side to secure the canopy and help minimize drooping
• Mounting brackets and screws included

Steel Bracket Construction

• 12-gauge steel for 6x6 brackets
• 14-gauge steel for other bracket sizes
• Laser-cut construction
• Laser-welded joints
• Pre-drilled mounting holes
• Weather coating for outdoor applications

What's Not Included

• Lumber/wood
• Anchoring hardware for the post base brackets
• Anchoring hardware for the wall mount brackets

The appropriate foundation and wall anchoring hardware depends on the installation surface and the specific project. Source the required anchoring hardware locally based on the structure and applicable installation requirements.

Specifications

Pergola Type	Attached to house
Post Configuration	6 posts
Layout	4-block
Maximum Pergola Size	Up to 24' x 24'
Roof Style	Shade canopies
Post Bracket Options	4x4 or 6x6
Shade Canopies	4 included
Canopy Sizes	8x8, 8x10, 8x12, 10x10, 10x12, or 12x12
Canopy Material	180 GSM HDPE knitted fabric
UV Protection	Blocks up to 95% of UV rays
Fasteners	Stainless steel #12 wood screws included
Bracket Warranty	5 years
Canopy Warranty	1 year
Shipping Origin	Boise, Idaho, USA

Important Installation Note

This kit is designed for attachment to an existing house structure. Lumber and anchoring hardware for both the post bases and wall mount brackets are not included. Before installation, verify the suitability of the attachment point, foundation, lumber, anchoring method, canopy configuration, and overall pergola design for the intended location and applicable local requirements.
