HydroMist USA 1 Wall Mount Misting Fan Package w/ ProMist 35 Pump w/ Filter

Premium 18-Inch Shrouded High-Velocity Oscillating Fan, ProMist 35 Enclosed 1000 PSI Pump, Integrated Central Hub Ring, Premium Residential & Commercial Patio Climate Suite

Deliver an uncompromised, localized standard of climate modification, open-air heat relief, and targeted temperature suppression with the HydroMist USA 1 Wall Mount Misting Fan Package w/ ProMist 35 Pump w/ Filter. Perfectly curated as an all-in-one residential and commercial outdoor conditioning infrastructure for high-end backyard patios, outdoor kitchens, restaurant decks, and animal stalls, this comprehensive do-it-yourself package includes everything needed to drop ambient outdoor temperatures by up to 25°F.

The system centers around a premium, outdoor-rated 18-inch high-velocity oscillating fan paired with the whisper-quiet ProMist 35 Enclosed 1000 PSI High-Pressure Misting Pump. Utilizing HydroMist's iconic internal hub engineering, high-pressure fluid lines route cleanly up the wall mounting bracket directly to a center-mounted nozzle ring, completely eliminating messy hanging external hoses. By compressing water at 1000 PSI, the system forces water through microscopic orifices to create a true ultra-fine micro-mist that flash-evaporates instantly into the high-velocity air current, delivering crisp, deep cooling without wetting walkways, furniture, clothing, or surrounding outdoor electronics.

Key Product Features & Complete System Engineering

• Premium 18-Inch High-Velocity Shrouded Fan: Includes an outdoor-rated, heavy-duty 18-inch shrouded oscillating wall-mount fan. The specialized aerodynamic shroud layout focuses and concentrates the thermal vector, throwing the flash-evaporation field further and more evenly than traditional open-cage fans.

• ProMist 35 Enclosed 1000 PSI Workhorse: Driven by a premium direct-drive 1/3 HP motor pump block that maintains a stable, continuous 1000 PSI operational pressure, drastically outperforming entry-level low-pressure 300 PSI units.

• Integrated 4-Mode Pulse Timer Logic: Built with an on-pump programmable control panel featuring four distinct cycle settings (Mist Always On, 15s On/20s Off, 25s On/30s Off, 40s On/40s Off) to easily manage changes in local humidity and optimize water consumption.

• Integrated Hub-Center Misting Nozzle Ring: Features a matching misting ring mounted directly to the center hub of the fan. This provides an elegant, clean look while maximizing mist atomization directly in the primary airflow path.

• Smart Low-Water Automatic Safeguard: Equipped with an intelligent low-pressure inlet microfilm safety sensor switch that automatically cuts power to the pump core if the utility intake supply goes dry, preventing seal burn-out.

• Single-Stage Micron Filtration Canister: Features an integrated 5-inch / 5-micron active water sediment filter cartridge that traps particles and scale before they reach the lines, eliminating nozzle-clogging mineral buildup.

Technical Specifications Summary

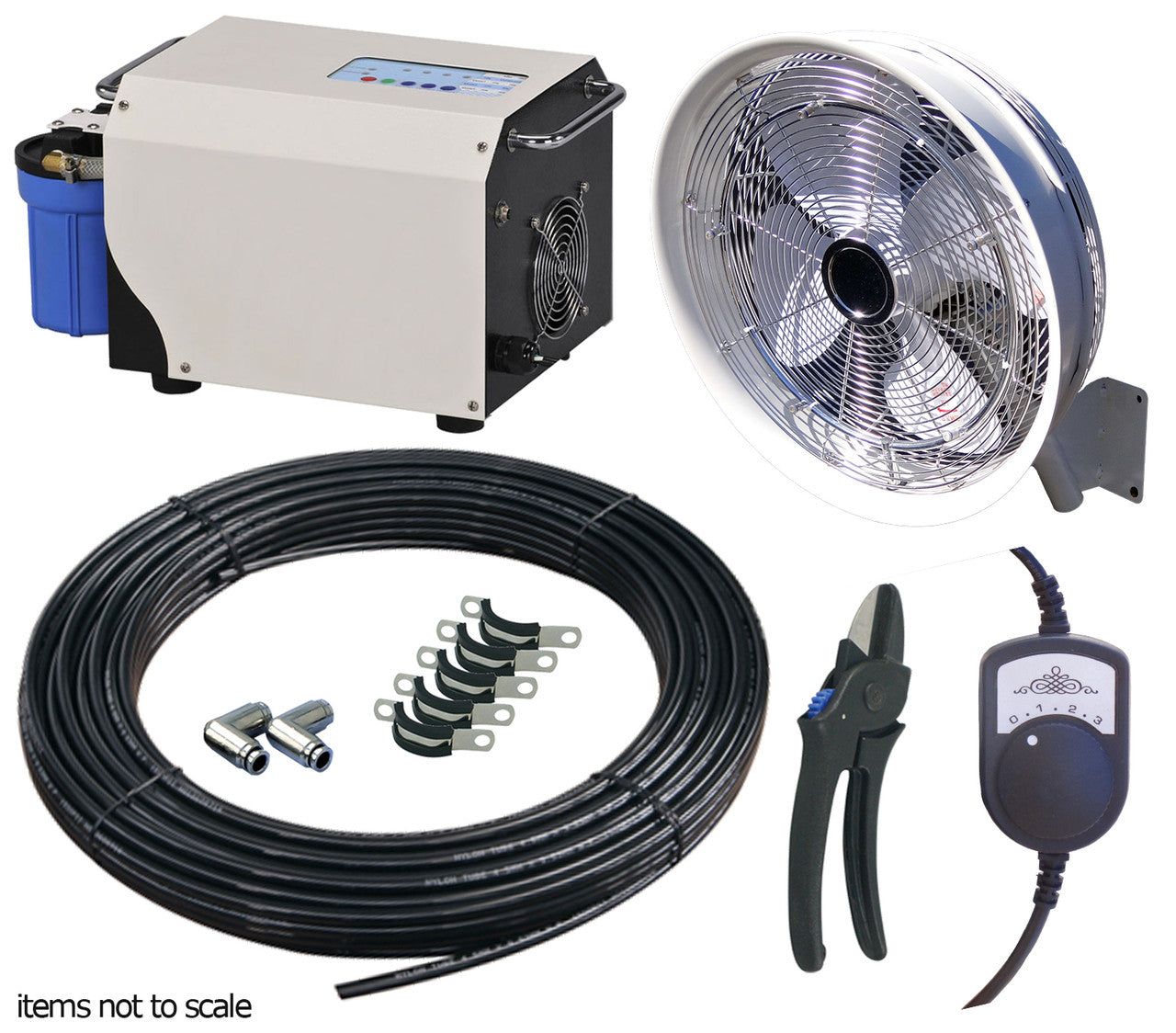

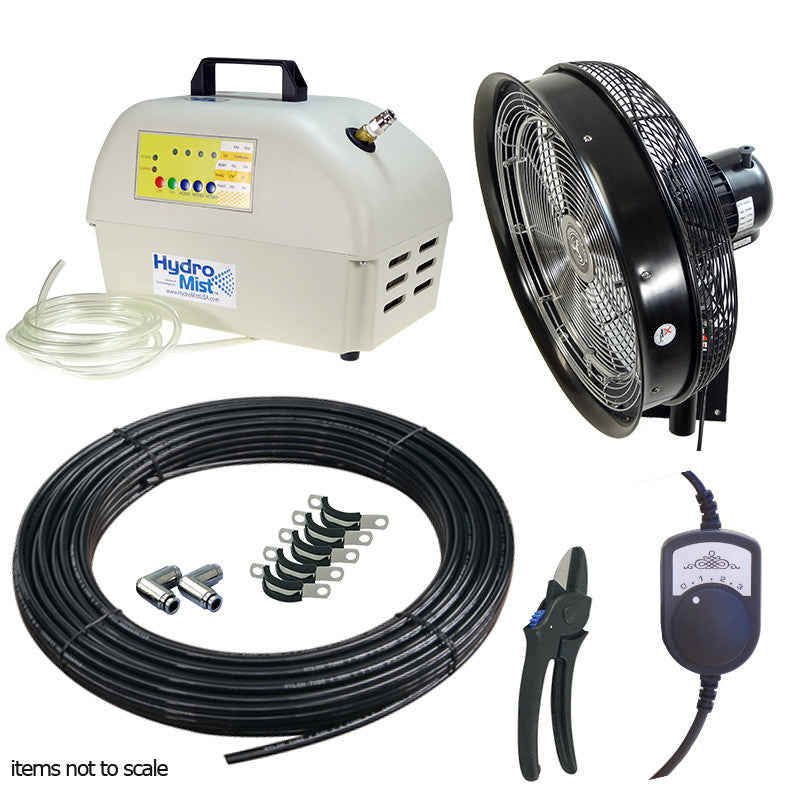

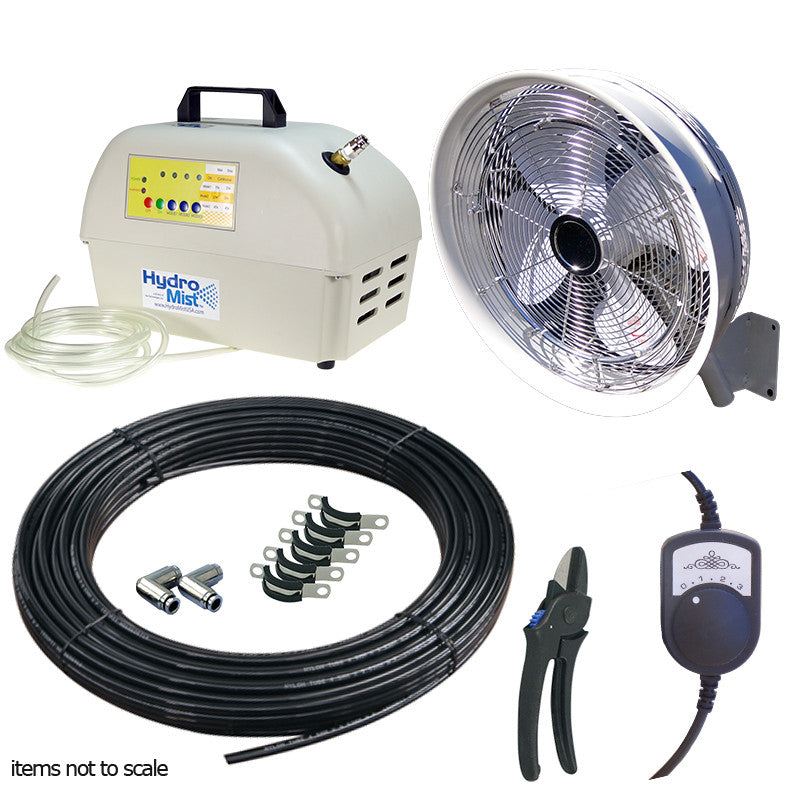

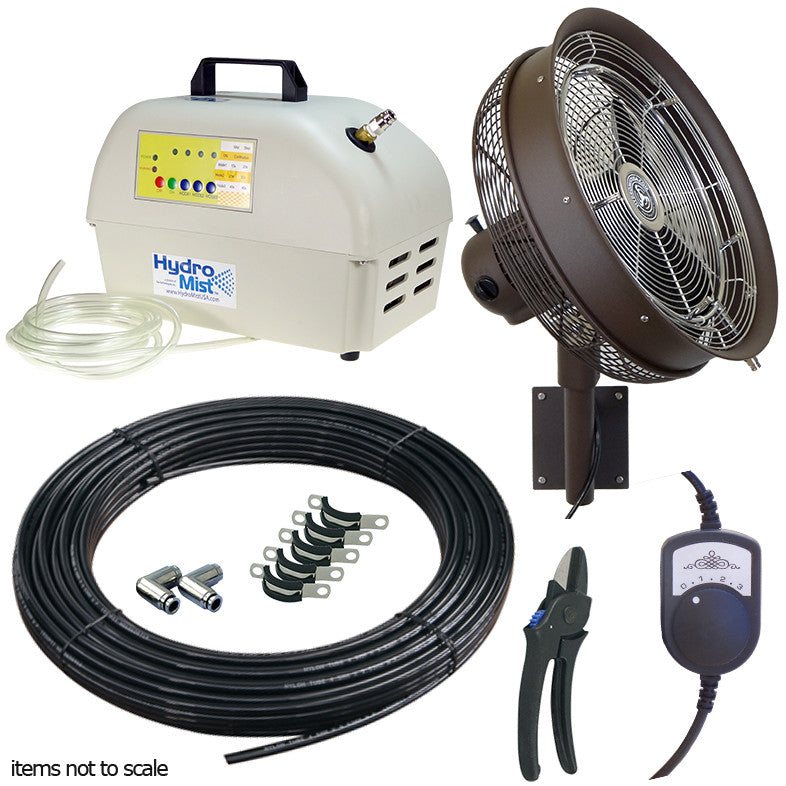

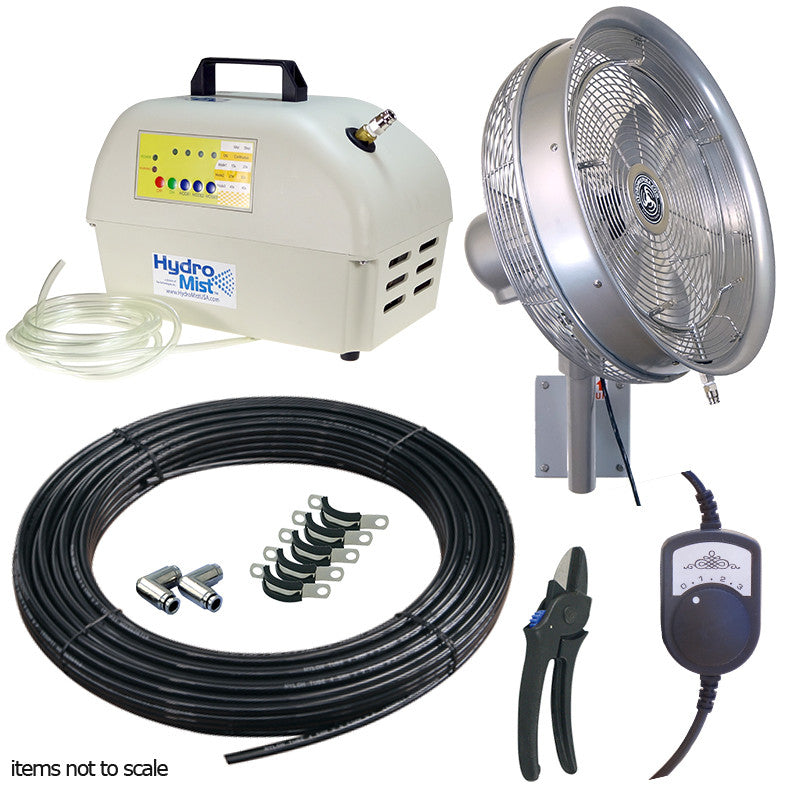

Comprehensive System Packaging List

• 1 × HydroMist 18-Inch High-Velocity Oscillating Shrouded Fan

• 1 × Heavy-Duty Industrial Structural Wall Mount Bracket Assembly

• 1 × HydroMist ProMist 35 1000 PSI Enclosed High-Pressure Pump Unit

• 1 × Integrated Hub-Center Misting Nozzle Ring with Drip-Free Orifices

• 1 × Pre-Installed 5-Inch / 5-Micron Active Sediment Filter Cartridge

• 1 × Master High-Pressure Tubing & Quick-Connect Allocation Installation Kit

• 1 × Master Step-by-Step System Installation Blueprint & Field Operation Manual

Critical Field Installation & Maintenance Guidelines

• Structural Wall Mount Anchor Mandate: To manage the torque and motion of high-velocity 90° fan oscillation safely, the wall mount bracket must be anchored directly into a solid structural wood stud, post, header beam, or reinforced masonry. Do not attach it to unreinforced siding or drywall.

• Outdoor Well-Ventilated Placement Only: This industrial-grade system is strictly engineered for outdoor use or within exceptionally large, well-ventilated open commercial structures. Operating it inside tight enclosed residential rooms will cause localized humidity to spike to absolute saturation, resulting in heavy water condensation on walls and furniture.

• Winterization Drainage Protocol: Before long-term seasonal storage or ahead of sub-freezing winter weather, fully disconnect the 3/4" garden hose inlet, unthread the 5-inch filter housing to empty the water log, and clear out the lines with compressed air to protect the internal 3-piston pump block from ice fractures.
