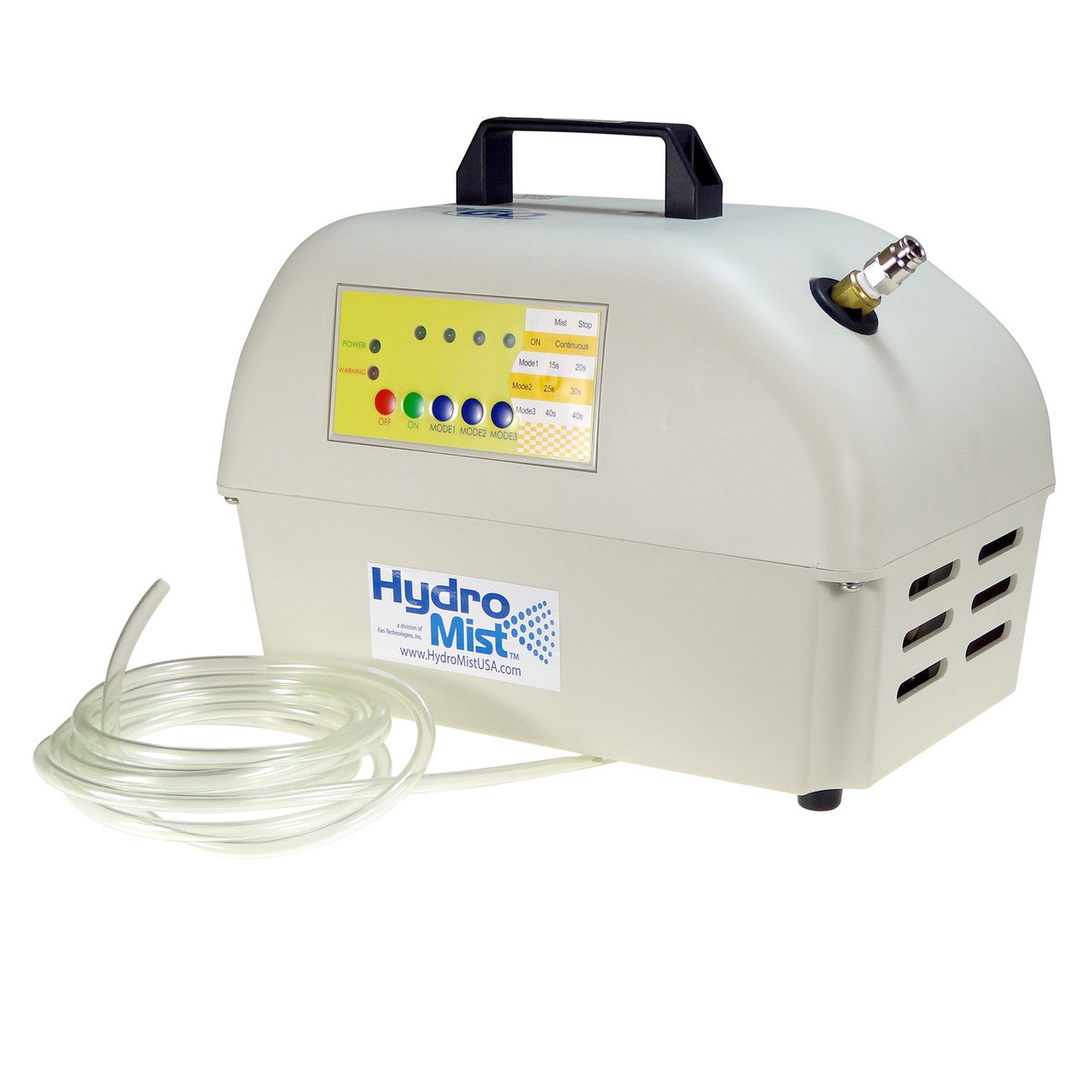

HydroMist USA ProMist 35 High-Pressure Misting Pump with Handle - Resin Case Edition

Portable Weatherized Hard-Case Enclosure, 1/3 HP Direct-Drive Motor, 1000 PSI Continuous Atomization Engine, 16-Nozzle Mobile Commercial Cooling Core

Sustain an exceptional standard of mobile climate modification, job-site heat relief, and field-adaptable temperature suppression with the HydroMist USA ProMist 35 High-Pressure Misting Pump with Handle - Resin Case Edition. Ingeniously engineered as a heavy-duty portable recovery asset for pop-up hospitality events, construction zones, outdoor athletic fields, and temporary animal stalls, this specialized model takes the proven ProMist 35 platform and houses it inside a rugged, impact-resistant resin utility case with a molded carry handle. Driven by an energy-efficient 1/3 HP motor, this self-contained, travel-ready system maintains a stable, high-load operational pressure of 1000 PSI to drive anywhere from 4 to 16 independent misting nozzles simultaneously without experiencing line stuttering or drops in efficiency.

By compressing water molecules under intense mechanical force, the internal direct-drive pump atomizes water into micro-droplets that flash-evaporate upon contacting the open air current. This photo-thermal process dramatically strips heat out of your environment—lowering open ambient temperatures by up to 25°F without leaving a wet residue on walkways, equipment, or seating areas. Enclosed in a travel-ready shell that safeguards the motor from dust and direct splashes while dampening noise to a whisper-quiet profile, this portable pump delivers elite commercial-grade cooling that can be packed up and deployed anywhere at a moment's notice.

Key Product Features & Mobile-Ready Engineering

• Weatherized Resin Enclosure with Carry Handle: Built inside a durable, impact-resistant hard-shell resin case outfitted with a balanced top handle. This travel-grade armor shields the interior electrical and mechanical core from job-site impacts, dirt, and water splashes while simplifying transportation.

• Four Programmable Misting Interlock Modes: Features an intelligent control array with 4 integrated pulse-timer cycles to accommodate fluctuations in surrounding humidity and optimize water conservation:

  • Press On Mode: Continuous, non-stop high-pressure mist streams.

  • Mode 1 Intermittent: 15 seconds of misting followed by 20 seconds of rest (Repeat).

  • Mode 2 Intermittent: 25 seconds of misting followed by 30 seconds of rest (Repeat).

  • Mode 3 Intermittent: 40 seconds of misting followed by 40 seconds of rest (Repeat).

• Smart-Plug Phone Control Integration: Upgraded with smart-plug compatibility. Operators can integrate the pump system block directly into their favorite smart plugs to toggle the misting stream on and off remotely from a smartphone.

• Integrated Low-Water Automatic Safeguard: Outfitted with a smart low-pressure inlet sensor coupled with a front-facing red LED mode indicator. The system automatically cuts power to the core if the water supply line goes dry, protecting internal seals from burning out.

• Enclosed Whisper-Quiet Design: The insulated resin casing naturally dampens motor harmonics, ensuring that it can be deployed near guests, athletes, or dining spaces without creating disruptive noise pollution.

Technical Specifications Summary

Comprehensive System Packaging List

• 1 × HydroMist USA ProMist 35 1/3 HP Pump Core (Pre-Installed in Resin Utility Case)

• 1 × Integrated Molded Top-Carry Balance Handle & External Latches

• 1 × Integrated 3/8″ Push-Lock Compression Fitting for Nylon Mist Lines

• 1 × Pre-Loaded Internal Pump Conditioning Lubricant Oil Reservoir

• 1 × Built-In Thermo Reset Button Protection Interface

• 1 × Heavy-Gauge Grounded 120V AC Power Supply Cable

• 1 × Master Quick-Connect Installation Blueprint & Field Operation Manual

Critical Field Installation & Maintenance Guidelines

• Strict Nozzle Loading Limits: To lock the system into a true 1000 PSI fine atomization sweet spot, ensure your connected mist lines house a minimum of 4 and a maximum of 16 high-pressure nozzles. Dropping below 4 nozzles may cause lines to over-pressurize and leak, while exceeding 16 nozzles will drop internal pressure, resulting in heavy, sputtering water drops instead of a clean micro-mist.

• Utility Line Starting Demands: The pump's integrated low-water safety shut-off switch demands a continuous, pressurized municipal water line source. Do not attempt to feed this system directly via a siphon, gravity tank, or unpressurized water barrel without a dedicated line booster pump.

• Winterization Drainage Protocol: Before long-term storage or ahead of sub-freezing temperatures, fully disconnect the 3/4" garden hose inlet and activate the auto-drain or clear the lines with compressed air to protect the internal 3-piston pump block from ice fractures inside the resin enclosure.
