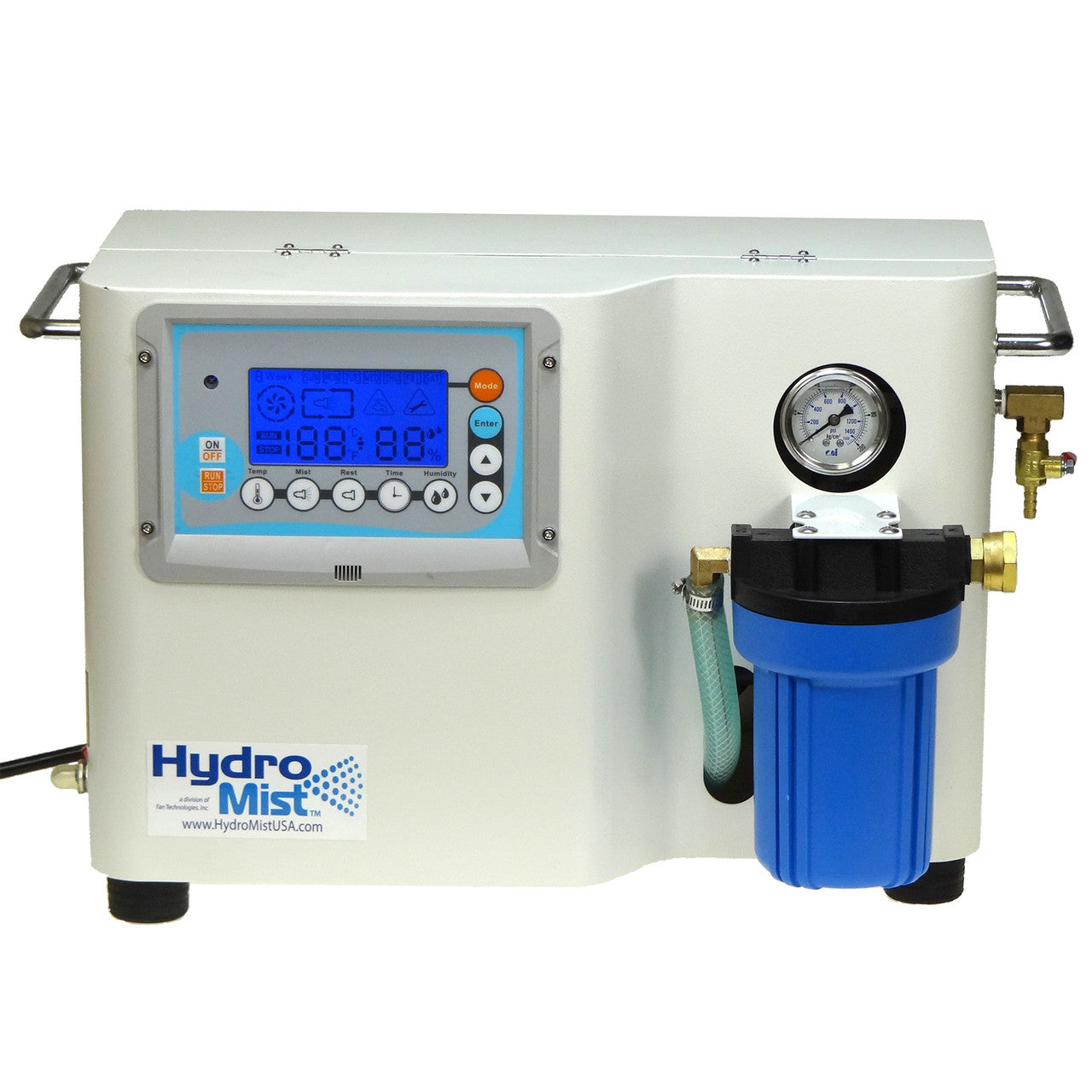

HydroMist USA ProMist 75 High-Pressure Commercial Mist Pump

Industrial-Class 1/2 HP Motor, 1000 PSI Continuous Atomization Engine, 32-Nozzle Commercial Cooling Core, Programmable Pulse-Timer Integration with Wireless Remote

Take complete control over large-scale outdoor climate suppression, restaurant patio conditioning, and facility dust control with the HydroMist USA ProMist 75 High Pressure Commercial Mist Pump. Expertly engineered as a heavy-duty mid-to-high capacity powerhouse, this professional-grade component converts standard residential or commercial utility water pressure into a powerful, ultra-fine cooling field. Driven by an energy-efficient 1/2 HP (0.5 Horsepower) induction motor, the ProMist 75 maintains a stable, continuous operational pressure ceiling of 1000 PSI to drive up to 32 independent misting nozzles simultaneously without experiencing system stuttering, line lagging, or drops in pressure.

By compressing water molecules under extreme mechanical force, the direct-drive pump atomizes water into microscopic droplets that instantly flash-evaporate upon contacting the open air current. This photo-thermal process strips heat out of the outdoor environment—lowering localized ambient temperatures by up to 25°F without leaving a wet residue on walkways, dining furniture, or expensive surrounding electronics. Lined inside a durable, weather-resistant structural shell that shields the core and dampens acoustics, the ProMist 75 delivers elite, enterprise-class cooling ideal for restaurants, athletic fields, large horse barns, dog kennels, and expansive backyard pool decks.

Key Product Features & Core Engineering

• 32-Nozzle Commercial Capacity Engine: Calibrated to distribute uniform, unhindered pressure across massive multi-fan layouts or expansive line configurations. The system smoothly drives up to 32 independent #2 misting nozzles ($0.008\text{" / }0.2\text{mm}$ orifice layout) for comprehensive facility coverage.

• Programmable Pulse-Timer Logic with Remote: Features a smart digital dashboard supporting multiple custom on/off misting cycles and a complete shutdown timer. This lets operators seamlessly adapt the system output to localized humidity changes via an included wireless remote control.

• Integrated Low-Water Automatic Safeguard: Outfitted with an intelligent low-pressure inlet safety sensor switch. The system automatically cuts operational power to the direct-drive core if the utility intake line goes dry, protecting internal mechanical seals from premature friction burn-out.

• Single-Stage Micron Filtration Array: Equipped with a high-capacity, pre-installed 5-inch / 5-micron active sediment water filter canister that catches micro-particles, rust flakes, and scale before they reach the manifold line, eliminating nozzle-clogging mineral buildup.

• Universal Water Line Adaptation: Designed with a standard heavy-duty swivel connection that fastens effortlessly to a traditional $3/4\text{"}$ outdoor garden hose faucet, alongside a $3/8\text{"}$ high-pressure quick-connect push-lock outlet port optimized for flexible nylon or rigid stainless steel mist lines.

Technical Specifications Summary

Comprehensive Box Inclusions

• 1 × HydroMist USA ProMist 75 1/2 HP Commercial High-Pressure Pump Unit

• 1 × Custom Fitted Weatherproof Protective Pump Equipment Cover

• 1 × Wireless Remote Control Key Fob (With Pre-Installed Battery Core)

• 1 × Pre-Installed 5-Inch / 5-Micron Active Sediment Filter Cartridge

• 1 × Integrated 3/8″ Push-Lock Quick-Connect High-Pressure Outlet Assembly

• 1 × Heavy-Gauge Grounded 120V AC Power Supply Safety Cable

• 1 × Master Step-by-Step System Installation Blueprint & Field Operation Manual

Critical Field Installation & Maintenance Guidelines

• Strict Nozzle Allocation Balancing: To hold the line at a true 1000 PSI ultra-fine atomization sweet spot, keep your total nozzle count balanced across your facility setup. Exceeding 32 nozzles will lower the internal line pressure, resulting in heavy, sputtering water drops that wet surrounding surfaces instead of creating a clean flash-evaporating micro-mist.

• Pressurized Utility Line Demands: The pump's integrated low-water safety shut-off matrix demands a continuous, pressurized municipal city water connection. Do not attempt to siphon water directly from unpressurized storage barrels or static gravity tanks without adding a dedicated line booster pump.

• Winterization Drainage Protocol: Before long-term seasonal storage or ahead of sub-freezing winter weather, fully disconnect the 3/4" garden hose inlet, unthread the 5-inch filter housing to empty the water log, and activate the auto-drain or clear the lines with compressed air to safeguard the internal direct-drive pump block from ice fractures.
